2016 Suzuki AN400AL6 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2016 Suzuki AN400AL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

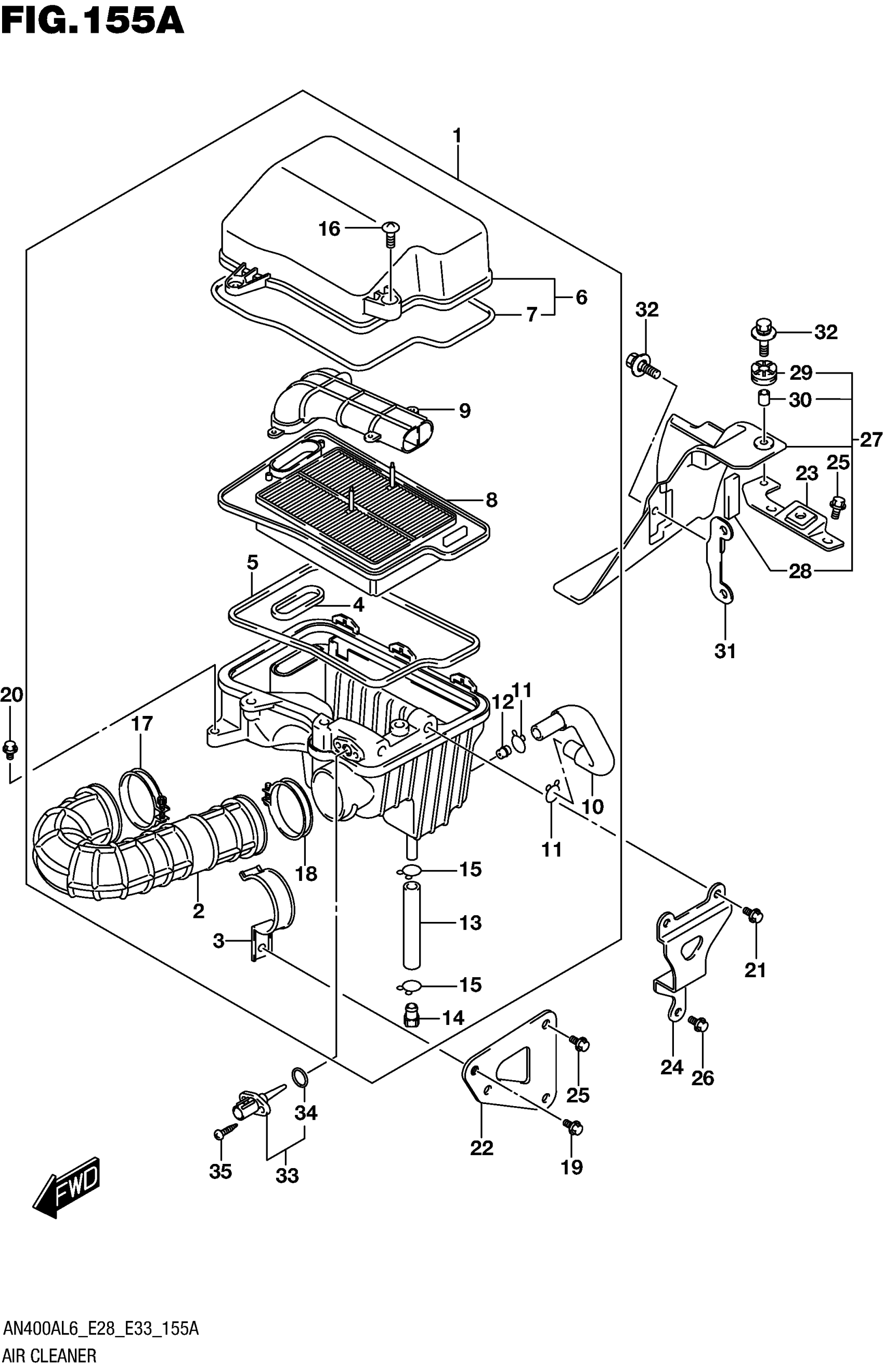

2016 Suzuki AN400AL6 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-05HA1

1
Out of stock

2

.TUBE, OUTLET

13881-05HA0

—
Out of stock

3

.BRACKET

13882-05HA0

—
Out of stock

4

.GASKET, FILTER

13747-05H01

1
Out of stock

5

.GASKET, CASE

13748-05H00

1
Out of stock

6

.CAP

13740-05H01

1
Out of stock

7

..GASKET, CAP

13746-05H01

1
Out of stock

8

.FILTER

13781-05H00

1
Out of stock

9

.TUBE, INLET

13891-05H00

1
Out of stock

10

TUBE,BREATHER This part replaces 13853-05H00.

13853-05H01

1
Out of stock

11

.CLIP

09401-15101

2
Out of stock

12

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

1
Out of stock

13

.TUBE, DRAIN

13871-05H00

—
Out of stock

14

.PLUG, DRAIN TUBE

13877-00190

1
Out of stock

15

.CLIP

09401-14301

2
Out of stock

16

.SCREW

02142-0616A

2
Out of stock

17

.CLAMP

13170-25D01

1

$7.45

In stock

18

.CLAMP

09402-58208

1
Out of stock

19

BOLT

01550-0612A

1
Out of stock

20

BOLT (6X30)

09116-06103

1
Out of stock

21

BOLT

01550-0612A

2
Out of stock

22

BRACKET, FRONT

13760-05H00

1
Out of stock

23

BRACKET, REAR

13760-05H20

1
Out of stock

24

BRACKET, LH

13760-05H10

1
Out of stock

25

BOLT

01547-0612A

4
Out of stock

26

BOLT

01550-0612A

2
Out of stock

27

COWLING, CYLINDER

17120-05H01

—
Out of stock

28

.CUSHION (75X20X10)

17128-05H00

—
Out of stock

29

.CUSHION

09320-10051

2
Out of stock

30

.SPACER (6.5X10X12)

09180-06290

2
Out of stock

31

BRACKET

17122-05H00

1
Out of stock

32

BOLT (6X25)

09118-06097

2
Out of stock

33

SENSOR, AIR TEMP

13650-14G10

1
Out of stock

34

.O RING

13655-14G10

1
Out of stock

35

SCREW

03511-0516A

2
Out of stock
