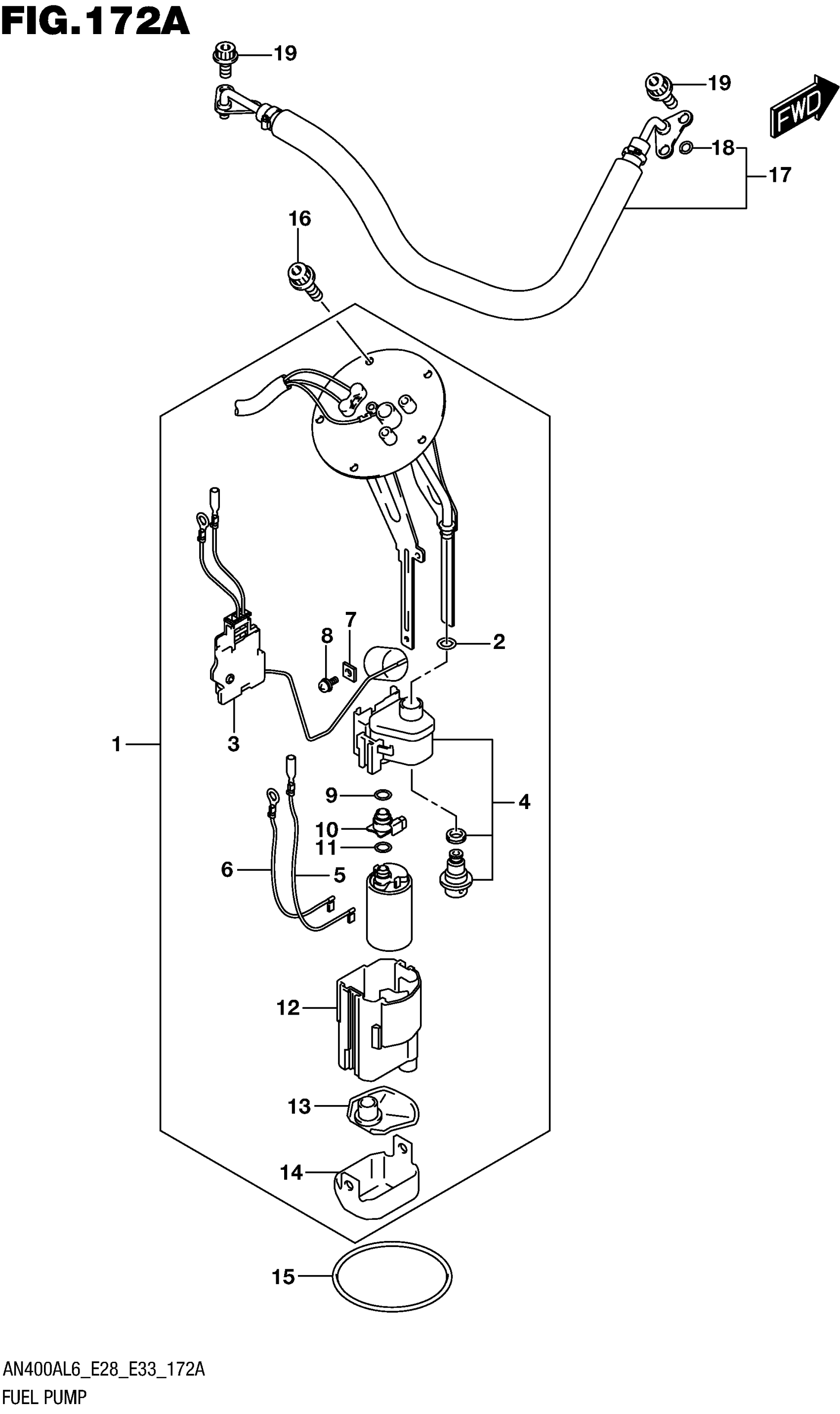

Suzuki AN400AL6 (2016) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-05H11

$331.84

2

.O RING

15113-35F00

$8.15

3

.GAUGE ASSY

34810-05H00

$244.85

4

.REGULATOR

15610-05H00

Unavailable

5

.WIRE, LEAD

15115-05H00

Unavailable

6

.WIRE, EARTH

15114-05H00

Unavailable

7

.STOPPER

15117-05H00

$8.52

8

.SCREW

15116-10F00

$6.30

9

.O RING

15113-05H00

$18.81

10

.JOINT

15112-05H00

$31.73

11

.O RING

15113-05H00

$18.81

12

.CUP

15111-18H00

$47.88

13

.STRAINER

15420-05H00

$37.68

14

.CAP

15426-05H00

$20.78

15

O-RING

15201-35F00

$25.27

16

BOLT

07120-0612A

$2.50

17

HOSE, FUEL

15810-05H10

$181.08

18

.O RING

15817-39H00

$3.62

19

BOLT

07130-0610A

Unavailable
