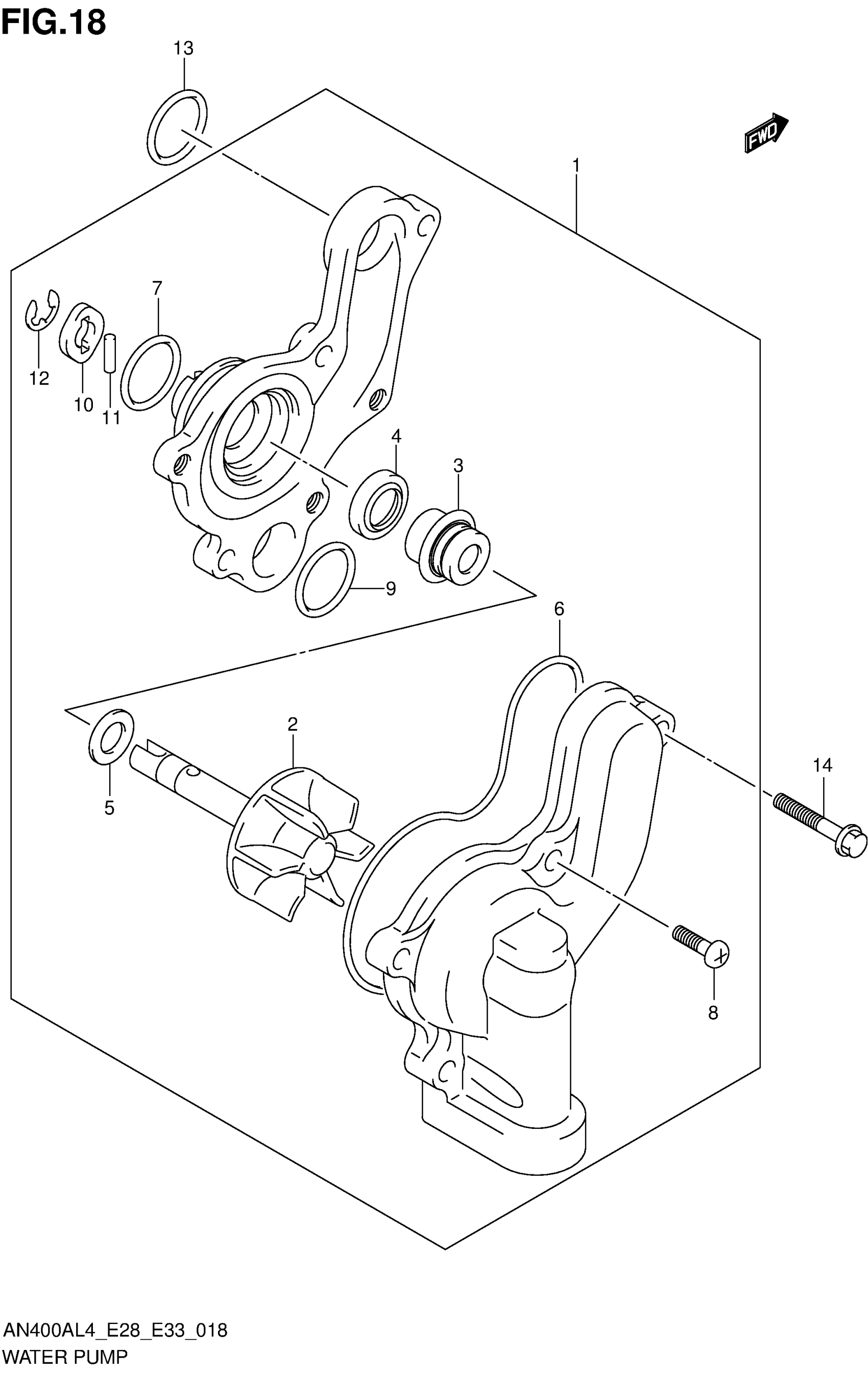

Suzuki AN400AL4 (2014) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-05H00.

17400-05H01

$215.95

2

IMPELLER

17491-05H00

$53.37

3

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

4

.SEAL,OIL (10X21X5)

17461-48G00

$13.23

5

WASHER

17432-07G00

$2.60

6

O RING

17418-05H00

$19.57

7

.O-RING

17435-33400

$15.29

8

SCREW

02112-0616A

$1.49

9

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

10

CAP

17481-05H00

Unavailable

11

PIN

17482-03G00

$2.63

12

E RING

17483-05H00

Unavailable

13

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

14

BOLT

01547-0635A

$2.30
