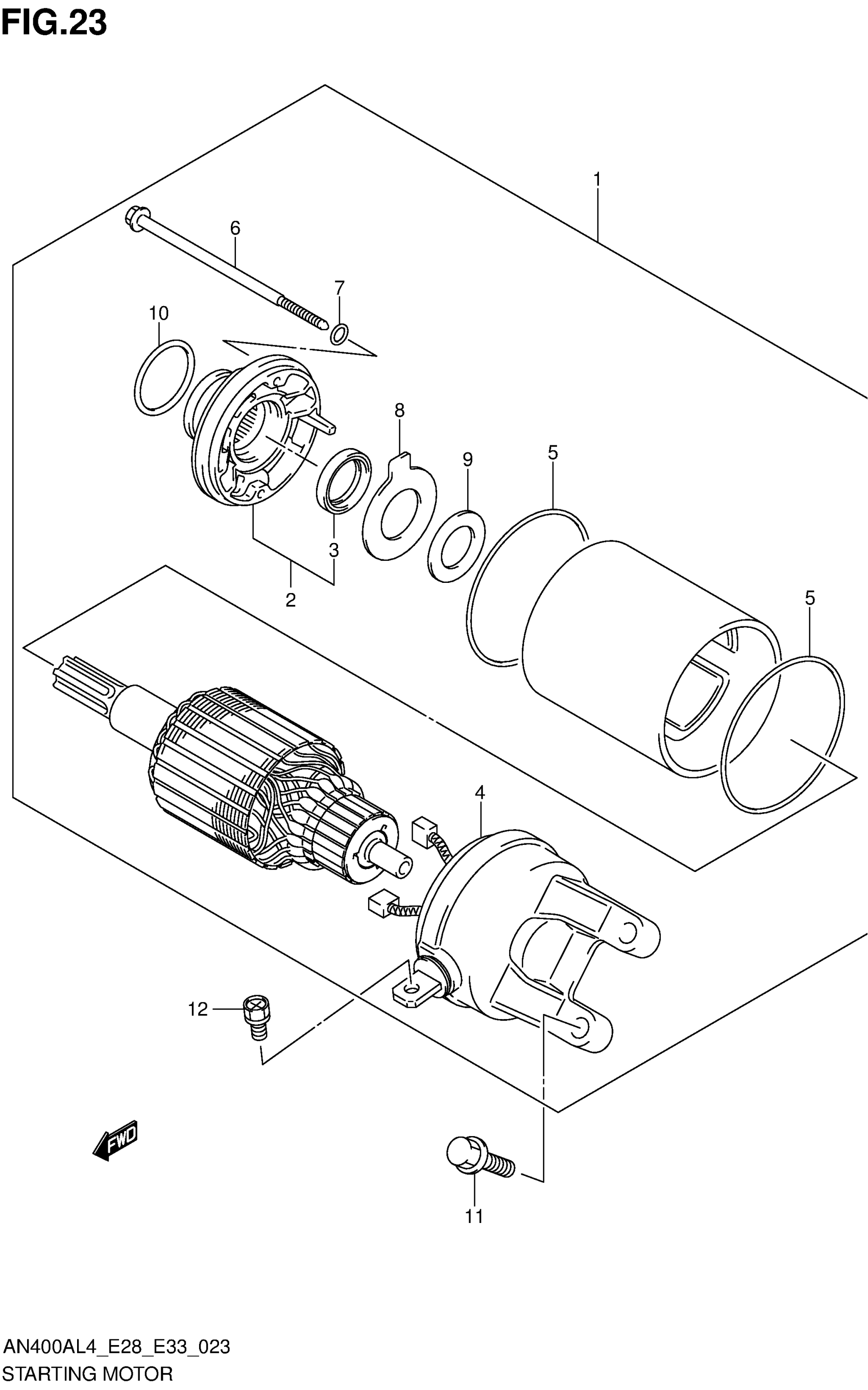

Suzuki AN400AL4 (2014) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING

31100-06H01

$958.23

2

BRACKET

31150-06H00

Unavailable

3

OIL SEAL

31153-06H00

Unavailable

4

FRAME ASSY, COMMUTATOR, END

31175-14F00

Unavailable

5

O RING

31264-32C10

$16.03

6

BOLT

31281-08F00

Unavailable

7

O RING

31156-08F00

$5.10

8

PLATE, LOCK

31361-32C10

Unavailable

9

SHIM

31361-38300

Unavailable

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

11

BOLT

01547-0620A

$2.01

12

SCREW (5X8)

09137-05004

$2.50
