2014 Suzuki AN400AL4 Front Combination Lamp Diagram

← All diagrams

Find the part on the Front Combination Lamp diagram for your 2014 Suzuki AN400AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

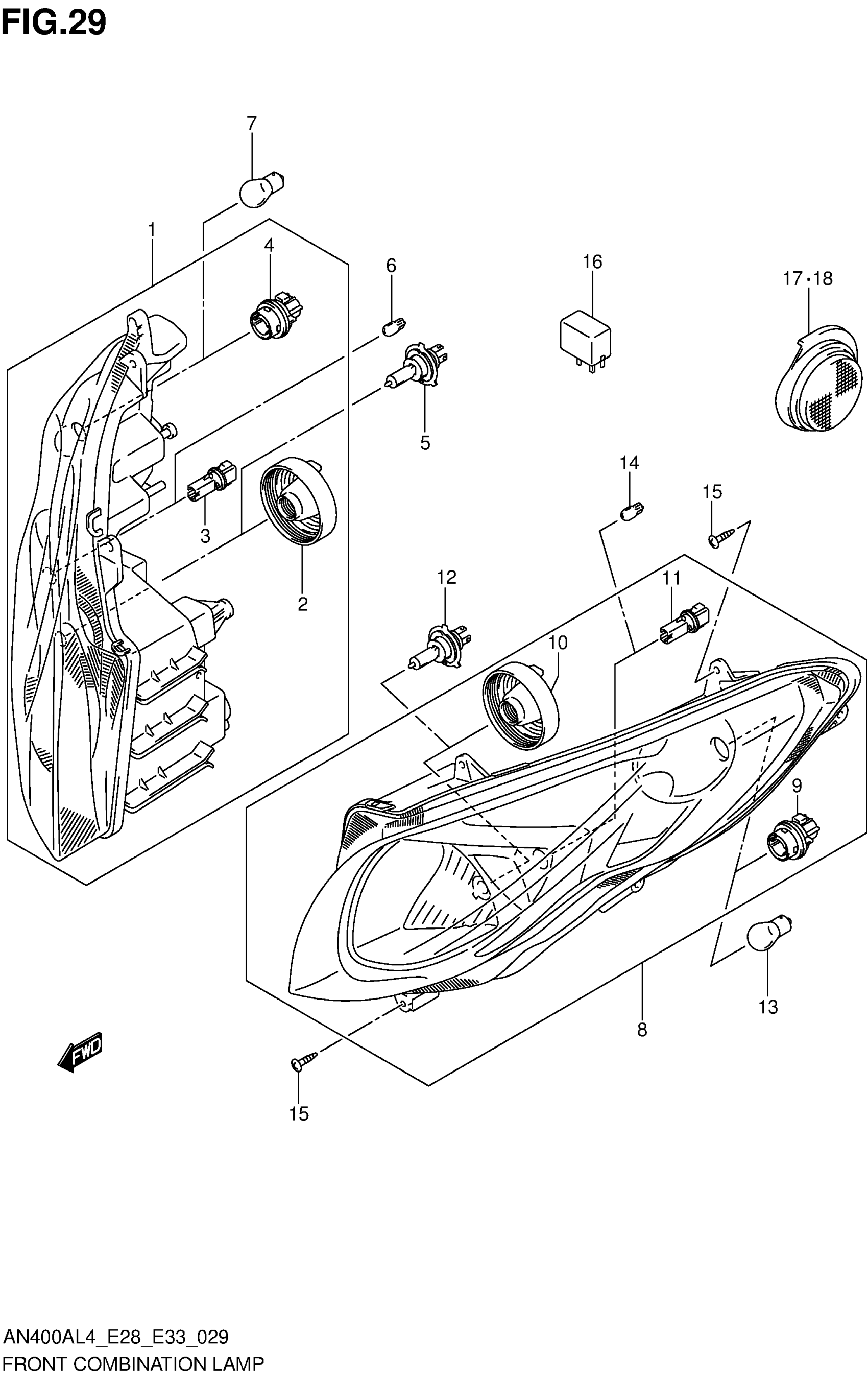

2014 Suzuki AN400AL4 Front Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FRONT COMBINATION RH

35100-05HB0-999

1
Out of stock

2

COVER, SOCKET

35179-64G00

1
Out of stock

3

SOCKET, POSITION LAMP | FOR POSITION

35118-76F00

1
Out of stock

4

SOCKET | FOR TURN

36118-60G00

1
Out of stock

5

BULB (12V,60/55W)

09471-12182

1
Out of stock

6

.BULB (12V5W) | FOR POSITION

09471-12216

1
Out of stock

7

BULB (12V27/8W) | FOR TURN

09471-12152

1
Out of stock

8

LAMP ASSY, FRONT COMBINATION LH

35300-05HB0-999

1
Out of stock

9

SOCKET | FOR TURN

36118-60G00

1
Out of stock

10

COVER, SOCKET

35179-64G00

1
Out of stock

11

SOCKET, POSITION LAMP | FOR POSITION

35118-76F00

1
Out of stock

12

BULB (12V,60/55W)

09471-12182

1
Out of stock

13

BULB (12V27/8W) | FOR TURN

09471-12152

1
Out of stock

14

.BULB (12V5W) | FOR POSITION

09471-12216

1
Out of stock

15

SCREW

03541-0516A

10
Out of stock

16

RELAY ASSY,TURN This part replaces 38610-05H00.

38610-05H01

1
Out of stock

17

REFLEX REFLECTOR, FR RH

35951-05H00

1
Out of stock

18

REFLEX REFLECTOR, FR LH

35952-05H00

1
Out of stock
