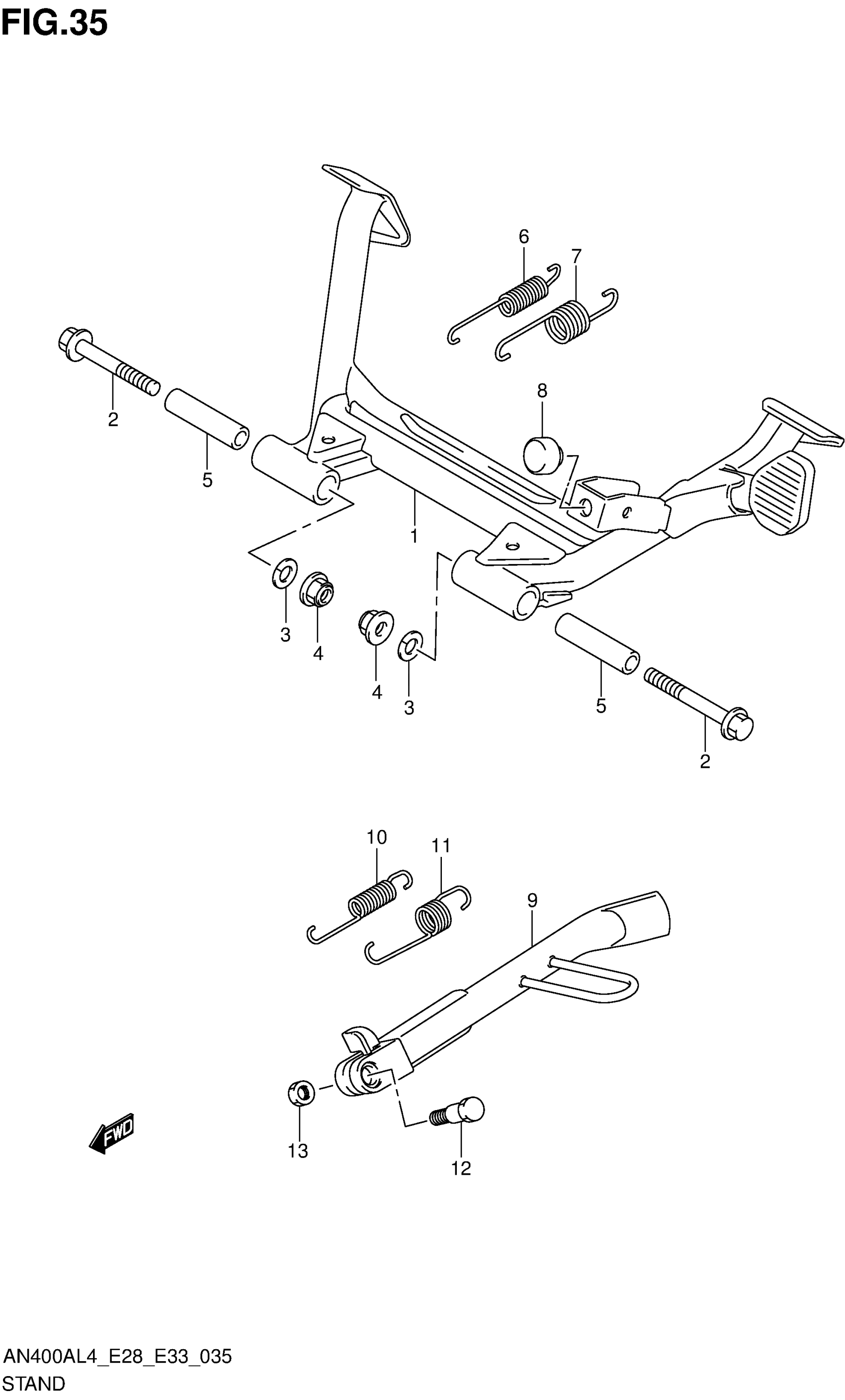

Suzuki AN400AL4 (2014) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-05H01

$268.15

2

BOLT (10X85)

09103-10707

$4.63

3

LOCK WASHER

08321-0110A

$1.84

4

NUT

08319-3110A

$2.73

5

SPACER,CENTER STAND PIVOT This part replaces 09180-10160.

09180-10165

$13.40

6

SPRING

09443-14076

Unavailable

7

SPRING

09443-22019

Unavailable

8

CUSHION

09321-10001

$2.61

9

STAND, PROP

42310-05H01

Unavailable

10

SPRING

09443-14069

$6.06

11

SPRING

09443-19012

$5.89

12

BOLT (10X34)

09111-10027

$3.37

13

NUT

09159-10097

$5.66
