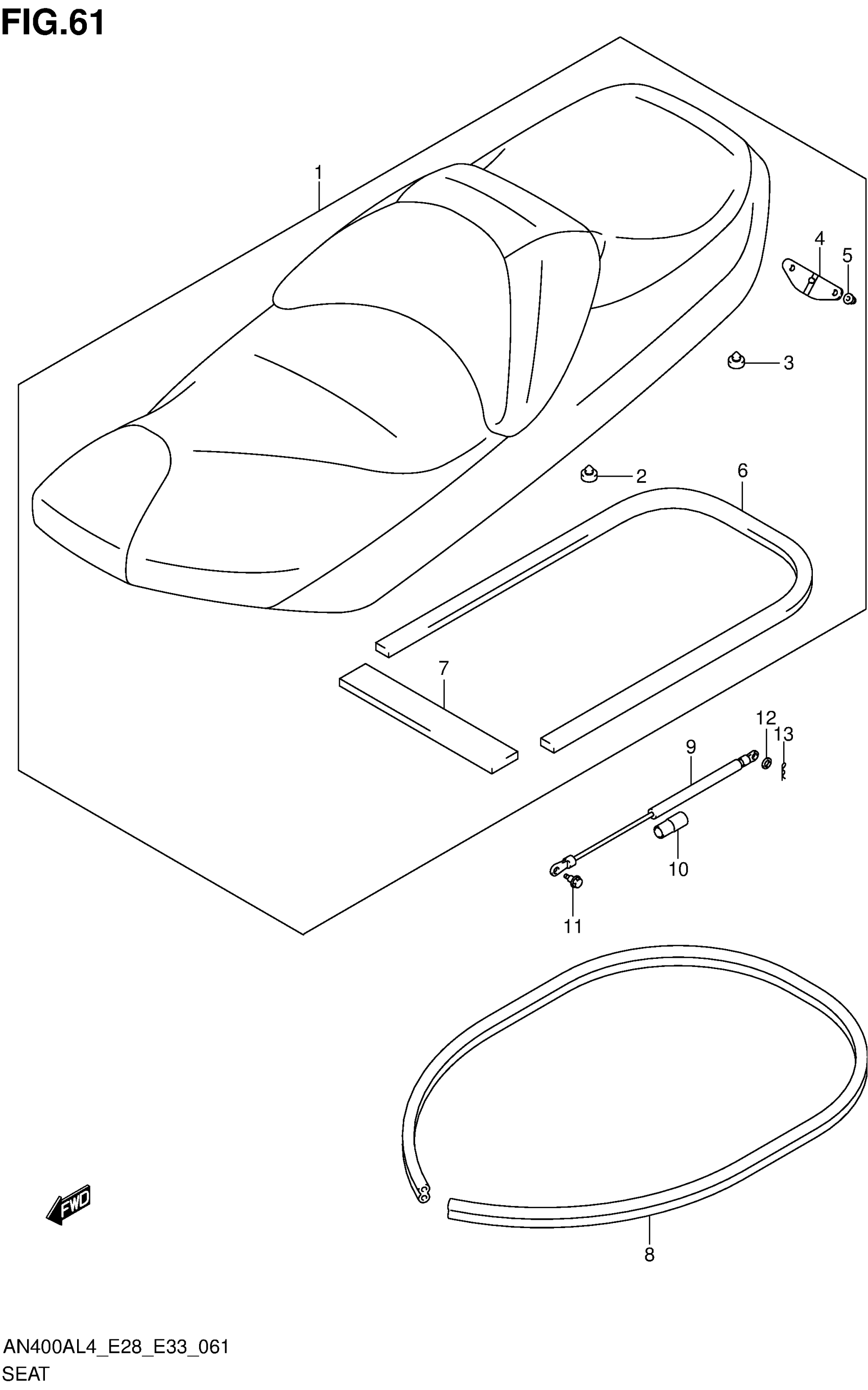

Suzuki AN400AL4 (2014) SEAT (AN400ZAL4 E28) Diagram

Description

Price

SEAT ASSY (BLACK)

45100-05H21-AKZ

Unavailable

CUSHION

09321-10011

$2.91

CUSHION This part replaces 45148-16700.

09321-10002

$2.22

STRIKER, SEAT LOCK

45210-05H03

$27.85

NUT

08313-2006A

$1.97

CUSHION, SEAT

45148-05H10

Unavailable

CUSHION, SEAT

45149-05H10

Unavailable

MOLDING, SEAT

45211-05H00

Unavailable

DAMPER ASSY, SEAT

45270-05H01

$124.58

HOSE (13.5X16.5X600) | L:600->40

09352-13162-600

$24.87

BOLT (6X16)

09111-06071

$4.90

WASHER

08322-0108A

$1.92

09385-08003

$1.72

Suzuki AN400AL4 (2014) SEAT (AN400ZAL4 E28) Diagram

SEAT ASSY (BLACK)

CUSHION

CUSHION This part replaces 45148-16700.

STRIKER, SEAT LOCK

NUT

CUSHION, SEAT

CUSHION, SEAT

MOLDING, SEAT

DAMPER ASSY, SEAT

HOSE (13.5X16.5X600) | L:600->40

BOLT (6X16)

WASHER

PIN
