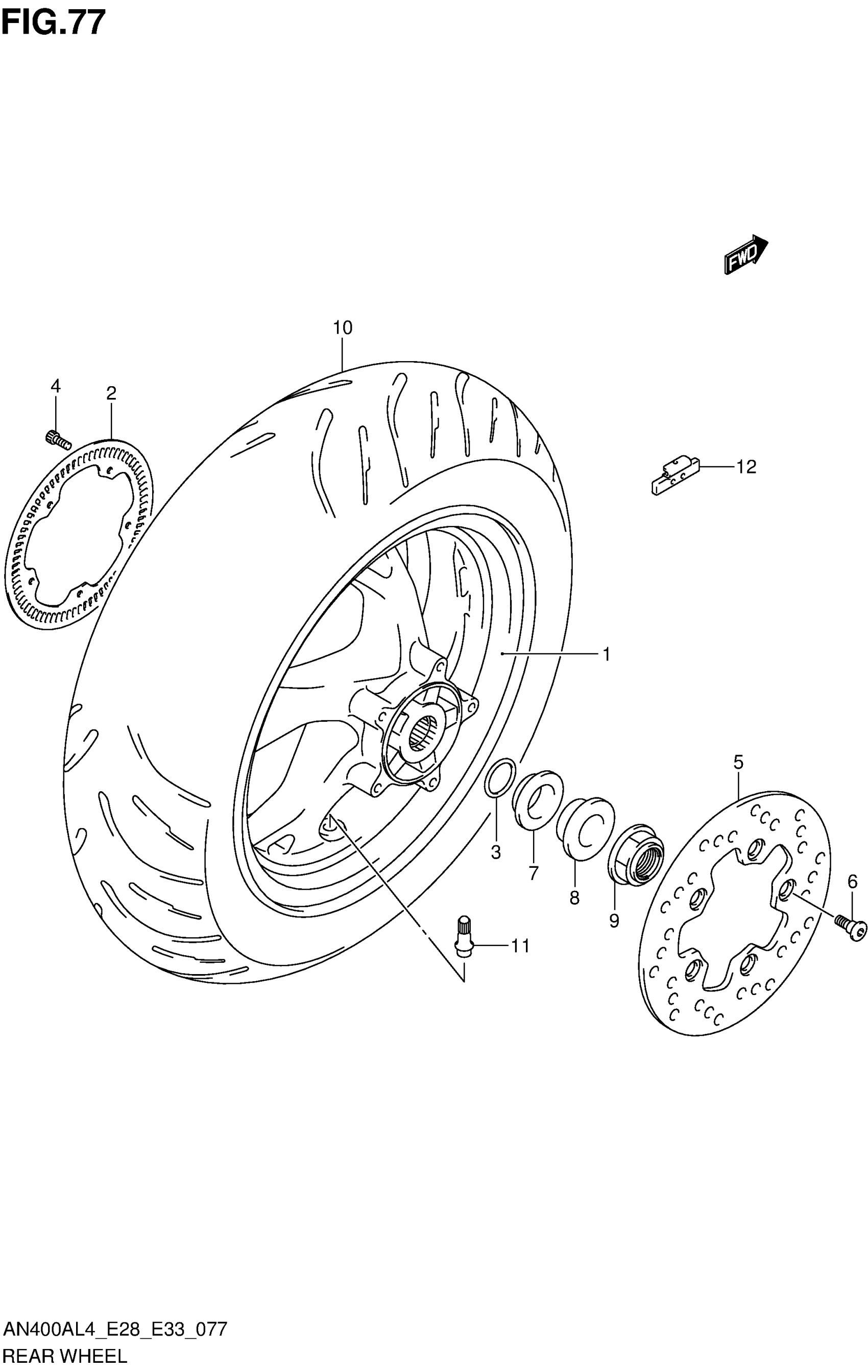

Suzuki AN400AL4 (2014) REAR WHEEL (AN400ZAL4 E28) Diagram

#

Description

Price

1

WHEEL, REAR (13M/CXMT4.00) (SILVER)

64110-05H10-YMY

Unavailable

2

RING,SPEED SENSOR RR (72T)

64162-05H00

$35.32

3

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

4

BOLT

07130-0512A

$2.19

5

DISC,REAR BRAKE

69211-05H00

$205.55

6

BOLT (8X21)

09106-08160

$3.57

7

SPACER,REAR AXLE INNER

64741-05H00

Unavailable

8

SPACER,REAR AXLE OUTER

64751-05H00

Unavailable

9

NUT

09159-20014

$37.47

10

TIRE, REAR (150/70 13M/C 64S)

65110-05H00

$307.90

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

12

BALANCER, WHEEL NO.1 | 10G

43222-73H20

Unavailable

12

BALANCER, WHEEL NO.2 | 20G

43224-73H20

Unavailable

12

BALANCER, WHEEL NO.3 | 30G

43226-73H20

Unavailable
