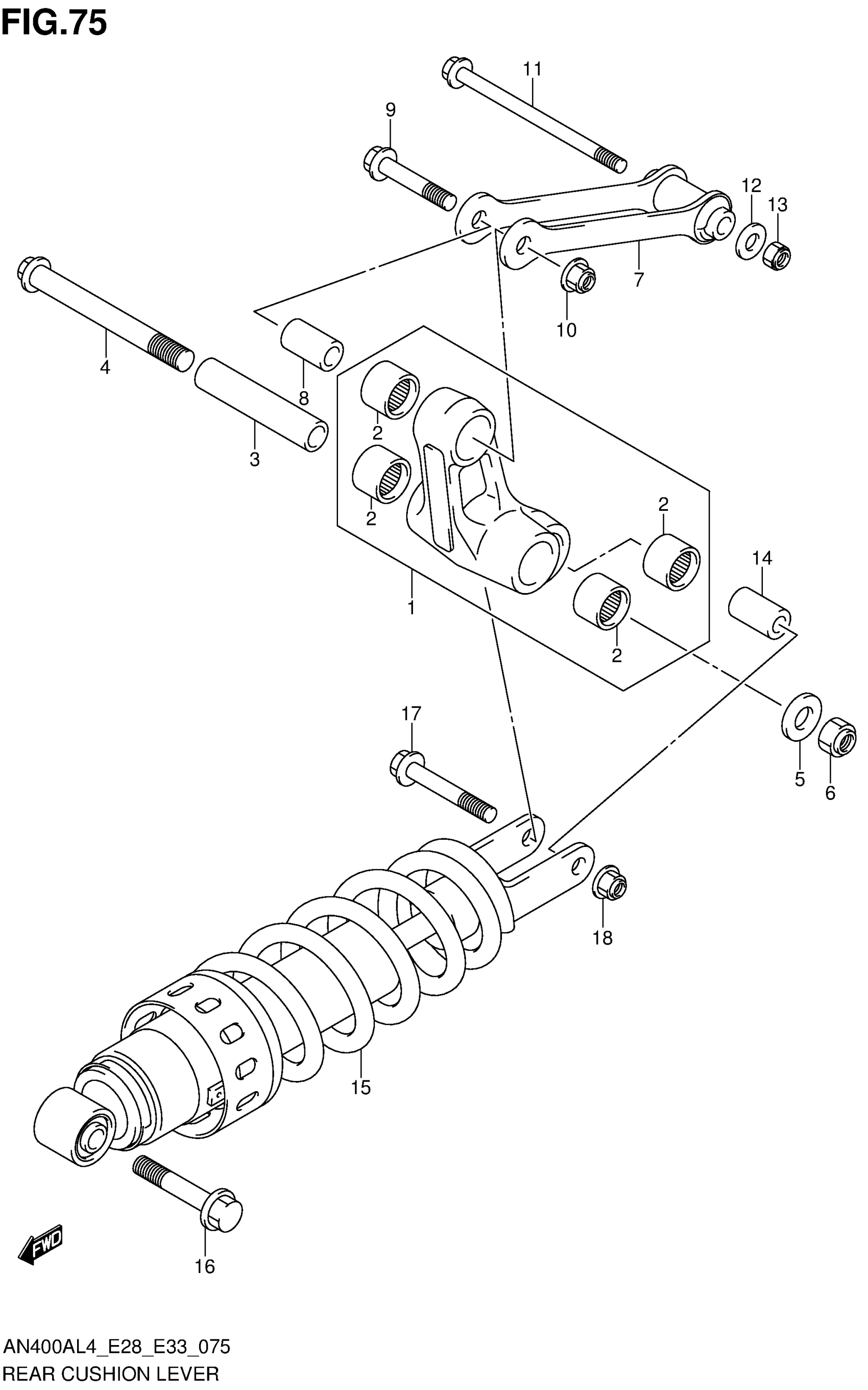

Suzuki AN400AL4 (2014) REAR CUSHION LEVER (AN400ZAL4 E28) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62601-05820

Unavailable

2

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

3

SPACER, REAR CUSHION LEVER

62646-08G00

$36.78

4

BOLT,RR CUSHION ROD (12X111)

62621-19D00

$19.15

5

WASHER (12X25X4)

09160-12080

$4.80

6

NUT

08319-2112A

$3.76

7

ROD,RR CUSHION LEVER

62640-14F30

Unavailable

8

SPACER, REAR CUSHION ROD

62684-40A10

$12.15

9

BOLT (10X54)

09103-10101

$4.00

10

NUT

08319-3110A

$2.73

11

BOLT (10X132)

09103-10198

Unavailable

12

WASHER (10.5X22X2.3)

09160-10039

$2.26

13

NUT

09159-10027

$3.10

14

SPACER, REAR CUSHION LEVER

62684-40A10

$12.15

15

ABSORBER ASSY, REAR SHOCK

62100-05H10

Unavailable

16

BOLT (10X48)

09103-10126

$4.50

17

BOLT (10X55)

09103-10143

$4.52

18

NUT

08319-3110A

$2.73
