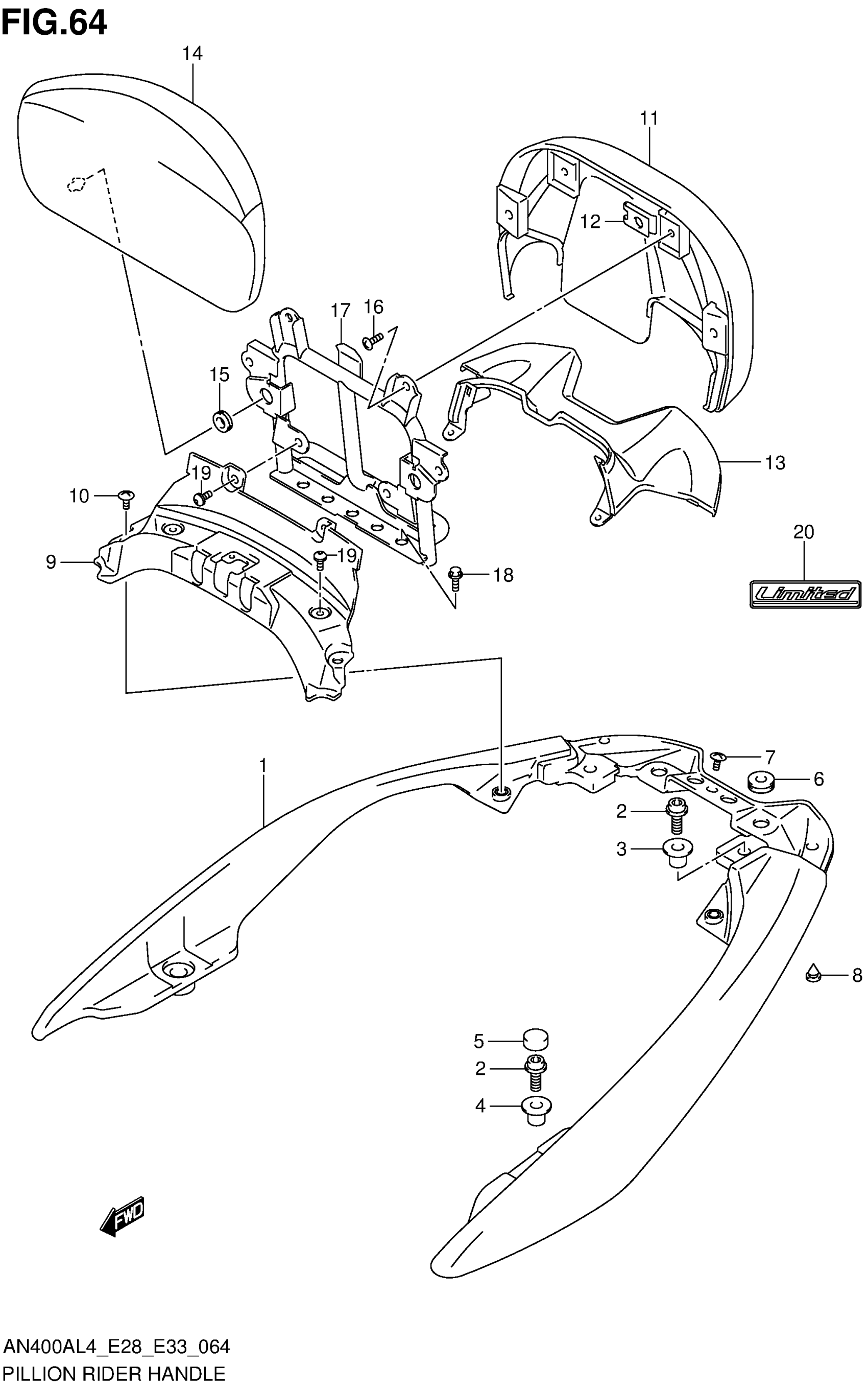

Suzuki AN400AL4 (2014) PILLION RIDER HANDLE (AN400ZAL4 E28) Diagram

#

Description
Price

1

HANDLE, PILLION RIDER (BLACK)

46210-05H03-YVB

$661.77

2

BOLT (8X25)

09106-08151

$3.70

3

WASHER

09169-08049

$4.11

4

WASHER

09169-08049

$4.11

5

CAP, FRONT

46271-14G00

$7.53

6

CUSHION

09320-08028

$3.04

7

SCREW (6X16)

09139-06168

$2.62

8

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

9

COVER, BACKREST FR (BLACK)

46215-05H50-291

Unavailable

10

SCREW (6X16)

09139-06168

$2.62

11

COVER, BACKREST REAR (BLACK)

46216-05H50-291

Unavailable

12

NUT

09148-06018

$3.16

13

COVER, BACKREST REAR LOWER (BLACK)

46217-05H50-YVB

Unavailable

14

BACKREST ASSY, PILLION RIDER (BLACK)

46220-05H60-AKZ

Unavailable

15

CUSHION

09320-08049

$3.26

16

SCREW

02142-0612B

$2.05

17

BRACKET, PILLION BACKREST

46250-05H50

Unavailable

18

BOLT (8X20)

09106-08161

$3.70

19

CLIP (BLACK)

09409-06314-5PK

$2.78

20

EMBLEM, LIMITED (SILVER)

68135-14FA0-YCR

Unavailable
