Description

Price

1

HANDLEBAR

56111-05H00

$151.97

2

COVER, HANDLE FRONT (BLACK)

56311-05H01-291

Unavailable

3

EMBLEM

68281-15F50

$39.52

4

COVER, HANDLE REAR (BLACK)

56321-05H01-291

Unavailable

5

CLIP (BLACK)

09409-06314-5PK

$2.78

6

BALANCER SET,HN This part replaces 56200-16821.

56200-16823

$32.93

7

SCREW

02122-0660B

$3.04

8

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

9

WASHER (6.5X16X4)

09160-06131

$2.50

10

NUT, BALANCER

56273-10G10

$8.65

11

MIRROR ASSY,RR This part replaces 56500-03FD0.

56500-03FD1

$163.40

12

MIRROR ASSY,REA This part replaces 56600-03FD0.

56600-03FD1

$180.80

13

CABLE ASSY, THROTTLE NO.1

58300-05H80

$66.50

14

CABLE ASSY, THROTTLE NO.2

58300-05H70

$57.72

15

SCREW (5X8)

09125-05073

$2.38

16

CLAMP (L:190)

09407-19401

$3.05

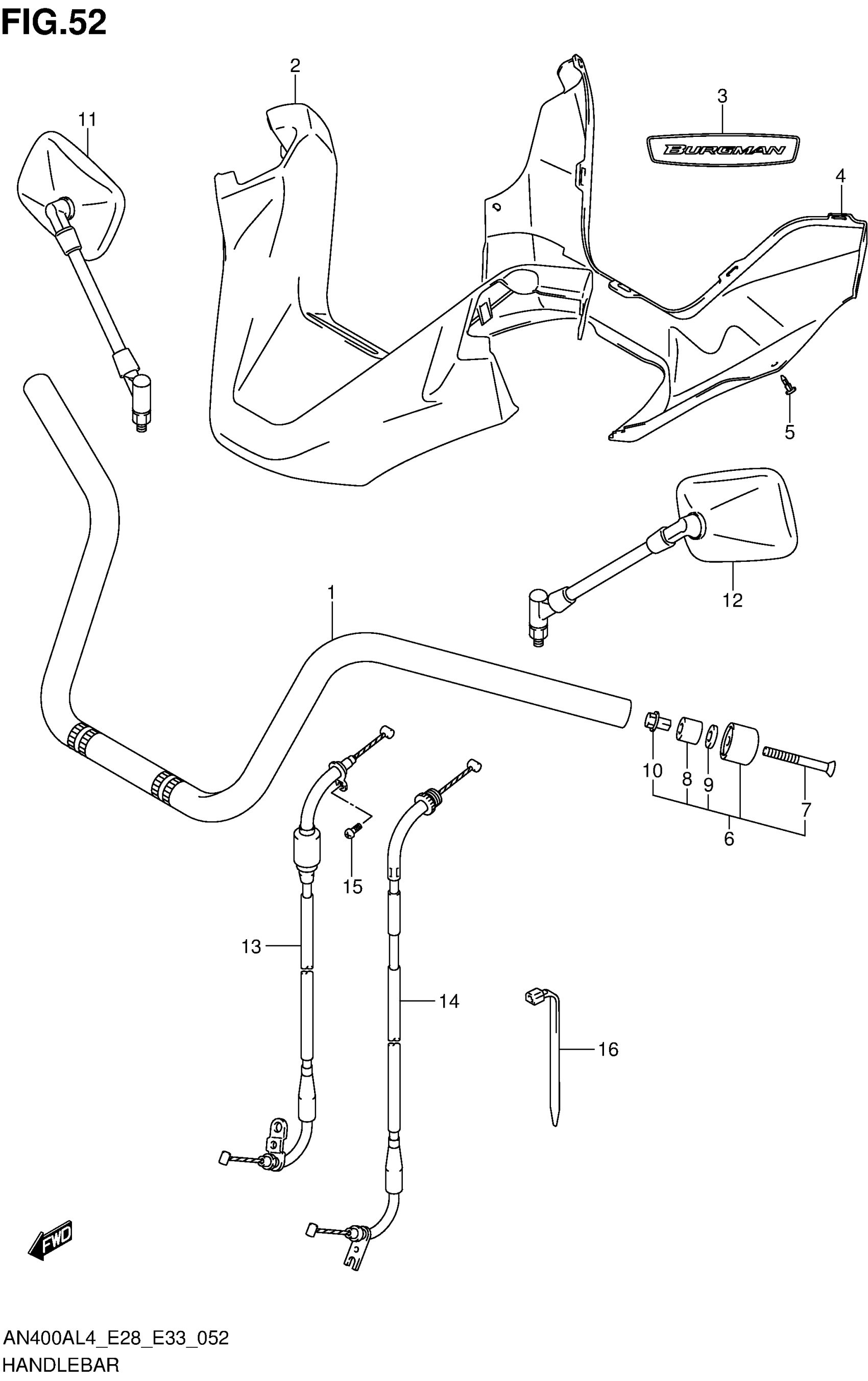

Suzuki AN400AL4 (2014) HANDLEBAR (AN400AL4 E33) Diagram
