Partiron

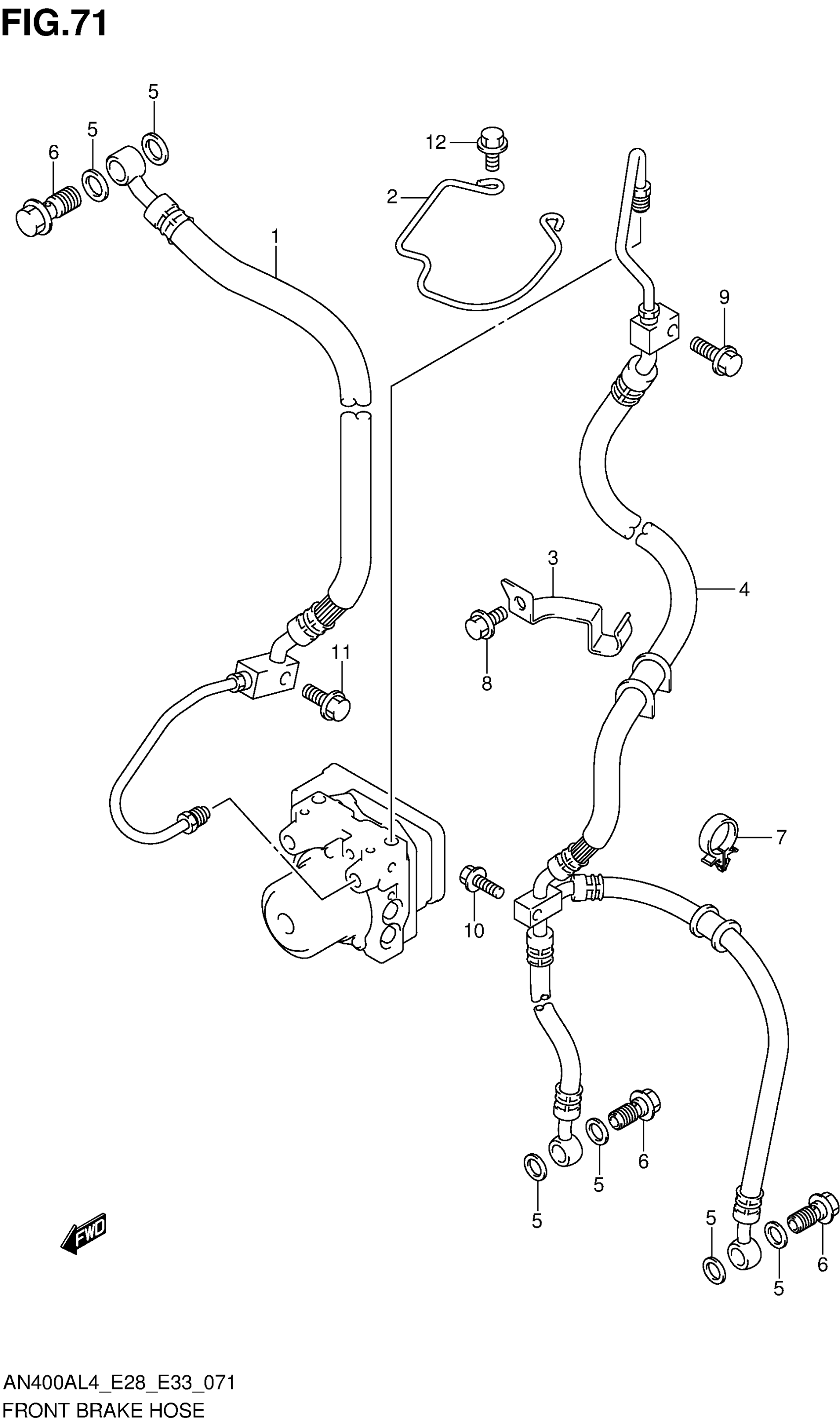

Suzuki AN400AL4 (2014) FRONT BRAKE HOSE Diagram

#

Description
Price

1

HOSE ASSY, FR BRAKE NO.1

59200-05H00

$94.00

2

GUIDE, BRAKE HOSE

59251-05H10

Unavailable

3

CLAMP, FR BRAKE HOSE NO.1

59266-05H00

Unavailable

4

HOSE ASSY, FR BRAKE NO.2

59400-05H00

$265.65

5

WASHER (10X15X1.5)

09161-10009

$1.84

6

UNION

09360-10062

$6.43

7

CLAMP

09403-16412

$3.37

8

BOLT

01547-0612A

$2.03

9

BOLT

01547-0616A

$2.03

10

BOLT

01547-0625A

$2.01

11

BOLT

01547-0655A

$2.42

12

BOLT

01550-0612A

$1.97
