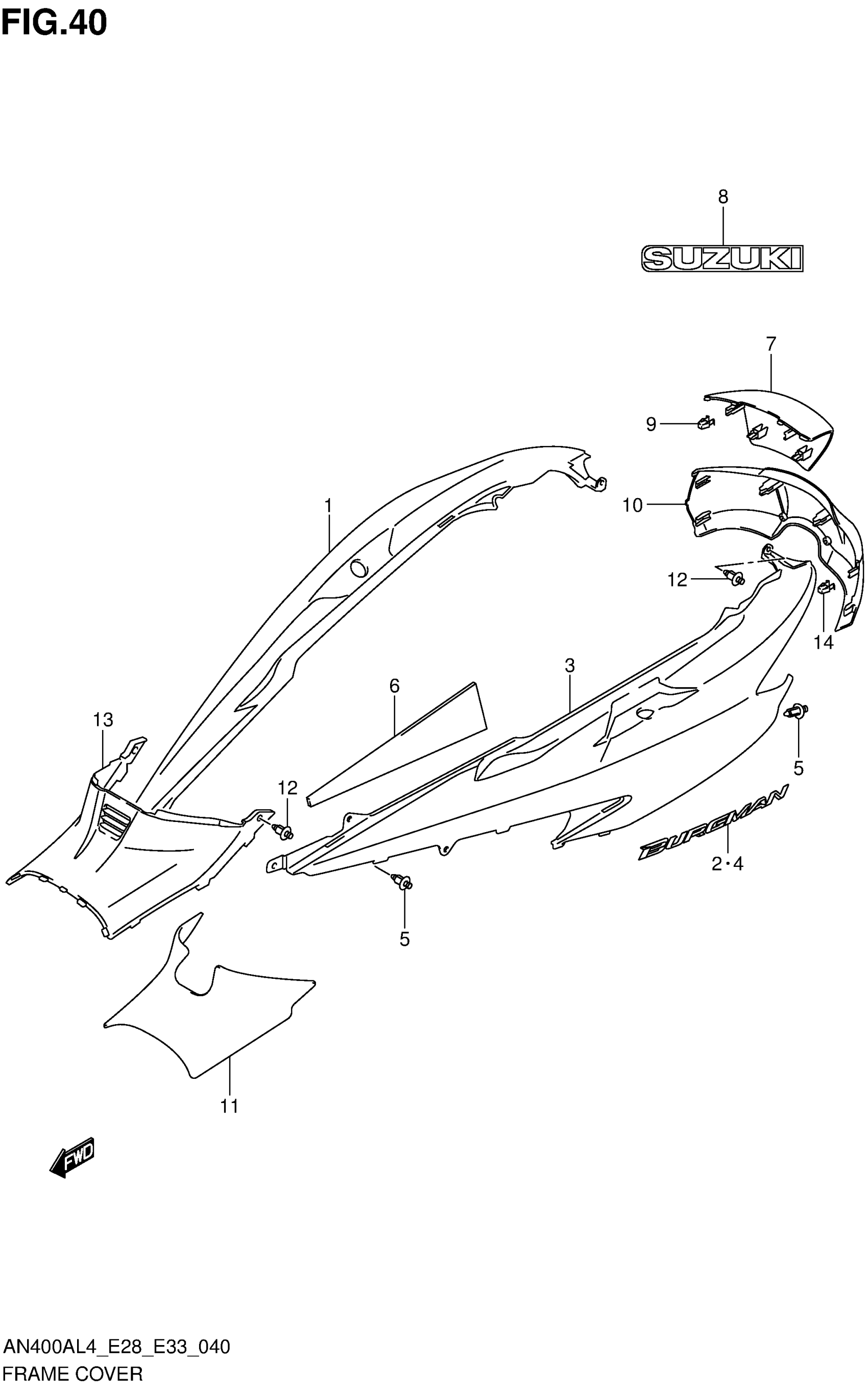

Suzuki AN400AL4 (2014) FRAME COVER (AN400ZAL4 E28) Diagram

#

Description

Price

1

COVER, FRAME RH (BLACK)

47111-05H00-YVB

$328.52

2

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

3

COVER,FRAME,L(B This part replaces 47211-05H00-YVB.

47211-05H01-YVB

$258.55

4

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

5

CLIP (BLACK)

09409-08308-5ES

$1.97

6

CUSHION, FRAME COVER

47162-05H00

Unavailable

7

COVER, FRAME CENTER (BLACK)

47311-05H00-YVB

$157.38

8

EMBLEM,SUZUKI This part replaces 68131-05H50-YES.

68131-05H51-YES

$8.13

9

CLIP

09409-08326

$2.48

10

COVER, FRAME LOWER (BLACK)

47321-05H00-YVB

Unavailable

11

CUSHION, FRONT

47161-05H00

Unavailable

12

CLIP (BLACK)

09409-08308-5ES

$1.97

13

COVER, FRAME FRONT (BLACK)

47351-05H01-291

Unavailable

14

CLIP

09409-08326

$2.48
