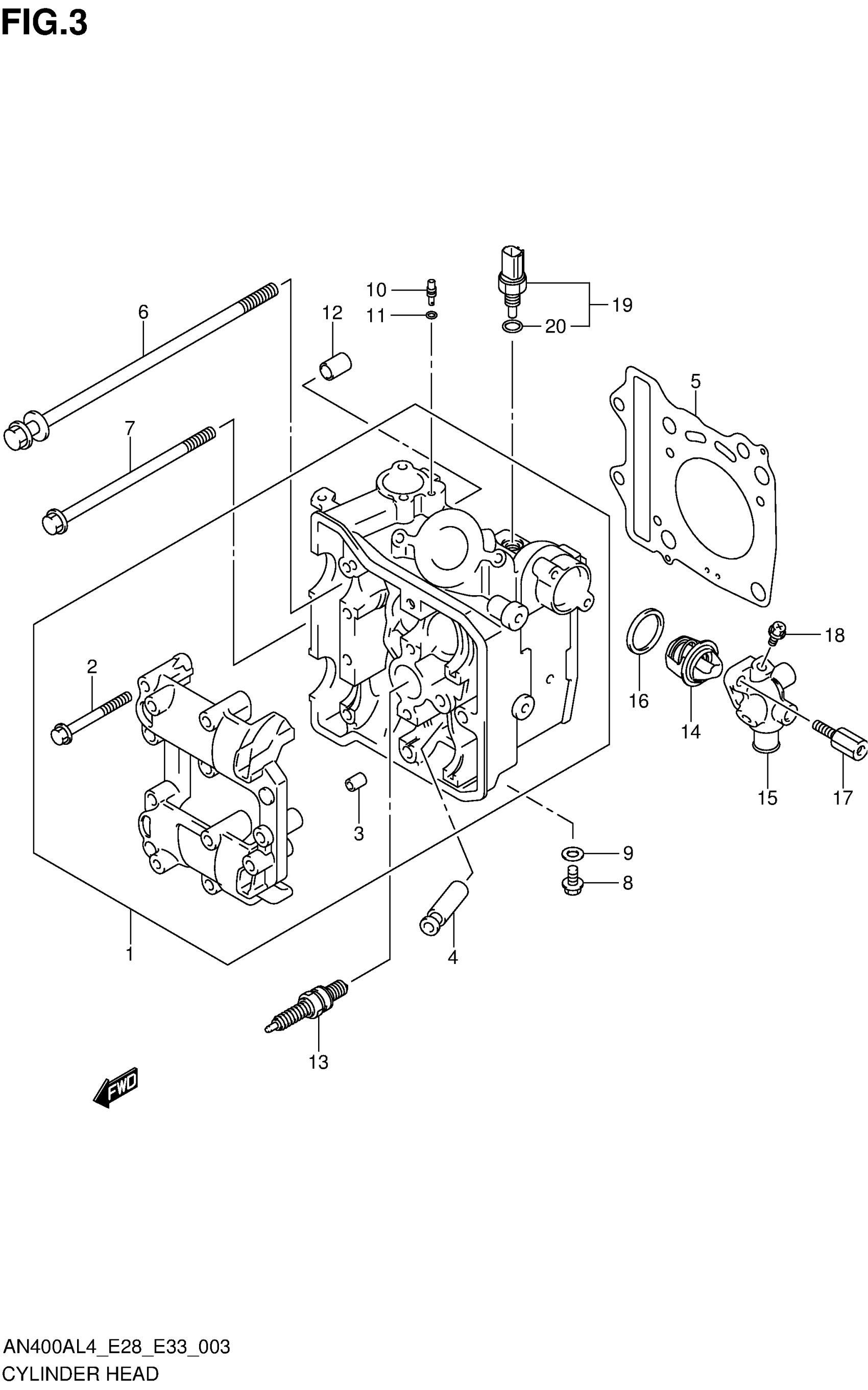

Suzuki AN400AL4 (2014) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLIN This part replaces 11100-05H00.

11100-05H01

$801.40

2

BOLT (6X45)

09103-06165

$3.03

3

PIN (8X11)

09206-08001

$1.78

4

GUIDE,VALVE (OS:0.3) | OPT

11115-32C71

Unavailable

5

.GASKET,CYLINDER HEAD This part replaces 11141-05H00.

11141-19K00

$35.37

6

BOLT (8X130)

09103-08086

Unavailable

7

BOLT (10X190)

11117-05H00

$15.67

8

BOLT (6X12)

09103-06222

$2.26

9

GASKET (5.8X13X1.2)

09168-06023

$2.35

10

JET(8)

09493-80005

$16.25

11

O RING (D:1.2,ID:4)

09280-04004

$1.91

12

PIN

04211-13189

$2.19

13

SPARK PLUG (CR7E) | NGK

09482-00516

$6.47

13

SPARK PLUG (U22ESR-N) | DENSO

09482-00515

$5.97

13

SPARK PLUG (CR8E) | OPT NGK

09482-00456

$6.73

13

SPARK PLUG (U24ESR-N) | OPT DENSO

09482-00457

$6.09

13

PLUG SPARK (CR9E) | OPT NGK

09482-00458

$6.47

13

SPARK PLUG (U27ESR-N) | OPT DENSO

09482-00459

$6.09

14

THERMOSTAT,WATE This part replaces 17670-08D20.

17670-08D21

$41.83

15

COVER, THERMOSTAT

17661-05H00

$40.55

16

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

17

BOLT

17667-21F00

Unavailable

18

BOLT, AIR RELEASE

17568-50F00

$4.76

19

SENSOR, WATER TEMP

13650-14G00

$52.02

20

.O RING

13655-14G00

$9.55
