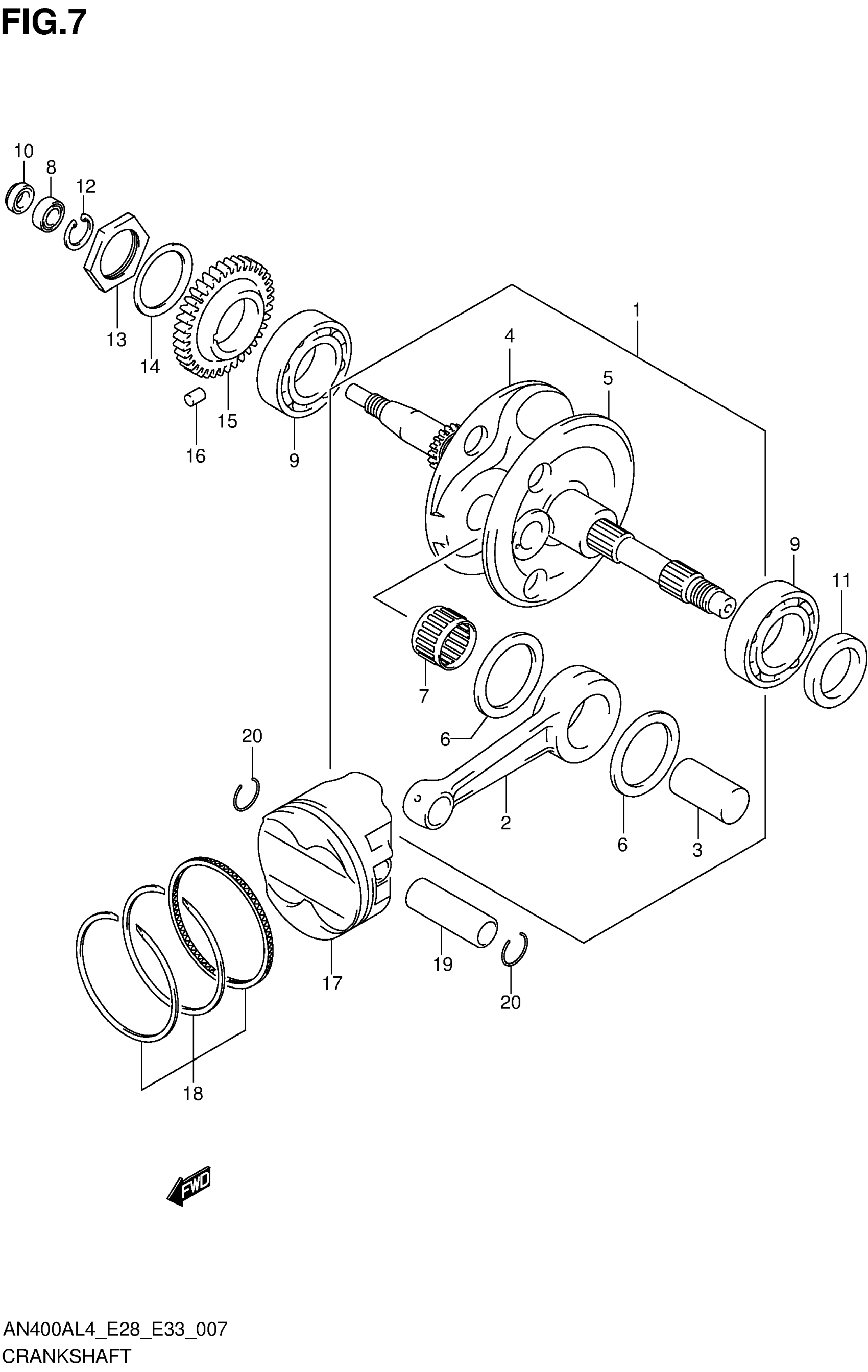

Find the part on the Crankshaft diagram for your 2014 Suzuki AN400AL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki AN400AL4 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-05H10

1
Out of stock

2

CONNROD

12161-05H10

1
Out of stock

3

PIN, CRANK

12210-15F10

1
Out of stock

4

CRANKSHAFT RH

12220-05H00

1
Out of stock

5

CRANKSHAFT LH

12260-05H00

1
Out of stock

6

WASHER (35X55X1)

09160-35005

2
Out of stock

7

BEARING (35X45X22)

09263-35034

1
Out of stock

8

BEARING (12X32X10)

09262-12016

1
Out of stock

9

BEARING (35X72X17)

09262-35038

2
Out of stock

10

OIL SEAL (12X29X6)

09282-12011

1
Out of stock

11

OIL SEAL (34X52X6)

09283-34011

1
Out of stock

12

CIRCLIP

08331-41329

1
Out of stock

13

NUT

12664-24B01

1
Out of stock

14

WASHER

09164-35002

1
Out of stock

15

GEAR, CRANK BALANCER DRIVE (NT:40)

12661-05H00

1
Out of stock

16

PIN (5X8)

09261-05005

1
Out of stock

17

PISTON

12111-05H10-0F0

1
Out of stock

18

RING SET, PISTON

12140-05H10

1
Out of stock

19

PIN,PISTON

12151-05A00

1
Out of stock

20

SNAP RING

09381-20004

2
Out of stock
