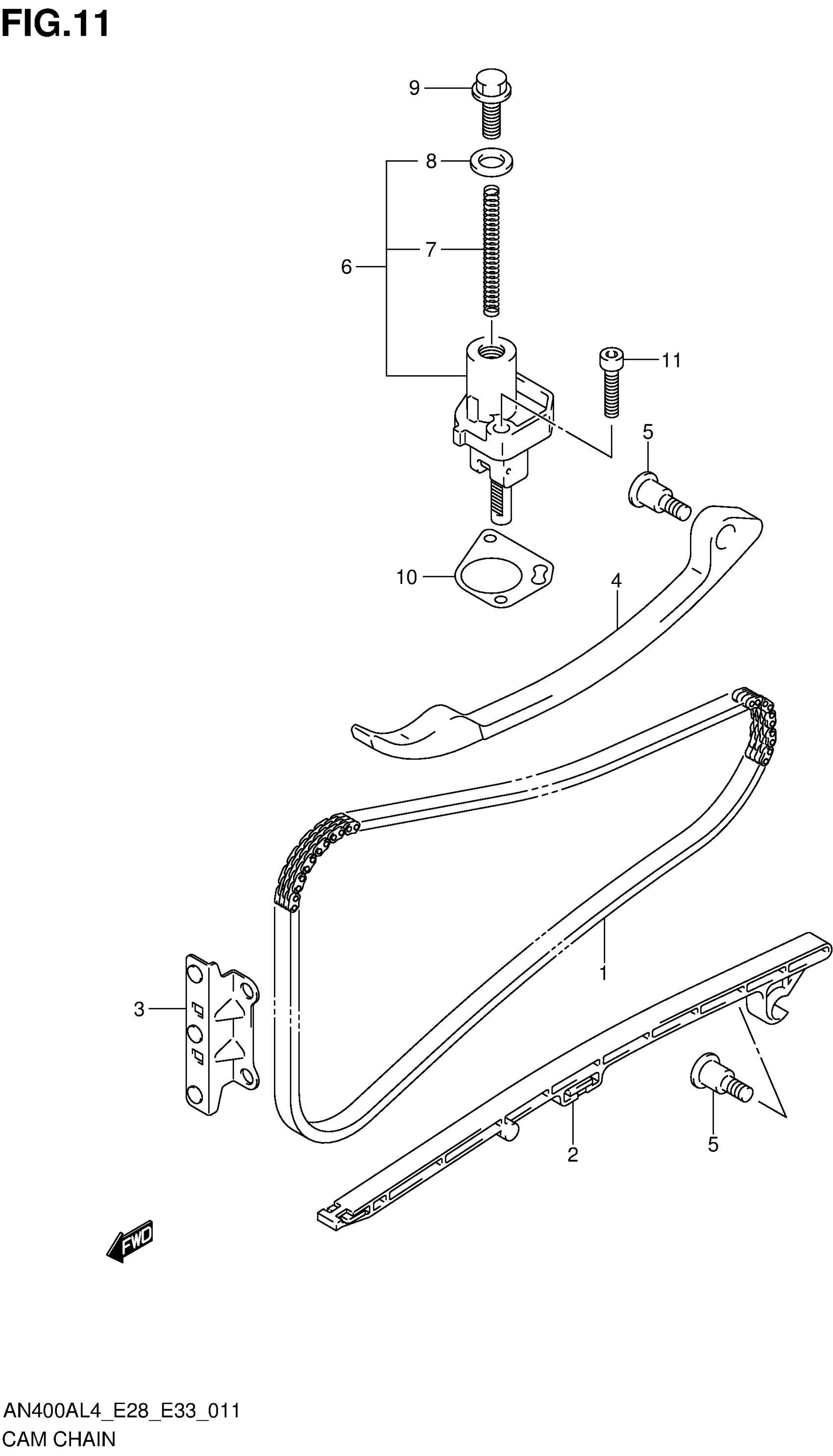

Suzuki AN400AL4 (2014) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE

12760-19F01

$219.87

2

GUIDE,CAM CHAIN NO.1 This part replaces 12771-05H00.

12771-05H01

$32.15

3

GUIDE,CAM CHAIN NO.2

12782-05H00

$41.85

4

TENSIONER,CAM CHAIN This part replaces 12811-05H00.

12811-05H01

$31.52

5

BOLT

12812-31G00

$4.19

6

ADJUSTER ASSY,TENSIONER RR

12830-27G10

$134.23

7

SPRING

12831-39F00

$5.43

8

GASKET

12837-24F10

$4.37

9

PLUG

12833-17G00

$8.88

10

GASKET

12837-27G00

$4.32

11

BOLT (6X25)

07130-0625A

$2.64
