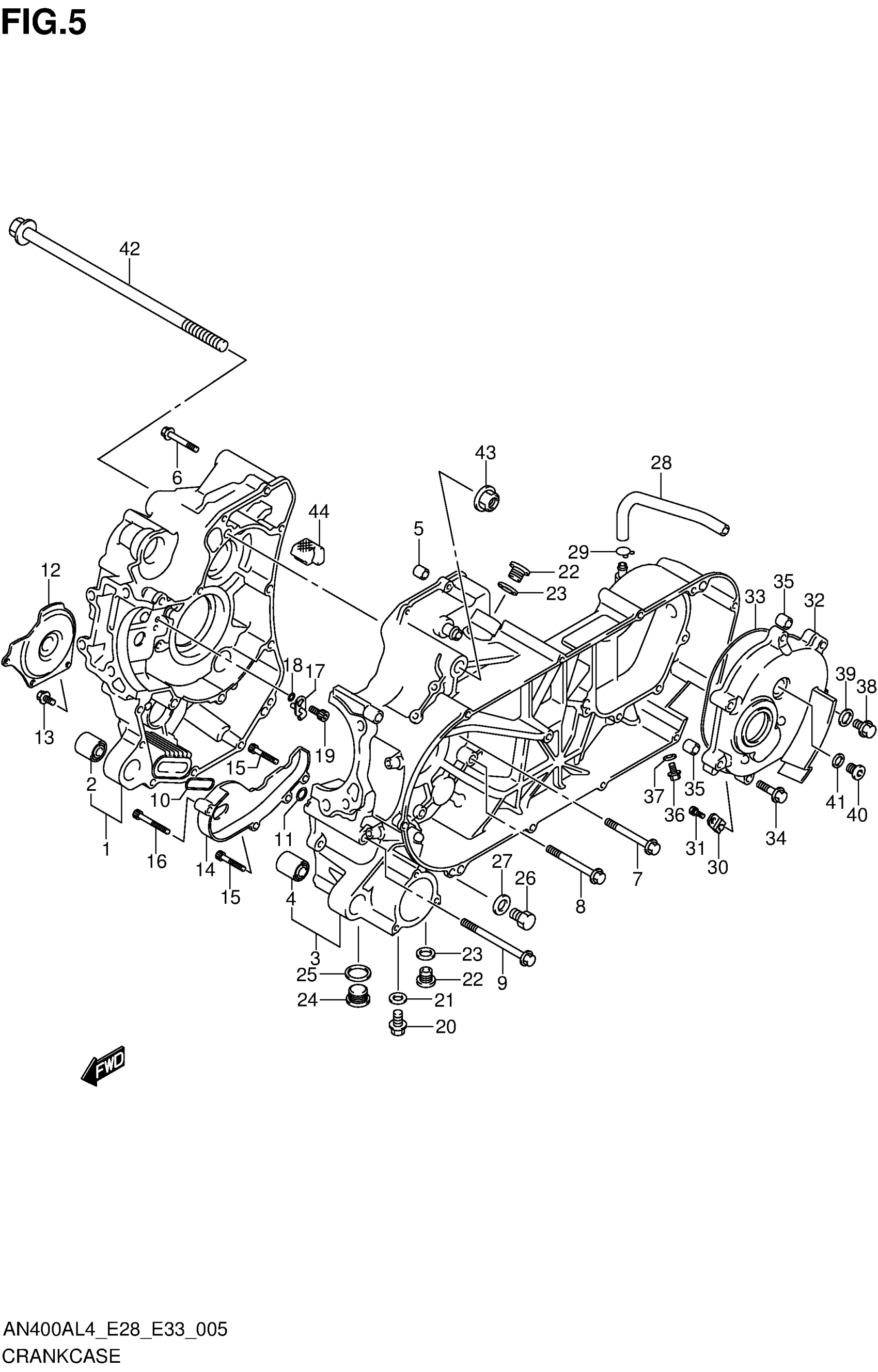

Suzuki AN400AL4 (2014) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET RH

11310-05812

Unavailable

2

.BUSH (10X23X30)

09319-10043

$16.87

3

CRANKCASE SET, LH This part replaces 11320-05832.

11320-05833

Unavailable

4

.BUSH (10X23X30)

09319-10043

$16.87

5

PIN,CRANKCASE

11319-33E50

$5.32

6

BOLT

01547-0640A

$2.32

7

BOLT

01547-0665A

$2.32

8

BOLT

01550-0875A

$3.55

9

BOLT

01550-0895A

$4.60

10

O RING

11315-19F00

$18.67

11

O RING (D:1.9,ID:9.8)

09280-10016

$3.37

12

SEPARATOR,OIL

11313-05H00

Unavailable

13

BOLT

07130-0612A

$2.50

14

SEPARATOR,OIL

11323-05H00

Unavailable

15

BOLT

07130-0630A

$3.72

16

BOLT

07130-0645A

Unavailable

17

JET,PISTON COOLING

11390-14F00

Unavailable

18

O RING (D:1.2,ID:4)

09280-04004

$1.91

19

BOLT

07130-0612A

$2.50

20

BOLT

01550-1016A

$3.10

21

GASKET (10X14X3.6)

09168-10002

$2.13

22

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

23

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

24

PLUG (22X11)

09248-22004

$16.43

25

GASKET (22X27X2)

09168-22002

$5.77

26

PLUG (14X20) | OIL DRAIN

09247-14036

$6.17

27

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

28

HOSE, T/M BREATHER

11329-05H00

Unavailable

29

CLIP (ID:11)

09401-11403

$2.85

30

MAGNET, GEAR BOX

11393-20E00

Unavailable

31

BOLT

01570-0612A

$2.63

32

COVER,GEAR BOX

11431-05H00

Unavailable

33

O RING (D:2.4,ID:172)

09280-00035

$19.15

34

BOLT (8X35)

01550-0835A

$3.04

35

PIN

04211-09149

$1.65

36

BOLT (8X12) | OIL DRAIN

01550-0812A

$2.32

37

GASKET (8.2X14X1)

09168-08016

$1.65

38

BOLT

01550-1016A

$3.10

39

GASKET (10X14X3.6)

09168-10002

$2.13

40

PLUG (16X8)

09248-16012

$4.64

41

GASKET (16X22X2)

09168-16002

$1.91

42

BOLT (12X310)

09103-12054

$25.67

43

NUT

08319-3112A

$3.76

44

SEPARETOR, OIL BREATHER

11324-05H00

$15.33
