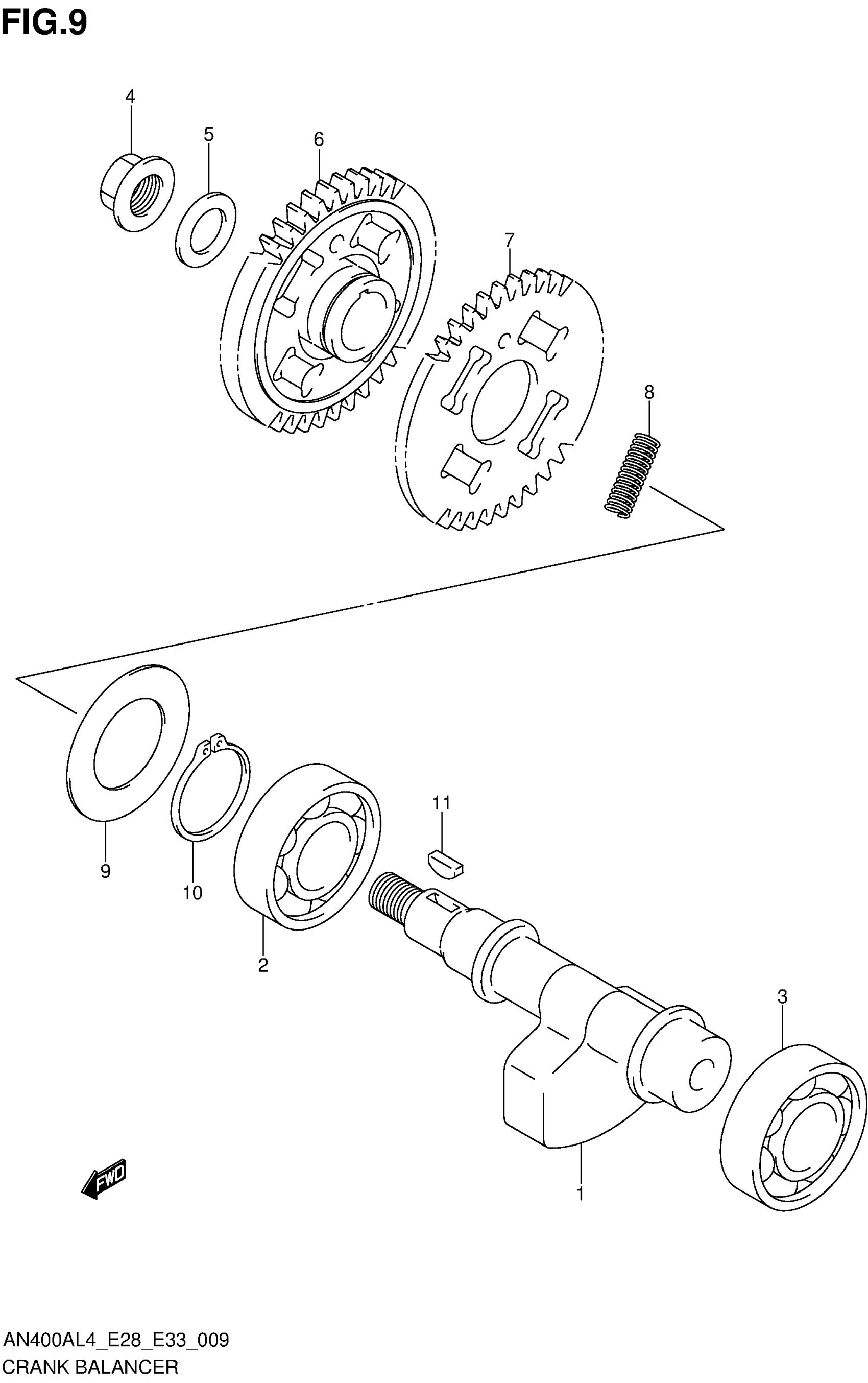

Suzuki AN400AL4 (2014) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER,CRANK

12651-05H00

Unavailable

2

BEARING (20X47X14)

09262-20121

$33.92

3

BEARING(22X50X1 This part replaces 09262-22027.

09262-22047

$45.80

4

NUT

08316-1012A

$2.26

5

WASHER

08211-12283

$2.12

6

GEAR, DRIVEN NO.1 (NT:40)

12666-05H00

Unavailable

7

GEAR, DRIVEN NO.2 (NT:40)

12667-05H00

Unavailable

8

SPRING

09440-07077

Unavailable

9

WASHER

08211-28482

Unavailable

10

CIRCLIP

08331-31289

$2.19

11

KEY

09420-04008

$3.42
