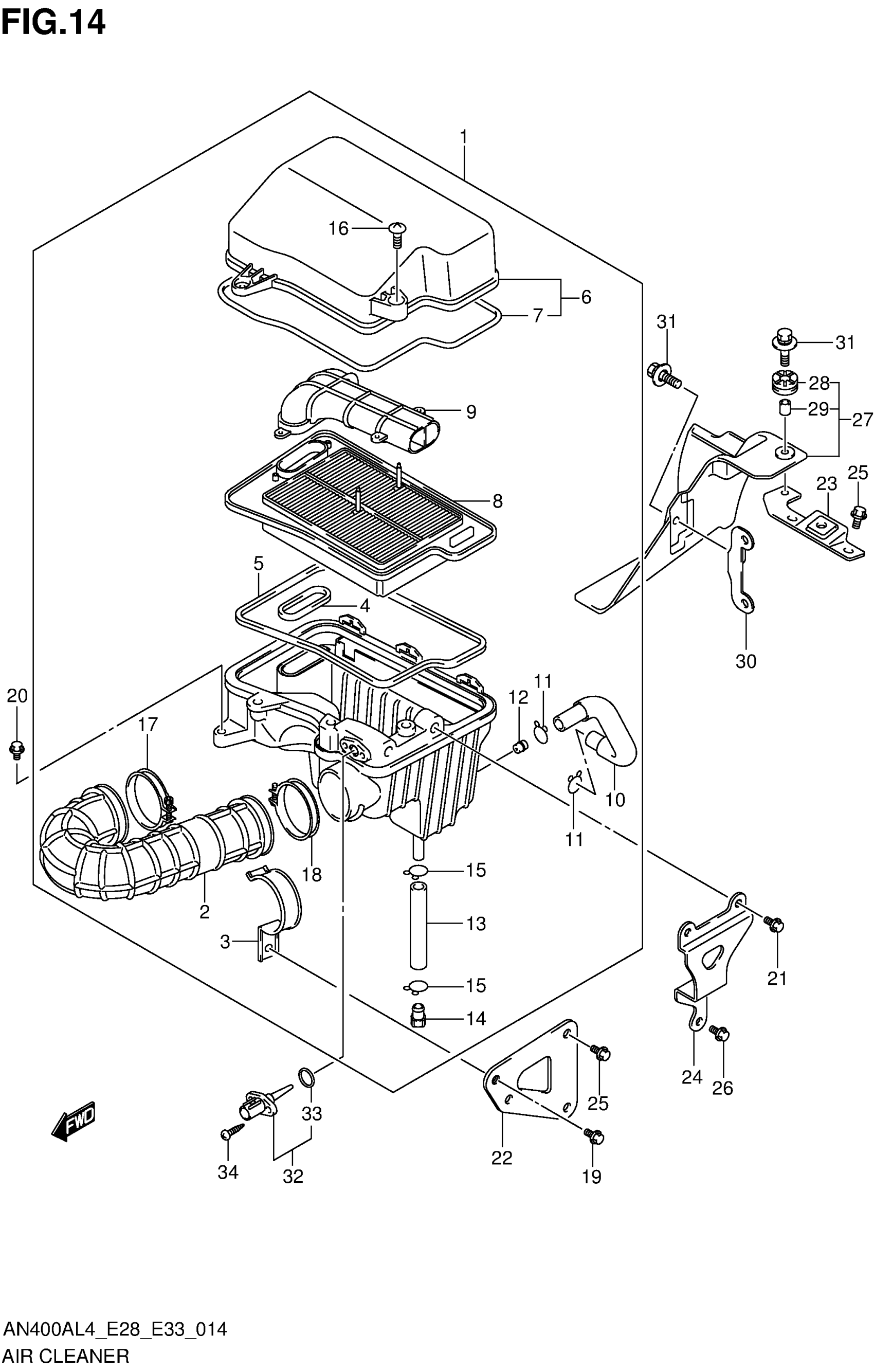

Suzuki AN400AL4 (2014) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-05HA1

$455.25

2

TUBE, OUTLET

13881-05HA0

Unavailable

3

BRACKET

13882-05HA0

Unavailable

4

GASKET, FILTER

13747-05H01

$4.53

5

GASKET, CASE

13748-05H00

$6.05

6

CAP

13740-05H01

$47.77

7

GASKET, CAP

13746-05H01

Unavailable

8

FILTER

13781-05H00

$66.18

9

TUBE, INLET

13891-05H00

$32.17

10

TUBE,BREATHER This part replaces 13853-05H00.

13853-05H01

$29.72

11

CLIP

09401-15101

$2.26

12

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

$4.40

13

TUBE, DRAIN

13871-05H00

Unavailable

14

PLUG, DRAIN TUBE

13877-00190

$5.32

15

CLIP

09401-14301

$2.35

16

SCREW

02142-0616A

$1.49

17

CLAMP

13170-25D01

$6.60

18

CLAMP

09402-58208

$5.36

19

BOLT

01550-0612A

$1.97

20

BOLT (6X30)

09116-06103

$3.15

21

BOLT

01550-0612A

$1.97

22

BRACKET, FRONT

13760-05H00

Unavailable

23

BRACKET, REAR

13760-05H20

Unavailable

24

BRACKET, LH

13760-05H10

Unavailable

25

BOLT

01547-0612A

$2.03

26

BOLT

01550-0612A

$1.97

27

COWLING, CYLINDER

17120-05H01

Unavailable

28

CUSHION

09320-10051

$2.99

29

SPACER (6.5X10X12)

09180-06290

$2.35

30

BRACKET

17122-05H00

Unavailable

31

BOLT (6X25)

09118-06097

$2.50

32

SENSOR, AIR TEMP

13650-14G10

$52.06

33

O RING

13655-14G10

$9.90

34

SCREW

03511-0516A

$1.86
