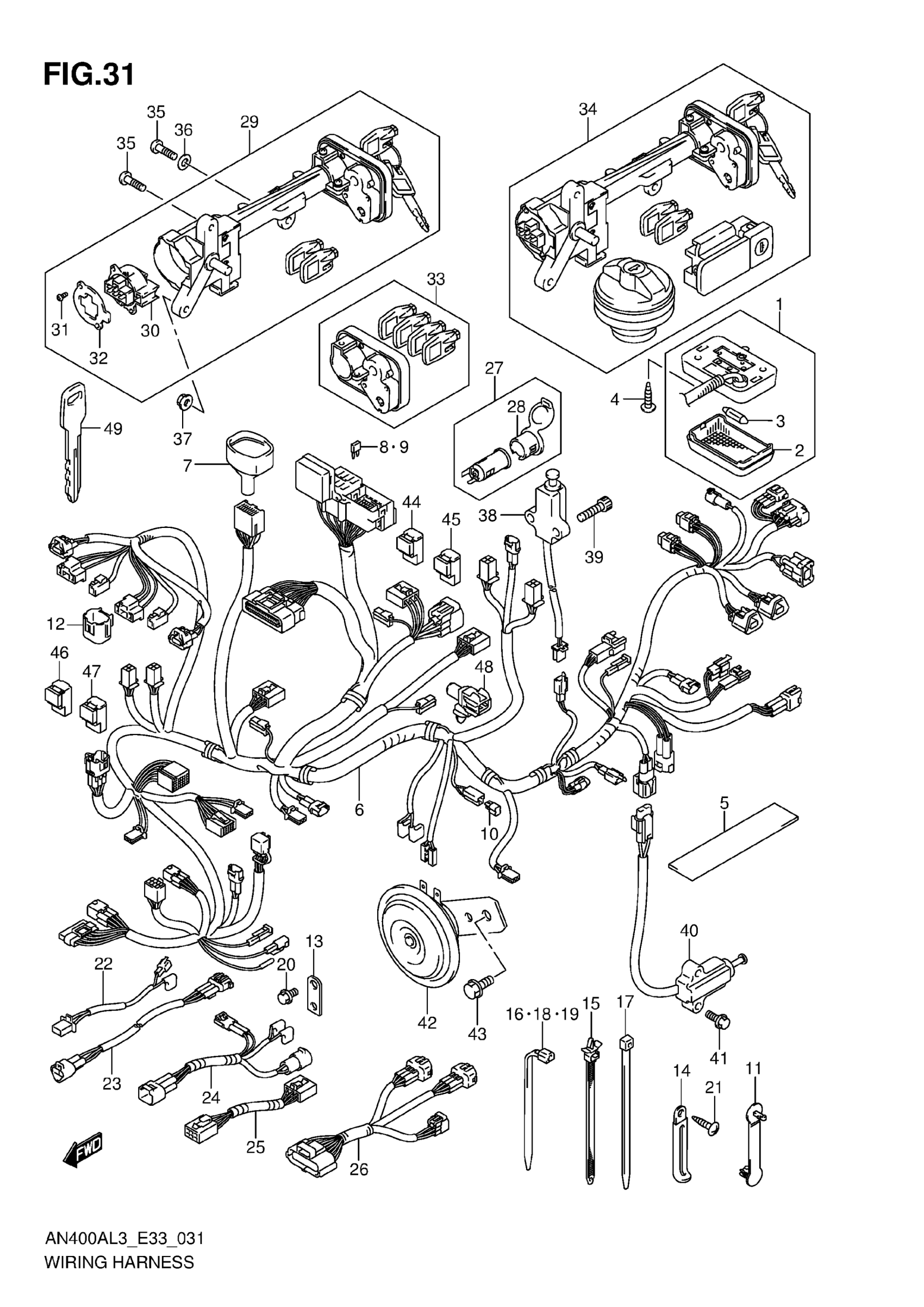

Suzuki AN400AL3 (2013) WIRING HARNESS (AN400AL3 E33) Diagram

#

Description
Price

1

LAMP ASSY, TRUNK BOX

36210-14G00

Unavailable

2

LENS, ROOM LAMP

36212-79001

Unavailable

3

BULB (12V,5W)

09471-12073

$3.03

4

SCREW

03541-0412B

$1.49

5

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

6

HARNESS, WIRING

36610-05HU0

Unavailable

7

COVER

36618-21E00

Unavailable

8

FUSE (10A)

09481-10501

$2.06

9

FUSE (15A)

09481-15501

$2.02

10

DIODE

32800-16A00

$23.07

11

CLAMP (L:63)

36651-48E00

$3.25

12

CAP, TS

36654-06J20

Unavailable

13

BRACKET, LEAD WIRE

36672-05H10

Unavailable

14

CLAMP (L:45)

09404-06429

$1.83

15

CLAMP (L:90)

09407-11402

$1.80

16

CLAMP (L:125)

09407-14403

$2.26

17

CLAMP (L:145)

09407-14407

$3.57

18

CLAMP (L:190)

09407-19401

$3.05

19

CLAMP (L:235)

09407-25401

$4.66

20

BOLT

01547-0612A

$2.03

21

SCREW

03541-0616A

$2.02

22

WIRE, POWER SOURCE LEAD

36852-05H00

Unavailable

23

WIRE, SPEED SENSOR

36853-05H00

Unavailable

24

WIRE, IGNITION COIL LEAD

36854-05H30

Unavailable

25

WIRE, IGNITION SWITCH LEAD

36856-05H00

$71.10

26

WIRE, ABS CONTROLLER LEAD

36859-05H00

Unavailable

27

TERMINAL, POWER SOURCE (GRAY)

39410-76F00-P4Z

Unavailable

28

COVER (GRAY)

39441-76F00-P4Z

$14.77

29

LOCK ASSY, STEERING SET

37120-14831

$428.17

30

SWITCH, IGNITION

37111-10G00

$79.28

31

SCREW, IGNITION SWITCH PLATE

37121-06H00

Unavailable

32

PLATE, IGNITION SWITCH

37181-06H00

$18.90

33

SHUTTER, STEERING LOCK

37155-10G01

Unavailable

34

LOCK SET This part replaces 37101-14841.

37101-14842

$378.75

35

SCREW (6X20)

09139-06048

$2.14

36

WASHER (6.5X18X1.6)

09160-06109

$1.49

37

NUT

08316-1006B

$2.50

38

SWITCH ASSY, TRUNK BOX

37980-14F00

Unavailable

39

BOLT

07130-0516B

$2.45

40

SWITCH ASSY,SIDE STAND This part replaces 37840-18J00.

37840-18J02

$52.92

41

BOLT

01550-0620A

$1.97

42

HORN ASSY

38500-05H00

$87.70

43

BOLT (8X12)

01550-0812A

$2.32

44

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

45

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

46

RELAY ASSY, LOW BEAM

38740-04J00

$45.38

47

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

48

SENSOR, AMBIENT AIR

95643-58J00

$50.50

49

KEY, BLANK | OPT

37146-14G00

$38.13
