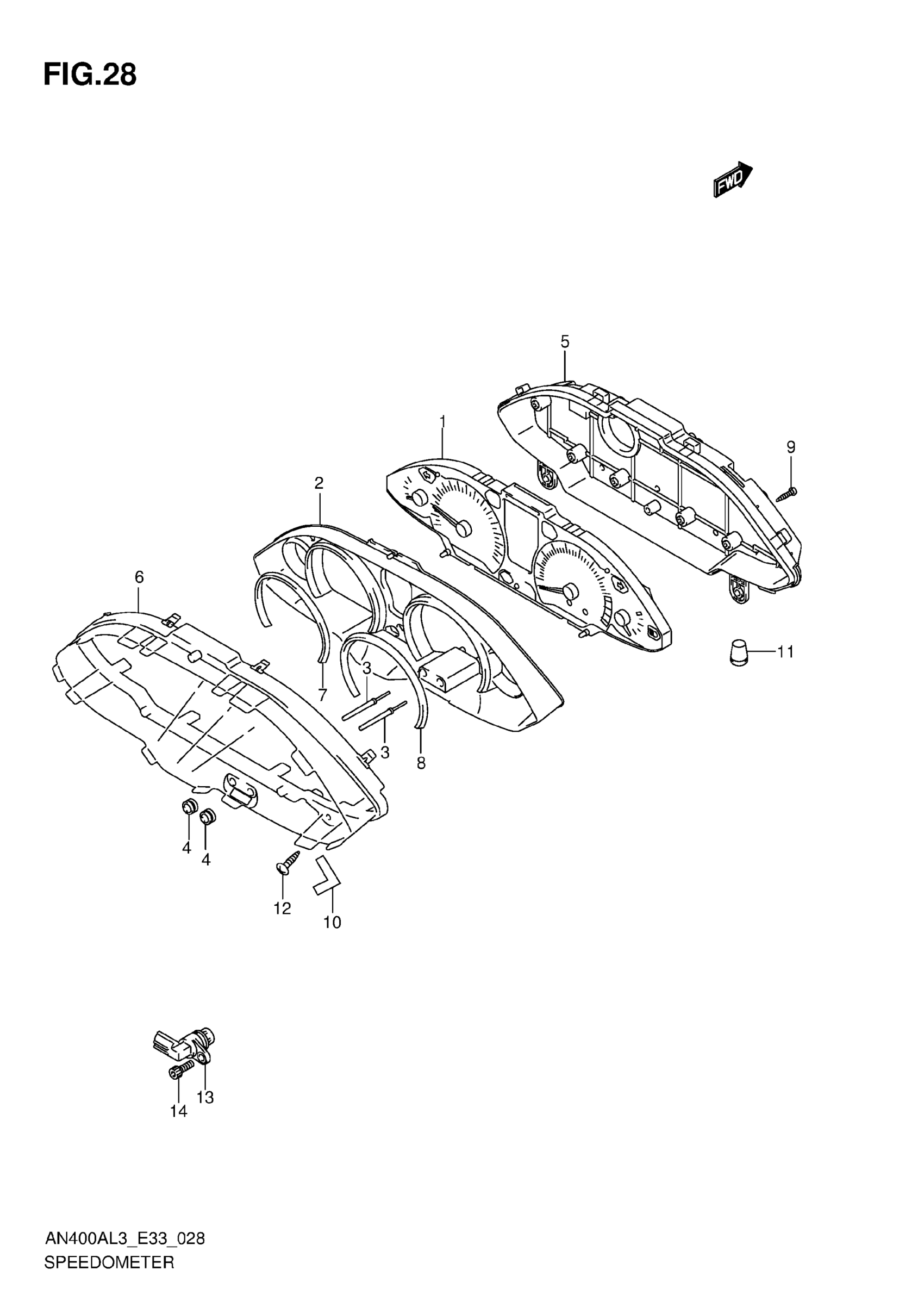

Suzuki AN400AL3 (2013) SPEEDOMETER (AN400ZAL3 E28) Diagram

#

Description
Price

1

SPEEDOMETER

34120-06HN0

Unavailable

2

PLATE, WINDOW

34113-05H00

Unavailable

3

KNOB

34124-05H00

Unavailable

4

COVER, SPEEDOMETER

34126-44G00

$10.48

5

CASE, LOWER

34152-05H00

$90.23

6

GLASS

34154-05H00

$103.03

7

DECORATION RING RH

34157-05H10

Unavailable

8

DECORATION RING LH

34157-05H20

Unavailable

9

SCREW

34183-29F00

$3.84

10

PROTECTOR (5X20X0.2)

34189-05H10

Unavailable

11

CUSHION,SPEEDOM This part replaces 34955-10G00.

34955-10G01

$3.03

12

SCREW

03541-0520A

$1.80

13

SENSOR, SPEED

34990-05H01

$136.02

14

BOLT

07130-0616B

$2.39
