2013 Suzuki AN400AL3 Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2013 Suzuki AN400AL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

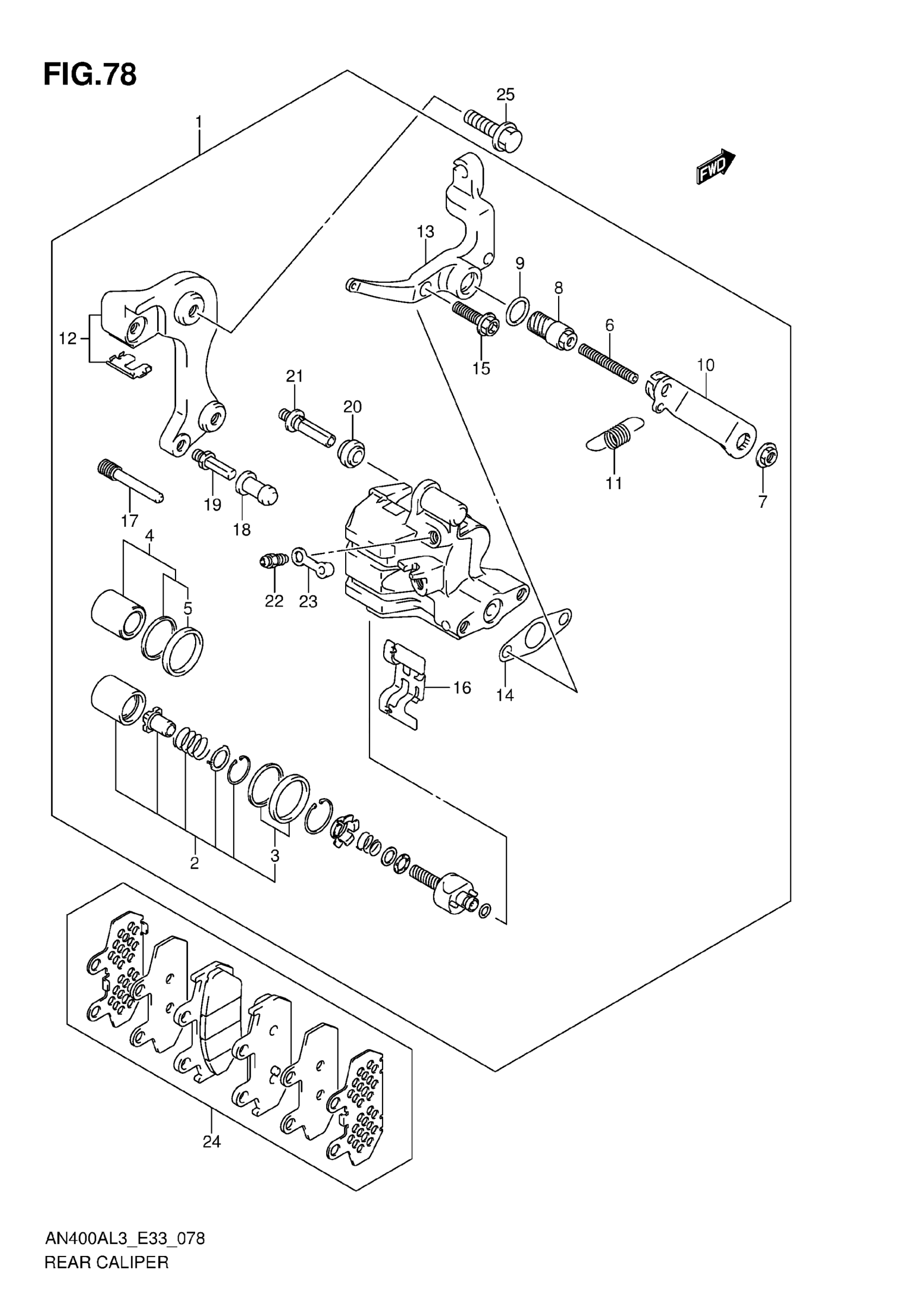

2013 Suzuki AN400AL3 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$604.68

In stock

2

PISTON SET

69100-43810

1
Out of stock

3

SEAL SET, PISTON

69100-36810

1
Out of stock

4

PISTON SET

69100-10830

1

$52.47

In stock

5

SEAL SET, PISTON

69100-36810

1
Out of stock

6

BOLT

69127-10G00

1

$19.68

In stock

7

NUT

69123-14F40

1

$7.40

In stock

8

SHAFT

69124-10G00

1
Out of stock

9

O RING

69122-14F40

1
Out of stock

10

ARM

69125-05H00

1

$23.07

In stock

11

SPRING, RETURN

69128-14F00

1

$7.12

In stock

12

BRACKET

69150-05H10

1
Out of stock

13

PARKING

69120-05H10

1
Out of stock

14

PACKING

69126-14F40

1

$6.60

In stock

15

BOLT (8X25)

69121-14F00

2
Out of stock

16

SPRING, PAD

69115-10G00

1

$20.72

In stock

17

PIN, HANGER

59345-13E00

2
Out of stock

18

BOOT

59386-13A00

1
Out of stock

19

PIN

59382-14500

1
Out of stock

20

BOOT

59303-14500

1
Out of stock

21

PIN

59305-27C00

1
Out of stock

22

BLEEDER

59121-01A00

1
Out of stock

23

CAP, BLEEDER

59122-01A00

1
Out of stock

24

PAD & SHIM SET

69102-05890

1

$70.98

In stock

25

BOLT

01550-0830A

2
Out of stock
