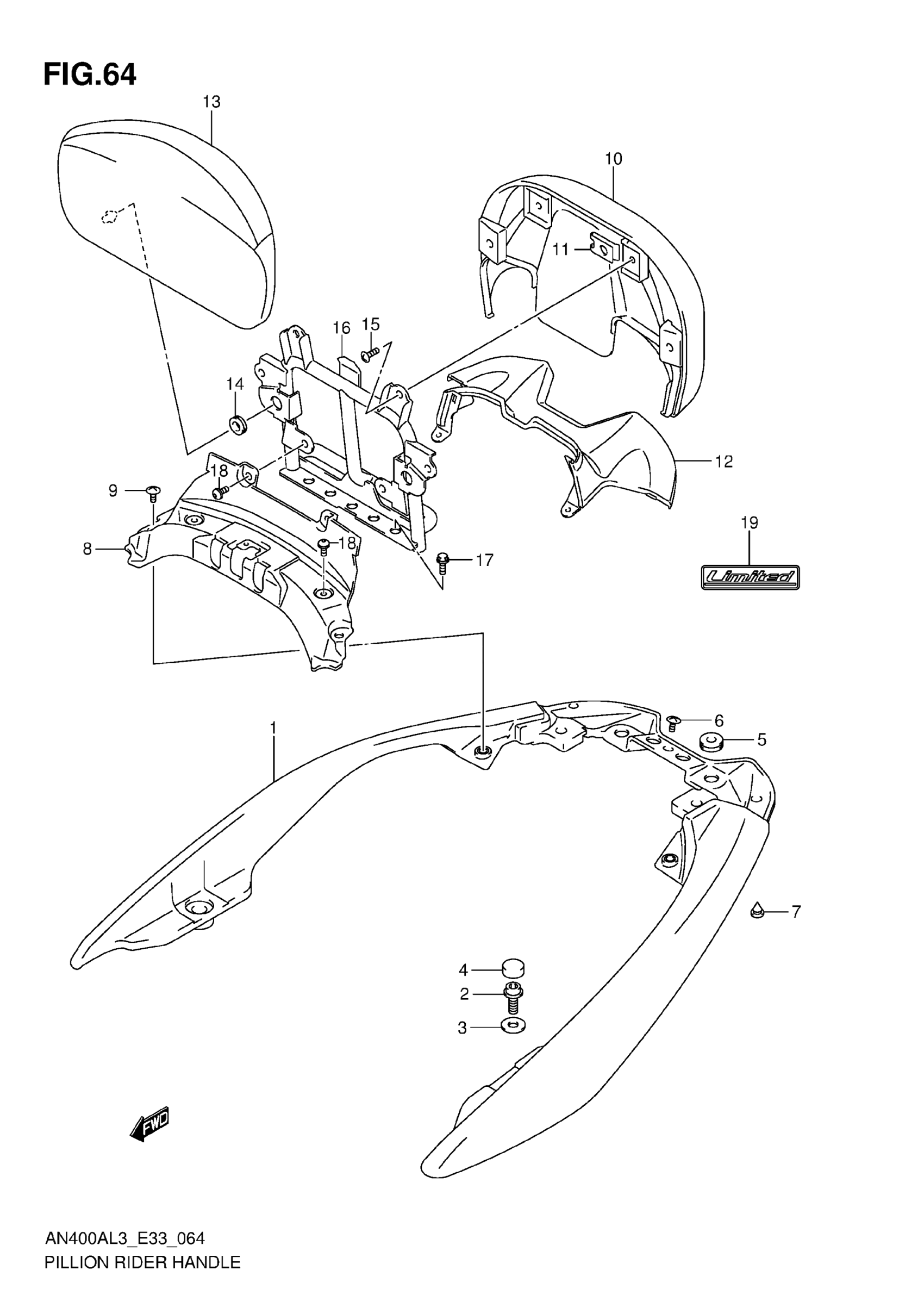

Suzuki AN400AL3 (2013) PILLION RIDER HANDLE (AN400ZAL3 E28) Diagram

#

Description
Price

1

HANDLE, PILLION RIDER (WHITE)

46210-05H03-YBD

Unavailable

1

HANDLE, PILLION RIDER (BLACK)

46210-05H03-YVB

$722.52

2

BOLT (8X25)

09106-08151

$4.02

3

WASHER

09169-08049

$3.76

4

CAP, FRONT

46271-14G00

$8.52

5

CUSHION

09320-08028

$2.80

6

SCREW (6X16)

09139-06168

$2.64

7

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.74

8

COVER, BACKREST FR (BLACK)

46215-05H50-291

Unavailable

9

SCREW (6X16)

09139-06168

$2.64

10

COVER, BRACKREST REAR (BLACK)

46216-05H50-291

Unavailable

11

NUT

09148-06018

$2.90

12

COVER, BACKREST REAR LOWER (WHITE)

46217-05H50-YBD

Unavailable

12

COVER, BACKREST REAR LOWER (BLACK)

46217-05H50-YVB

Unavailable

13

BRACKREST ASSY, PILLION RIDER

46220-05H60-AKZ

Unavailable

14

CUSHION

09320-08049

$3.07

15

SCREW

02142-0612B

$1.89

16

BACKET, PILLION BACKREST

46250-05H50

Unavailable

17

BOLT

09106-08161

$4.85

18

CLIP

09409-06314-5PK

$2.80

19

EMBLEM, "LIMITED" (SILVER)

68135-14FA0-YCR

Unavailable
