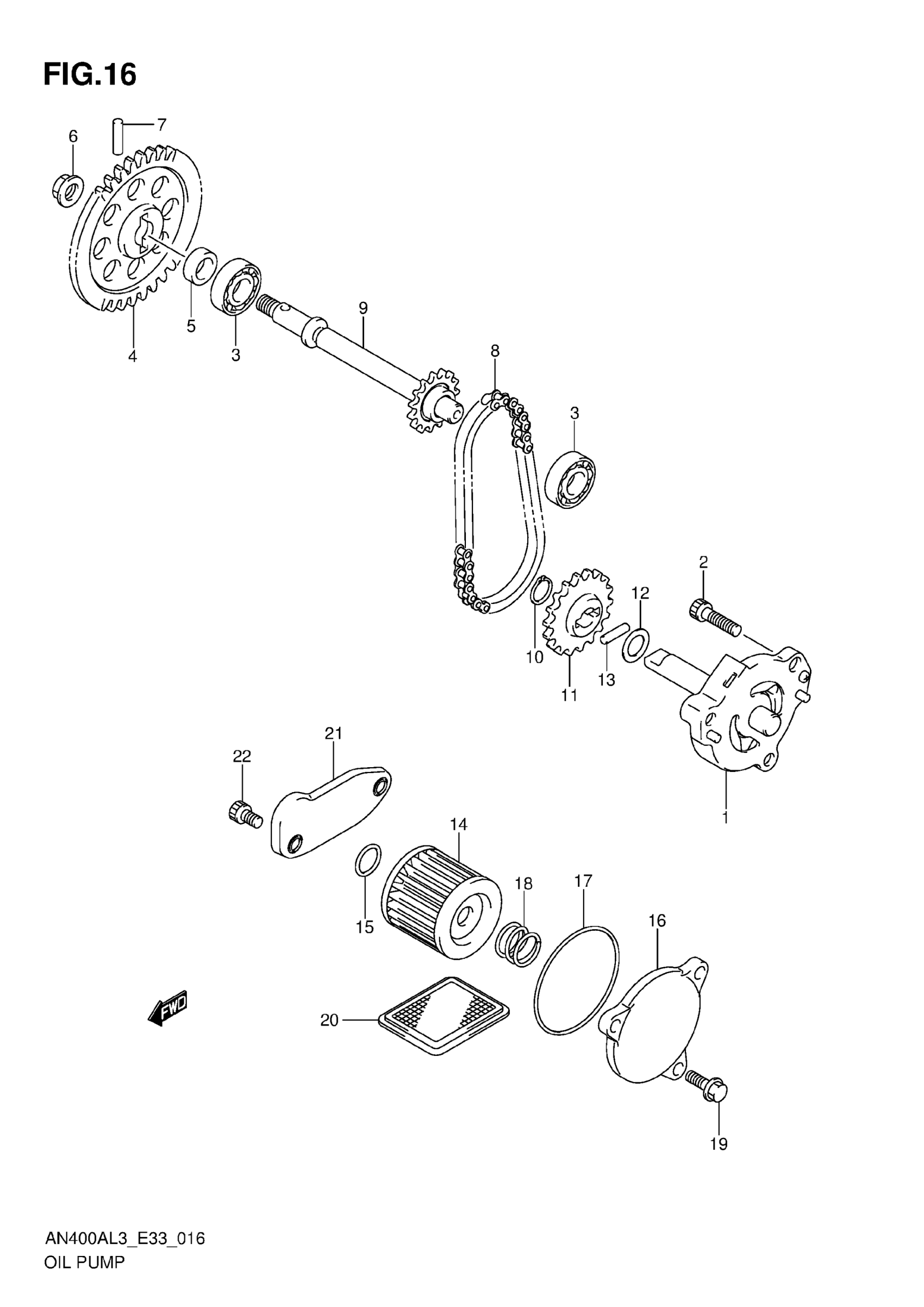

Suzuki AN400AL3 (2013) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENG OIL

16400-05H00

$122.15

2

BOLT

07130-0620A

$2.50

3

BEARING (10X26X8)

09262-10015

$14.48

4

GEAR, OIL PUMP IDLE (NT:39)

16321-05H00

Unavailable

5

SPACER (10.3X16X6)

09180-10125

Unavailable

6

NUT

08316-1008A

$2.45

7

PIN (4X15.8)

09261-04009

$1.56

8

CHAIN ASSY,OIL PUMP DRIVE

16310-05H00

$23.47

9

SPROCKET, OIL PUMP DRIVE (NT:14)

16322-05H00

Unavailable

10

CIRCLIP

08331-31109

$1.78

11

SPROCKET, OIL PUMP DRIVEN (NT:20)

16331-05H00

Unavailable

12

SHIM (10X18X0.5)

09181-10158

$1.97

13

PIN (4X15.8)

09261-04009

$1.56

14

FILTER ASSY, ENGINE OIL

16510-05240

$6.06

15

O RING (D:1.9,ID:13)

09280-13004

$2.17

16

CAP,OIL FILTER

16512-49E00

$40.48

17

O RING (D:2.4,ID:52.6)

09280-54001

$3.76

18

SPRING

09440-18002

$1.49

19

BOLT

01547-0616A

$2.03

20

STRAINER,ENGINE OIL This part replaces 16520-09402.

16520-09403

$8.53

21

CAP,OIL STRAINER

16523-05H00

Unavailable

22

BOLT

07130-0612A

$2.50
