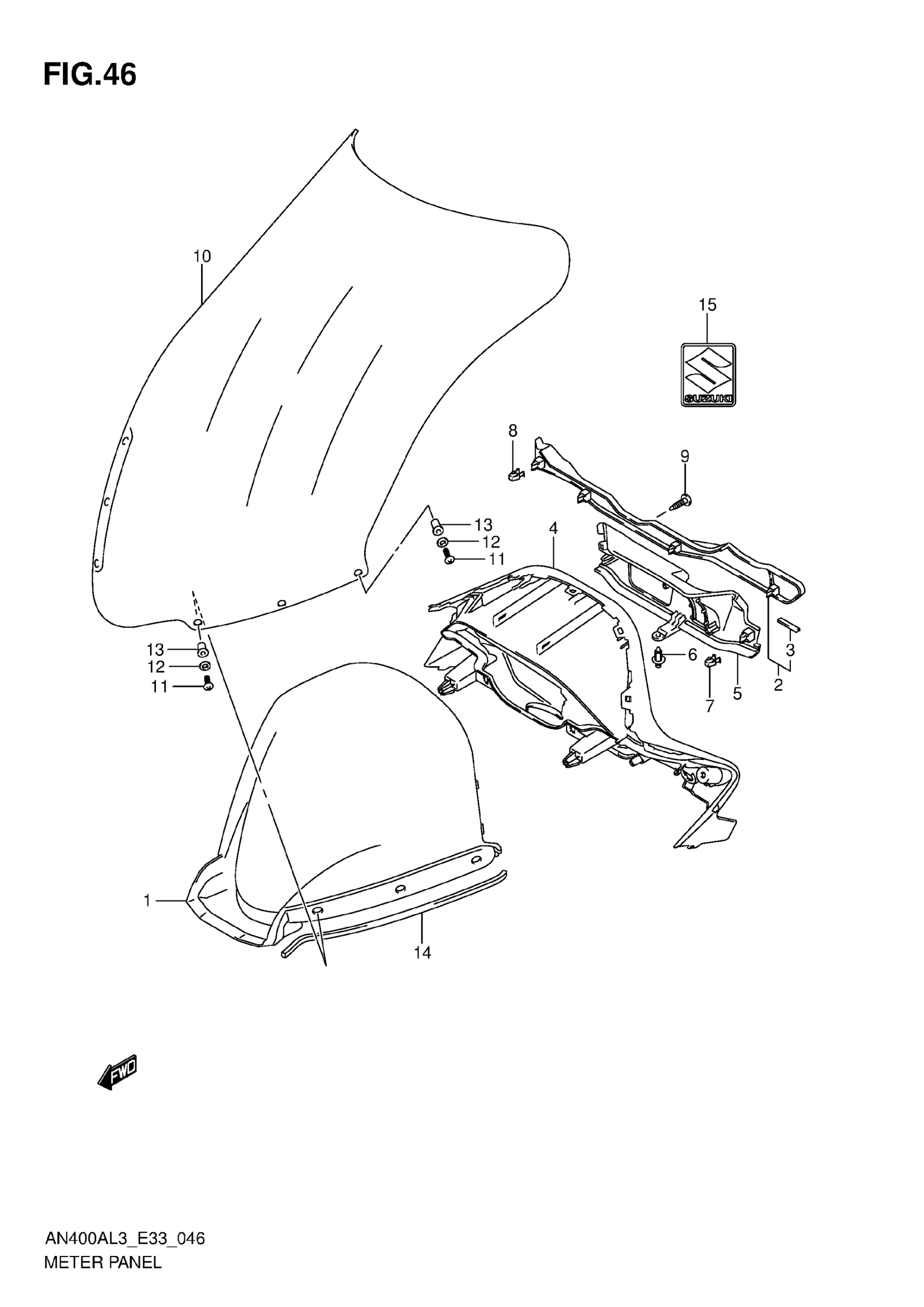

Suzuki AN400AL3 (2013) METER PANEL Diagram

#

Description
Price

1

PANEL, METER FRONT (BLACK)

94421-05H00-291

Unavailable

2

PANEL, METER UPPER (BLACK)

94423-05H01-291

$150.28

3

TAPE, METER PANEL

94443-06G00

$3.25

4

PANEL, METER REAR (BLACK)

94422-05H00-291

$165.07

5

PANEL, FRONT (BLACK)

94671-05H01-291

$68.55

6

CLIP This part replaces 09409-06322.

09409-06322-5PK

$3.10

7

CLIP

09409-08326

$2.48

8

CLIP

09409-08326

$2.48

9

SCREW

03541-0516A

$1.49

10

WINDSCREEN

94611-05H00

$1,035.05

11

SCREW

02142-0520A

$1.49

12

WASHER

08322-0105A

$1.84

13

NUT

09159-05045

$7.37

14

CUSHION, FRONT

94424-05H00

$5.88

15

EMBLEM "S"

68281-35F00

$16.45
