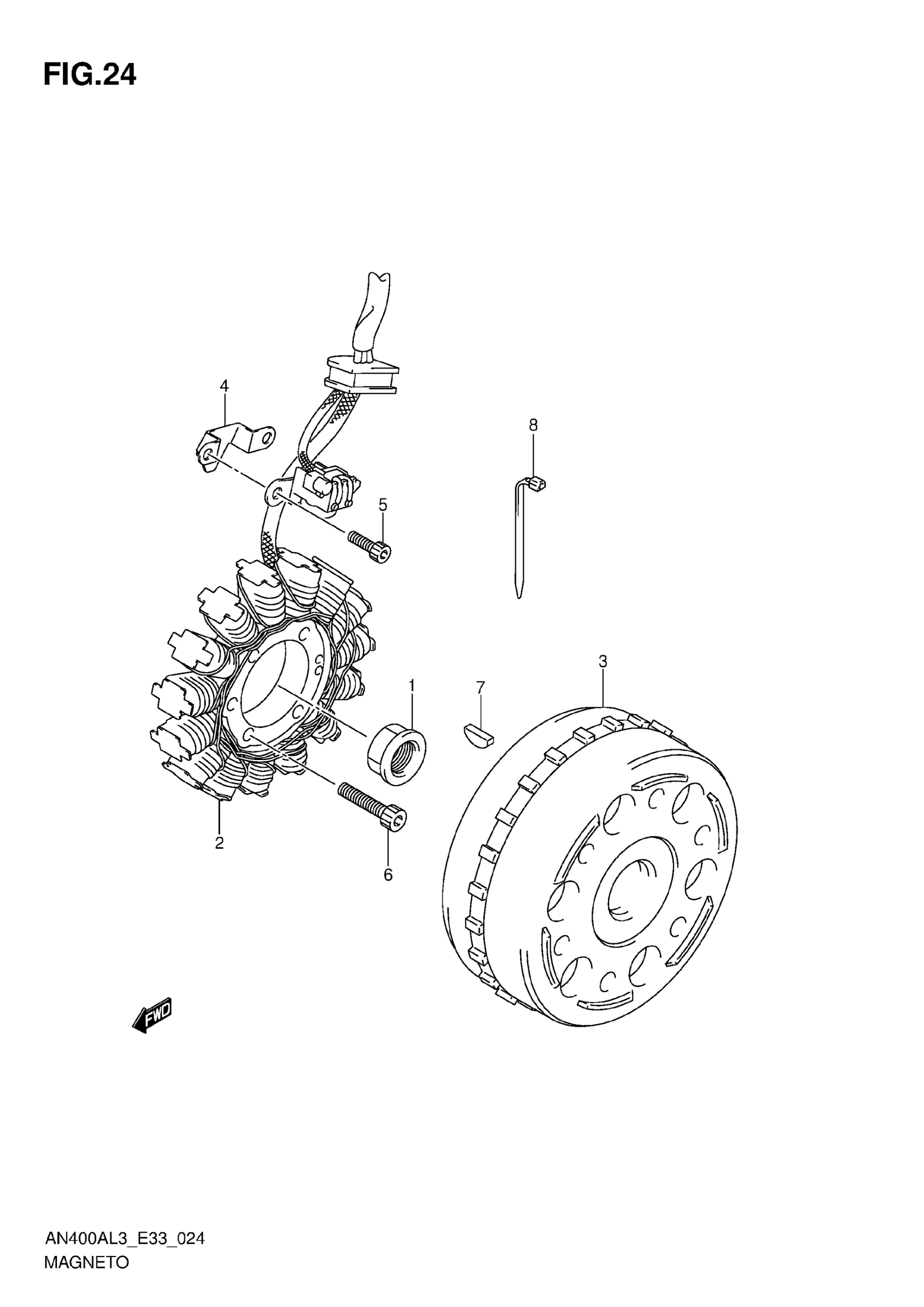

Suzuki AN400AL3 (2013) MAGNETO Diagram

#

Description

Price

1

NUT, MAGNETO ROTOR

31792-18A00

$11.87

2

STATOR ASSY, MAGNETO This part replaces 32101-15GB0.

32101-15GB1

$677.30

3

ROTOR ASSY, MAGNETO

32102-15G30

Unavailable

4

CLAMP, MAGNETO LEAD

32371-32E00

$6.30

5

BOLT

07130-0512A

$2.19

6

BOLT

07130-0630A

$3.72

7

KEY

09420-04008

$3.42

8

CLAMP (L:235)

09407-25401

$4.66
