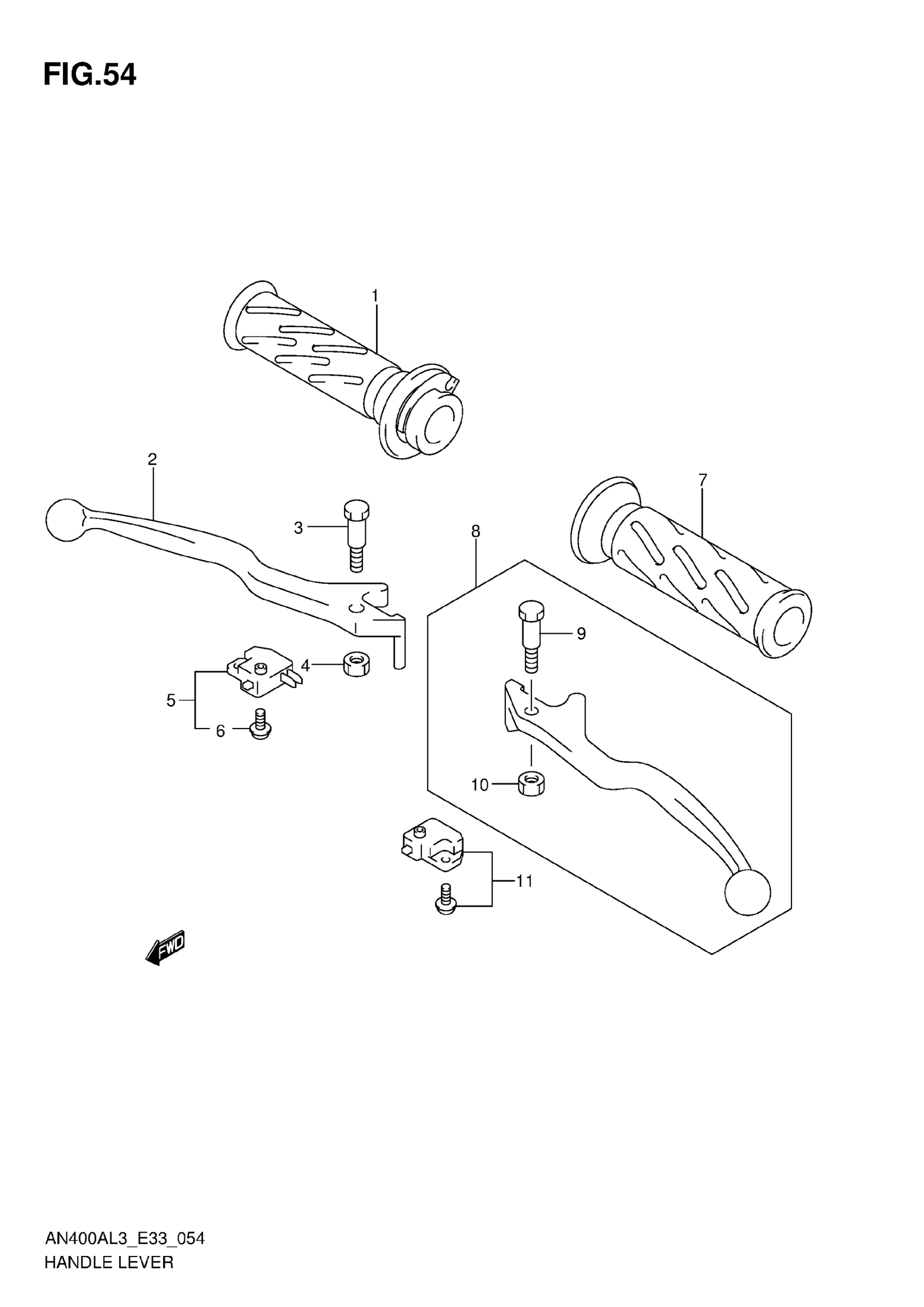

Suzuki AN400AL3 (2013) HANDLE LEVER (AN400AL3 E33) Diagram

#

Description

Price

1

GRIP, THROTTLE (BLACK) This part replaces 57110-29G01-291.

57110-29G02-291

$29.93

2

LEVER, FRONT BRAKE

57421-14F00

$19.53

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

4

NUT,LEVER PIVOT

57433-09F00

$3.56

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH (BLACK) This part replaces 57211-22D01-291.

57211-22D02-291

$14.55

8

LEVER ASSY,RR BRAKE

57500-14F00

$17.33

9

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

10

NUT

08319-2106B

$2.32

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J01.

57560-14J02

$38.66
