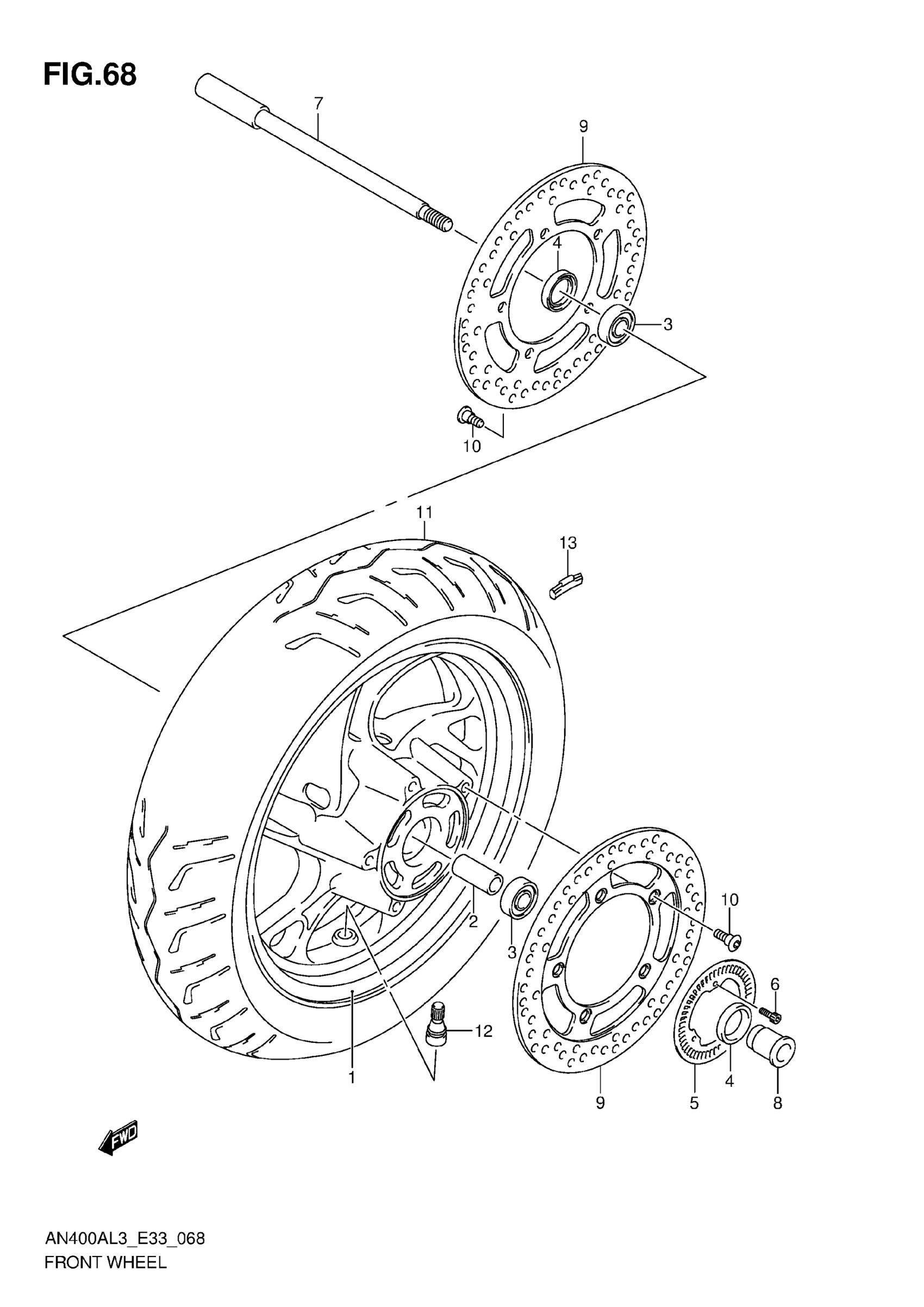

Suzuki AN400AL3 (2013) FRONT WHEEL (AN400ZAL3 E28) Diagram

WHEEL, FRONT (14M/CXMT3.00) (SILVER)

54111-05H10-YMY

Unavailable

SPACER (15.3X21.7X100)

09180-15070

$20.13

BEARING

08123-62027

$18.57

SEAL,OIL This part replaces 09285-22005.

09285-22007

$7.05

RING, SPEED SENSOR FR (50T)

54162-27G00

$140.15

BOLT

07130-0512A

$2.19

AXLE,FRONT

54711-05H00

Unavailable

SPACER, FRONT AXLE, L

54751-14F00

$21.35

DISC, FRONT BRAKE

59221-14G30

Unavailable

BOLT (8X21)

09106-08160

$3.57

TIRE, FRONT (120/80-14M/C 58S)

55110-05H00

Unavailable

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

BALANCER, WHEEL NO.1 | 10G

43222-73H20

Unavailable

BALANCER, WHEEL NO.2 | 20G

43224-73H20

Unavailable

BALANCER, WHEEL NO.3 | 30G

43226-73H20

Unavailable
