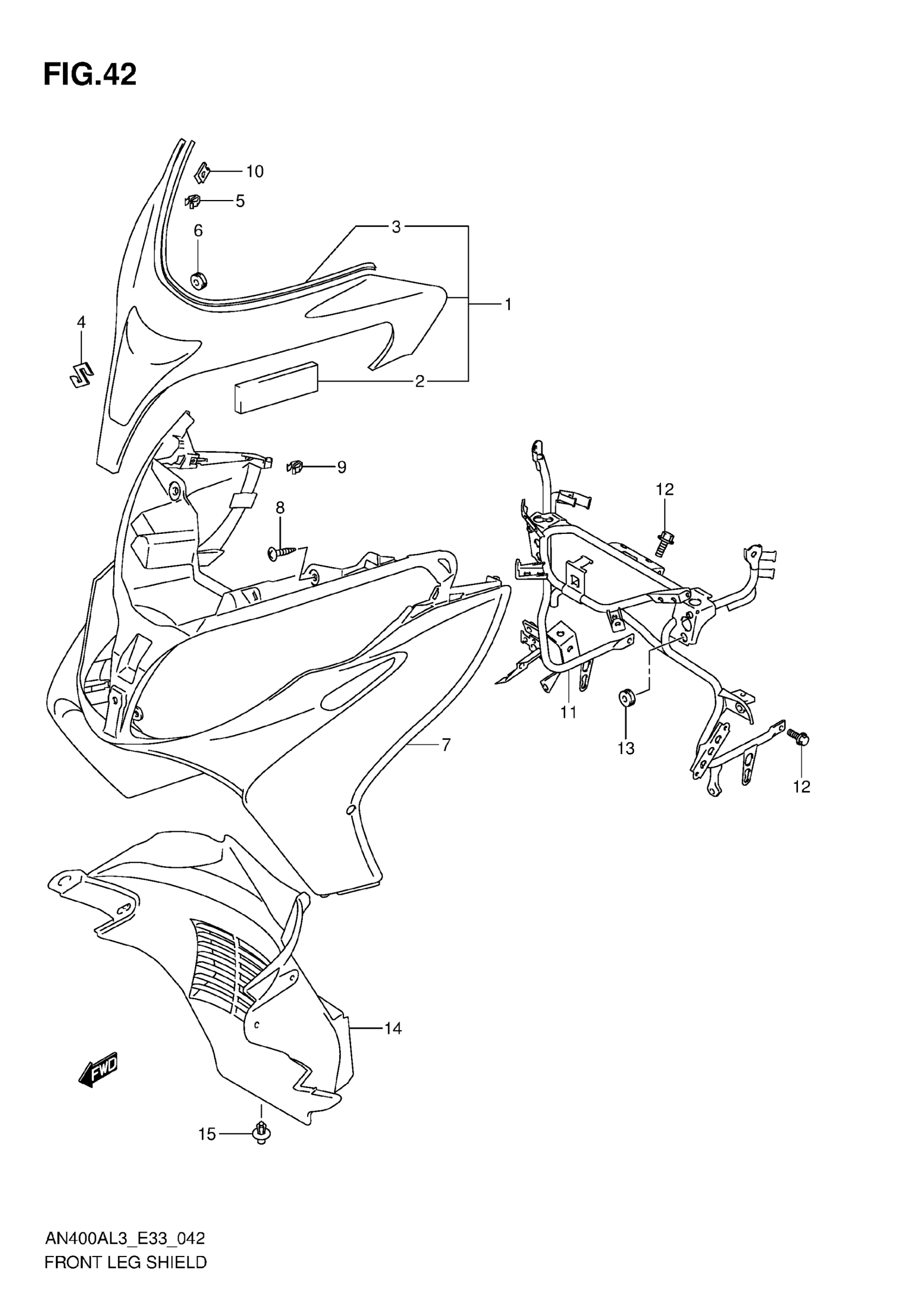

Suzuki AN400AL3 (2013) FRONT LEG SHIELD (AN400ZAL3 E28) Diagram

Description

Price

COVER, FRONT LEG (WHITE)

48130-05H00-YBD

Unavailable

COVER, FRONT LEG (BLACK)

48130-05H00-YVB

$333.85

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$3.70

MOLDING, FR LEG SHIELD COVER

48132-05H00

Unavailable

EMBLEM, "S"

68641-14G00

$40.35

CLIP

09409-08326

$2.48

CUSHION

09320-06026

$4.10

SHIELD, LEG FRONT (WHITE)

48111-05H00-YBD

Unavailable

SHIELD, LEG FRONT (BLACK)

48111-05H00-YVB

Unavailable

SCREW (6X12)

09136-06004

$2.15

CLIP

09409-08326

$2.48

NUT

09148-05038

$1.97

BRACE, LEG SHIELD

48150-05HD0

$394.78

BOLT (8X12)

01550-0812A

$2.32

CUSHION

09320-08018

$3.04

SHIELD, LEG LOWER

48137-05H01

$166.00

CLIP (BLACK)

09409-08308-5ES

$1.97
