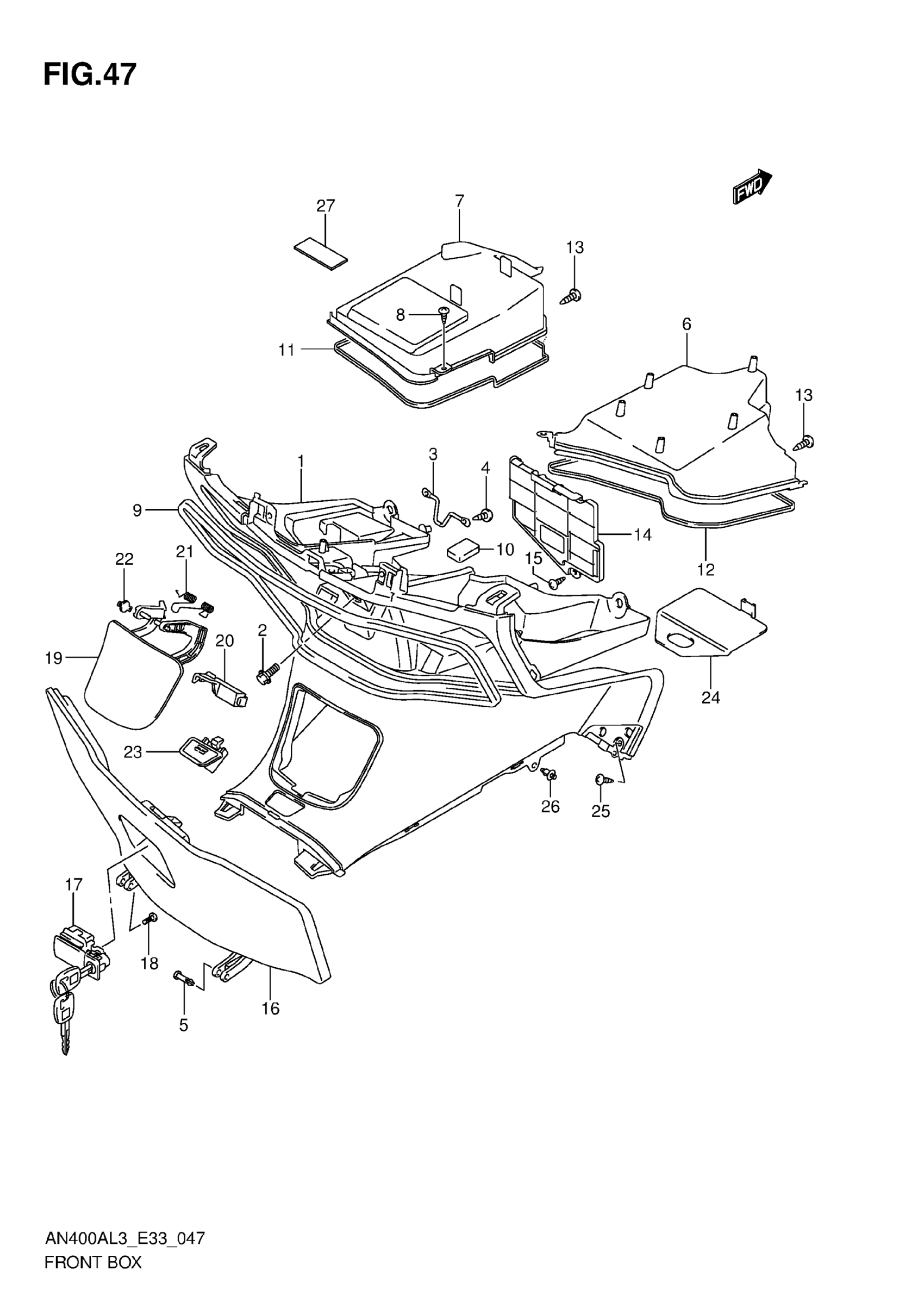

Suzuki AN400AL3 (2013) FRONT BOX Diagram

#

Description
Price

1

BOX, FRONT (BLACK)

92111-05H11-291

$280.60

2

BOLT (6X16)

09116-06205

$2.63

3

STRIKER, FRONT BOX

92171-05H00

Unavailable

4

SCREW

03541-0516A

$1.49

5

PIN, BOX HINGE

73423-50G00

$5.10

6

COVER, BOX INNER RH (BLACK) This part replaces 92112-05H01-291.

92112-05H02-291

Unavailable

7

COVER, BOX INNER LH (BLACK) This part replaces 92113-05H00-291.

92113-05H01-291

Unavailable

8

SCREW

03541-0512A

$1.49

9

CUSHION, BOX NO.1

92114-05H00

Unavailable

10

CAP, FRONT BOX

92115-05H00

Unavailable

11

CUSHION, BOX NO.2

92116-05H00

$5.99

12

CUSHION, INNER

92116-05H00

$5.99

13

SCREW

03541-0616A

$2.02

14

LID, BATTERY BOX (BLACK) This part replaces 92191-05H00-291.

92191-05H01-291

$24.15

15

SCREW

03541-0616B

$2.59

16

LID, FRONT BOX (BLACK) This part replaces 92120-05H00-291.

92120-05H10-291

$192.67

17

LOCK SET, FRONT BOX

92100-10841

$166.35

18

SCREW

02142-0512B

$2.05

19

LID, FUEL (BLACK)

92161-05H00-291

$42.45

20

LOCK,FUEL LID ARM

92162-14G01

$13.85

21

SPRING, FUEL LID

92163-14G01

$11.90

22

DAMPER,FUEL LID

92164-14G00

$14.77

23

LOCK,FUEL LID (BLACK)

92180-05H01-291

$23.63

24

PLATE, ELECTRIC PARTS

47412-14G01

$17.70

25

SCREW

03541-0516A

$1.49

26

CLIP (BLACK)

09409-08308-5ES

$1.97

27

CUSHION

36920-02200

$3.37
