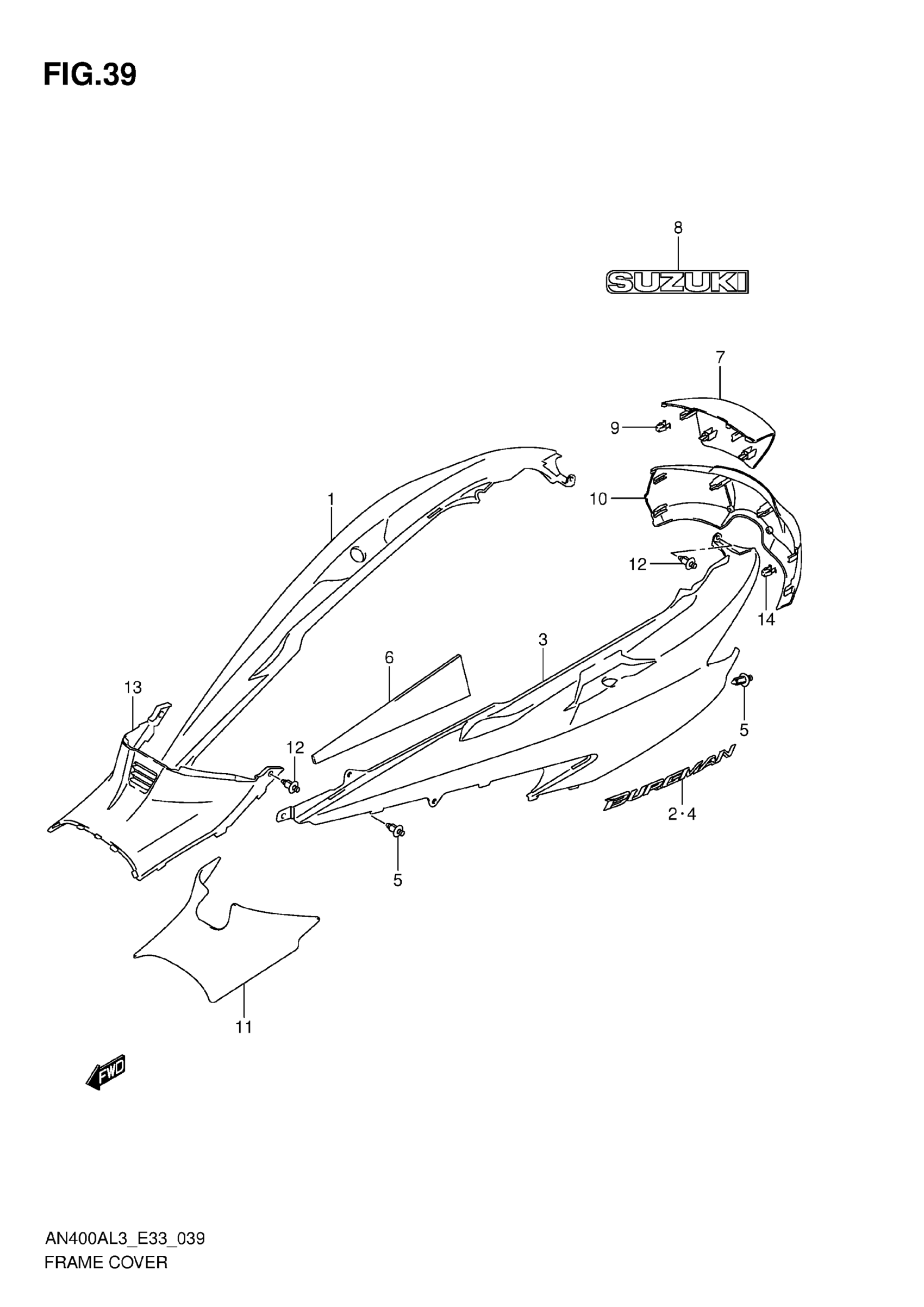

Suzuki AN400AL3 (2013) FRAME COVER (AN400AL3 E33) Diagram

#

Description
Price

1

COVER,FRAME RH | FOR AHW This part replaces 47111-05H00-PGZ.

47111-05H01-PGZ

Unavailable

1

COVER, FRAME RH (WHITE) | FOR YBD

47111-05H00-YBD

Unavailable

1

COVER, FRAME RH (BLACK) | FOR YKV

47111-05H00-YKV

$279.24

2

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

3

COVER,FRAME,L(G | FOR AHW This part replaces 47211-05H00-PGZ.

47211-05H01-PGZ

$255.22

3

COVER, FRAME LH (WHITE) | FOR YBD

47211-05H00-YBD

Unavailable

3

COVER, FRAME LH (BLACK) | FOR YKV

47211-05H00-YKV

Unavailable

4

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

5

CLIP (BLACK)

09409-08308-5ES

$1.97

6

CUSHION, FRAME COVER

47162-05H00

Unavailable

7

COVER, FRAME CENTER (GRAY) | FOR AHW

47311-05H00-PGZ

Unavailable

7

COVER, FRAME CENTER (WHITE) | FOR YBD

47311-05H00-YBD

Unavailable

7

COVER, FRAME CENTER (BLACK) | FOR YKV

47311-05H00-YKV

$157.37

8

EMBLEM, "SUZUKI" | FOR AHW

68131-05H70-AJK

Unavailable

8

EMBLEM,SUZUKI | FOR YBD This part replaces 68131-05H50-YJH.

68131-05H51-YJH

$8.13

8

EMBLEM, "SUZUKI" (SILVER/BLACK) | FOR YKV

68131-05H70-HSE

$10.98

9

CLIP

09409-08326

$2.48

10

COVER, FRAME LOWER (GRAY) | FOR AHW

47321-05H00-PGZ

$221.65

10

COVER, FRAME LOWER (WHITE) | FOR YBD

47321-05H00-YBD

Unavailable

10

COVER, FRAME LOWER (BLACK) | FOR YKV

47321-05H00-YKV

$221.65

11

CUSHION, FRONT

47161-05H00

Unavailable

12

CLIP (BLACK)

09409-08308-5ES

$1.97

13

COVER, FRAME FRONT (BLACK)

47351-05H01-291

Unavailable

14

CLIP

09409-08326

$2.48
