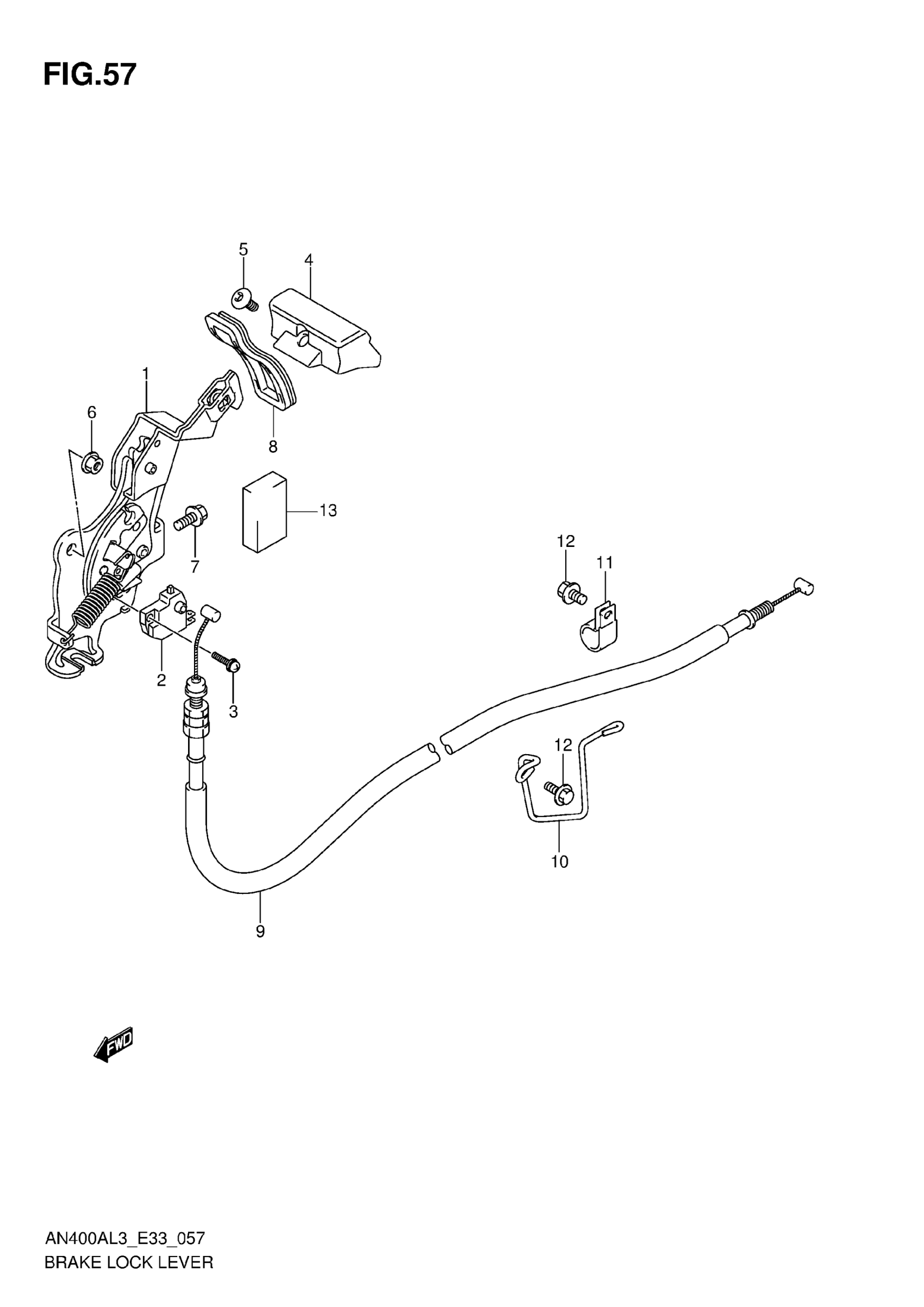

Suzuki AN400AL3 (2013) BRAKE LOCK LEVER Diagram

#

Description
Price

1

LEVER,BRAKE LOCK

57810-05H00

Unavailable

2

SWITCH ASSY,BRAKE LOCK

57860-05H01

Unavailable

3

SCREW, SWITCH

57852-10G00

Unavailable

4

KNOB,BRAKE LOCK This part replaces 57820-05H01.

57820-05H02

$71.07

5

SCREW (5X13)

09139-05086

$6.47

6

NUT

08316-1006A

$2.19

7

BOLT

01550-0616A

$1.97

8

GROMMET,LEVER SEAL

57951-05H00

$10.73

9

CABLE, BRAKE LOCK

58810-05H00

$85.15

10

GUIDE, CABLE

58621-05H10

Unavailable

11

CLAMP

09403-16406

Unavailable

12

BOLT

01550-0620A

$1.97

13

CUSHION

57851-05H00

$4.72
