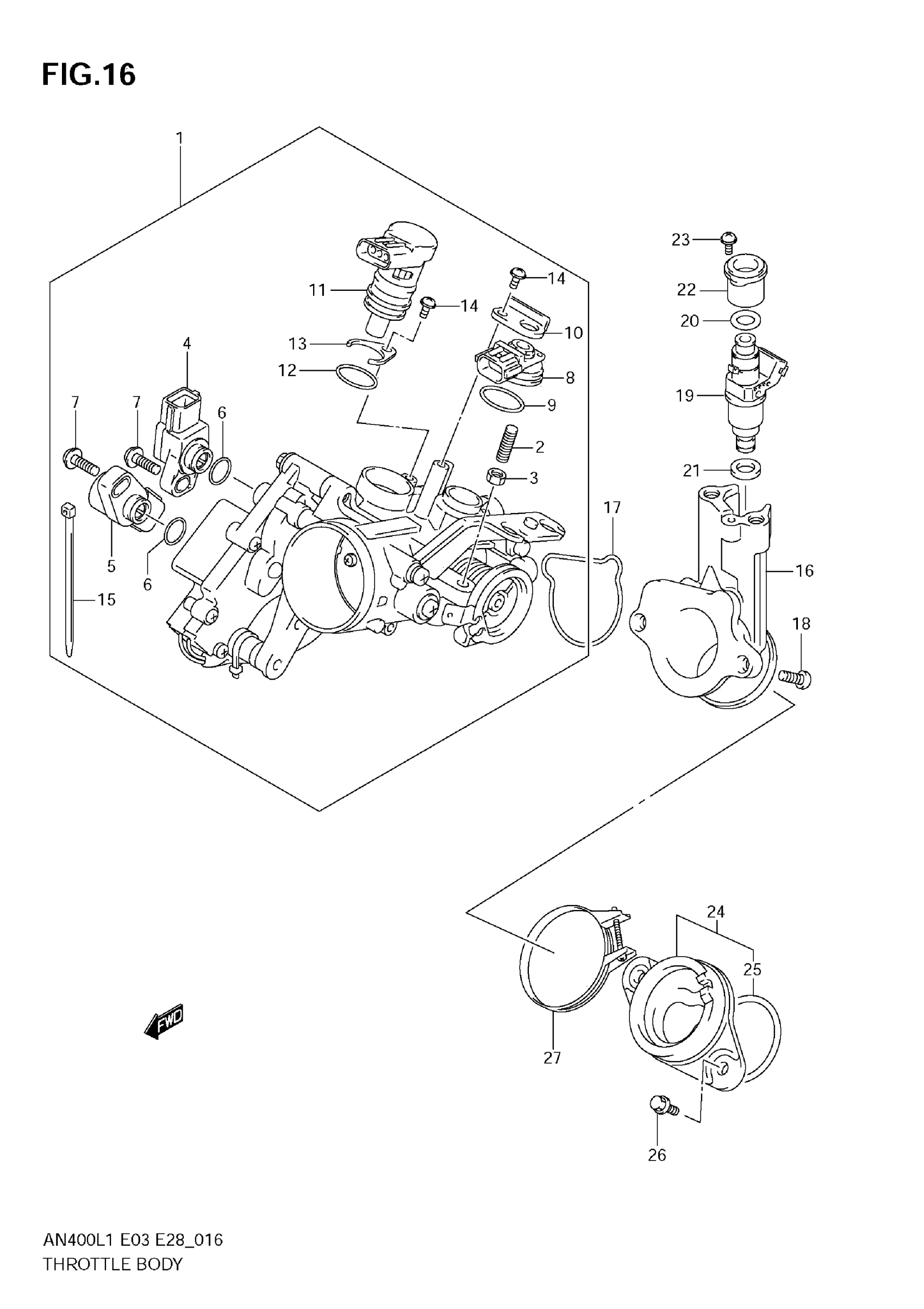

Suzuki AN400AL1 (2011) THROTTLE BODY (AN400 L1 E3) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE This part replaces 13401-05H20.

13401-05H21

Unavailable

2

SCREW

13267-14G00

Unavailable

3

NUT

13661-14G00

Unavailable

4

SENSOR ASSY, MAIN

13580-18G00

$191.97

5

.SENSOR ASSY, SUB This part replaces 13580-05H00.

13580-05H01

$299.27

6

O RING

13575-40F00

$3.85

7

SCREW

13605-40F00

$3.50

8

SENSOR, MAP

15620-05H00

$304.30

9

.O RING This part replaces 15621-05H00.

15621-05H01

$10.22

10

PLATE

15622-05H00

Unavailable

11

.VALVE, ISC This part replaces 18117-05H21.

18117-05H22

$289.43

12

O RING

18119-05H00

$4.47

13

PLATE

13428-06F30

$7.30

14

SCREW

02112-14087

$2.58

15

CLAMP (L:145)

09407-14407

$2.80

16

INTAKE PIPE

13111-05H00

$326.17

17

.O RING

13278-05H00

$15.07

18

BOLT

13612-14G00

$2.73

19

INJECTOR ASSY

15710-05H01

$264.58

20

O-RING

15721-10G00

$8.31

21

RING

15722-45G00

$14.52

22

COVER

13473-14G00

$16.67

23

SCREW

13601-14G00

$3.42

24

PIPE ASSY,INTAKE This part replaces 13101-05H00.

13101-05H01

$58.27

25

O RING (D:2.4,ID:41.7)

09280-42003

$7.80

26

BOLT (6X16)

09119-06092

$2.87

27

CLAMP

13170-39H00

Unavailable
