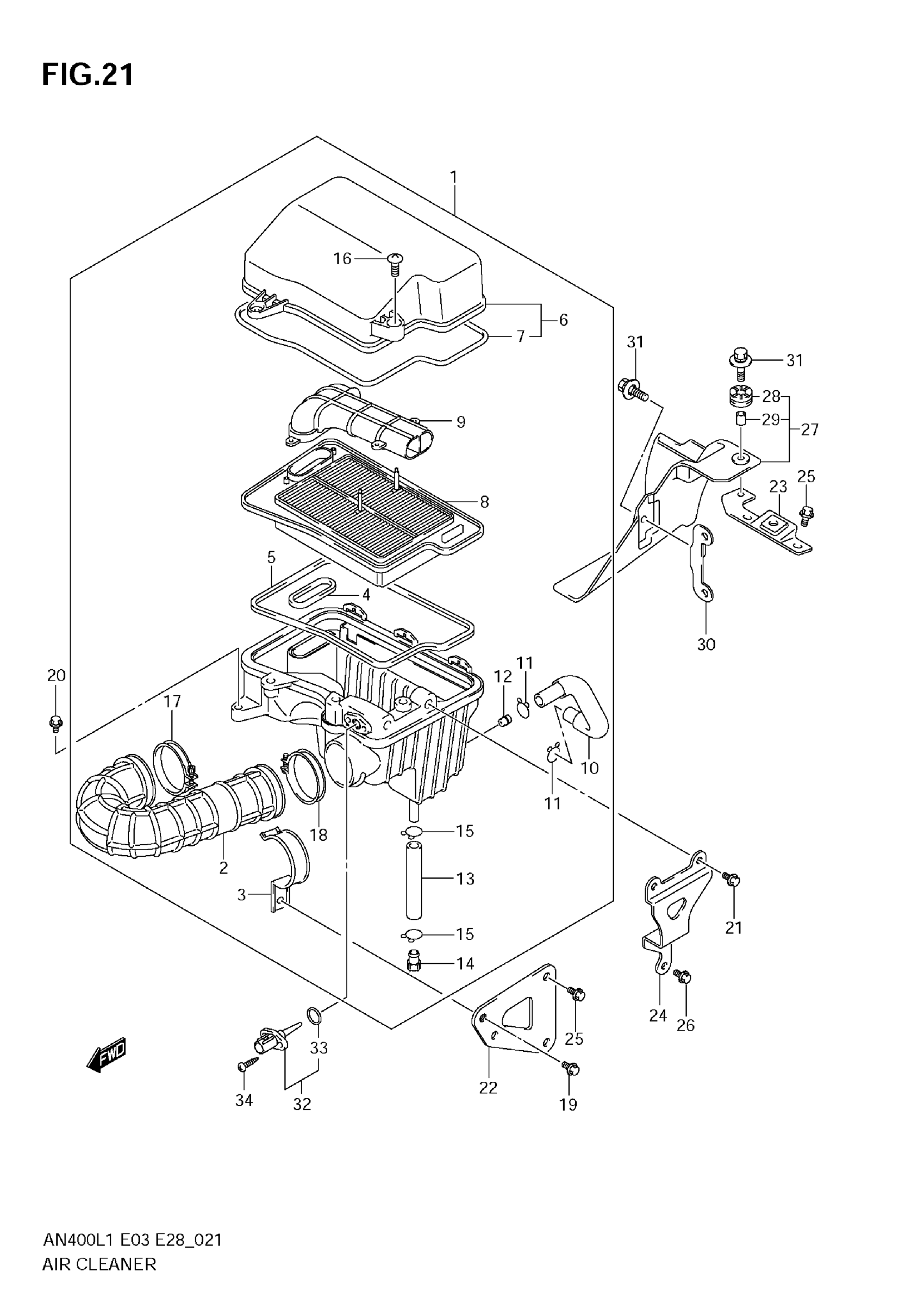

Find the part on the AIR Cleaner diagram for your 2011 Suzuki AN400AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki AN400AL1 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-05HA1

1
Out of stock

2

TUBE, OUTLET

13881-05HA0

—
Out of stock

3

BRACKET

13882-05HA0

—
Out of stock

4

GASKET, FILTER

13747-05H01

1
Out of stock

5

GASKET, CASE

13748-05H00

1
Out of stock

6

CAP

13740-05H01

1
Out of stock

7

GASKET, CAP

13746-05H01

1
Out of stock

8

FILTER

13781-05H00

1
Out of stock

9

TUBE, INLET

13891-05H00

1
Out of stock

10

TUBE,BREATHER This part replaces 13853-05H00.

13853-05H01

1
Out of stock

11

CLIP

09401-15101

2
Out of stock

12

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

1
Out of stock

13

TUBE, DRAIN

13871-05H00

—
Out of stock

14

PLUG, DRAIN TUBE

13877-00190

1
Out of stock

15

CLIP

09401-14301

2
Out of stock

16

SCREW

02142-0616A

2
Out of stock

17

CLAMP

13170-25D01

1

$7.45

In stock

18

CLAMP

09402-58208

1
Out of stock

19

BOLT

01550-0612A

1
Out of stock

20

BOLT (6X30)

09116-06103

1
Out of stock

21

BOLT

01550-0612A

2
Out of stock

22

BRACKET, FRONT

13760-05H00

1
Out of stock

23

BRACKET, REAR

13760-05H20

1
Out of stock

24

BRACKET, LH

13760-05H10

1
Out of stock

25

BOLT

01547-0612A

4
Out of stock

26

BOLT

01550-0612A

2
Out of stock

27

COWLING, CYLINDER

17120-05H01

—
Out of stock

28

CUSHION

09320-10051

2
Out of stock

29

SPACER (6.5X10X12)

09180-06290

2
Out of stock

30

BRACKET

17122-05H00

1
Out of stock

31

BOLT (6X25)

09118-06097

2
Out of stock

32

SENSOR, AIR TEMP This part replaces 13650-14G11.

13650-14G10

1
Out of stock

33

O RING

13655-14G10

1
Out of stock

34

SCREW

03511-0516A

2
Out of stock
