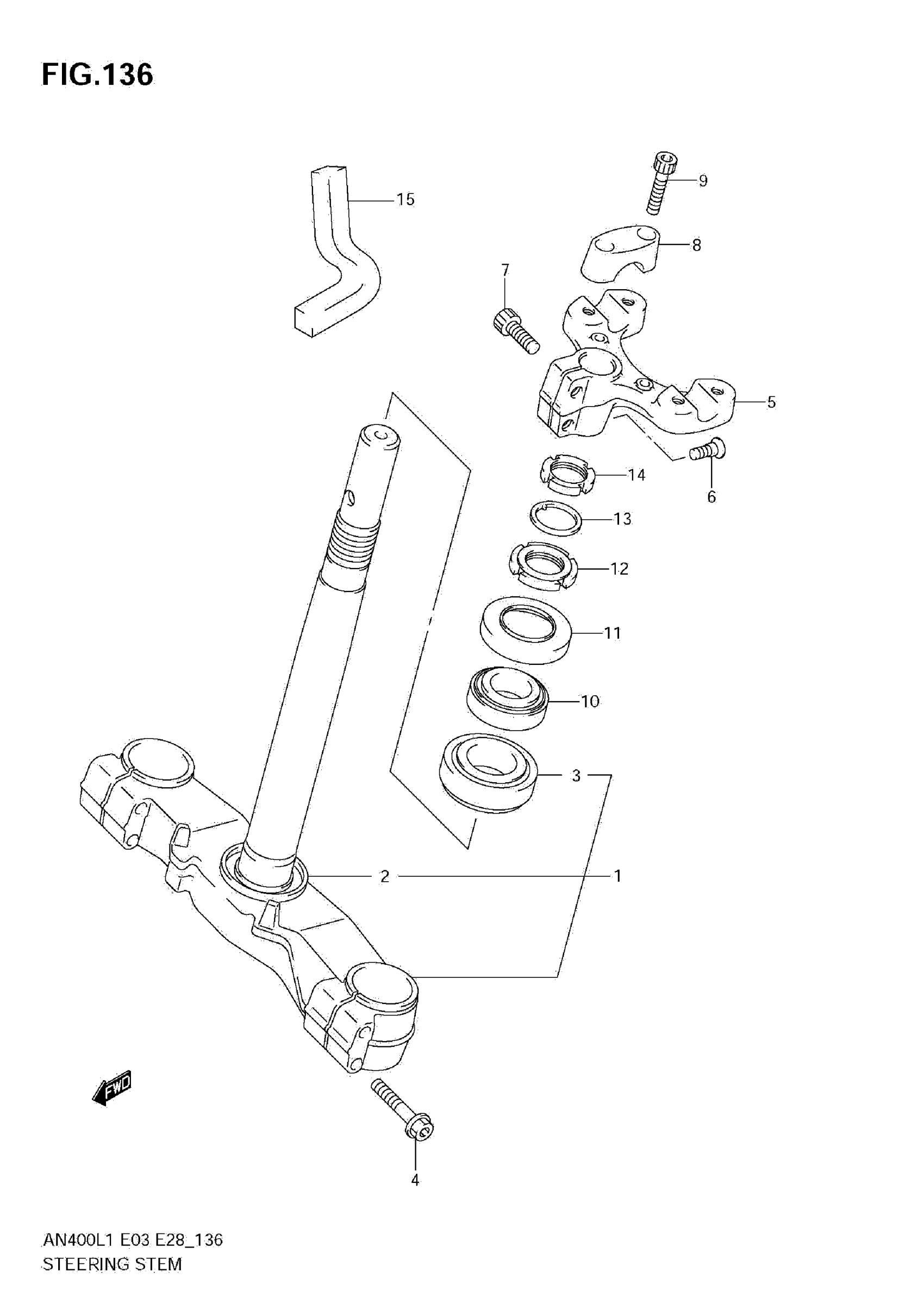

Suzuki AN400AL1 (2011) STEERING STEM (AN400A L1 E33) Diagram

BRACKET, FRONT FORK UNDER

51410-05H00

$850.02

SEAL, STEERING LOWER

51644-12C00

$9.44

BEARING (30X55X17)

09265-30020

$44.41

BOLT

51451-05H00

$6.55

BRACKET, FRONT FORK UPPER

51311-14F10

$206.78

SCREW, FRONT FORK UPPER

56123-14F10

$6.03

BOLT (10X25)

09106-10067

Unavailable

HOLDER, HANDLE BAR (BLACK)

56211-09F00-291

$29.37

BOLT (8X40)

09106-08122

Unavailable

BEARING (25X47X15)

09265-25038

$45.57

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

NUT, STEERING STEM

51631-28000

$17.37

WASHER

09166-26001

$2.07

NUT, STEERING STEM LOCK

51632-02400

$16.87

CUSHION, STEERING LOCK

45289-05H00

$4.11
