2011 Suzuki AN400AL1 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2011 Suzuki AN400AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

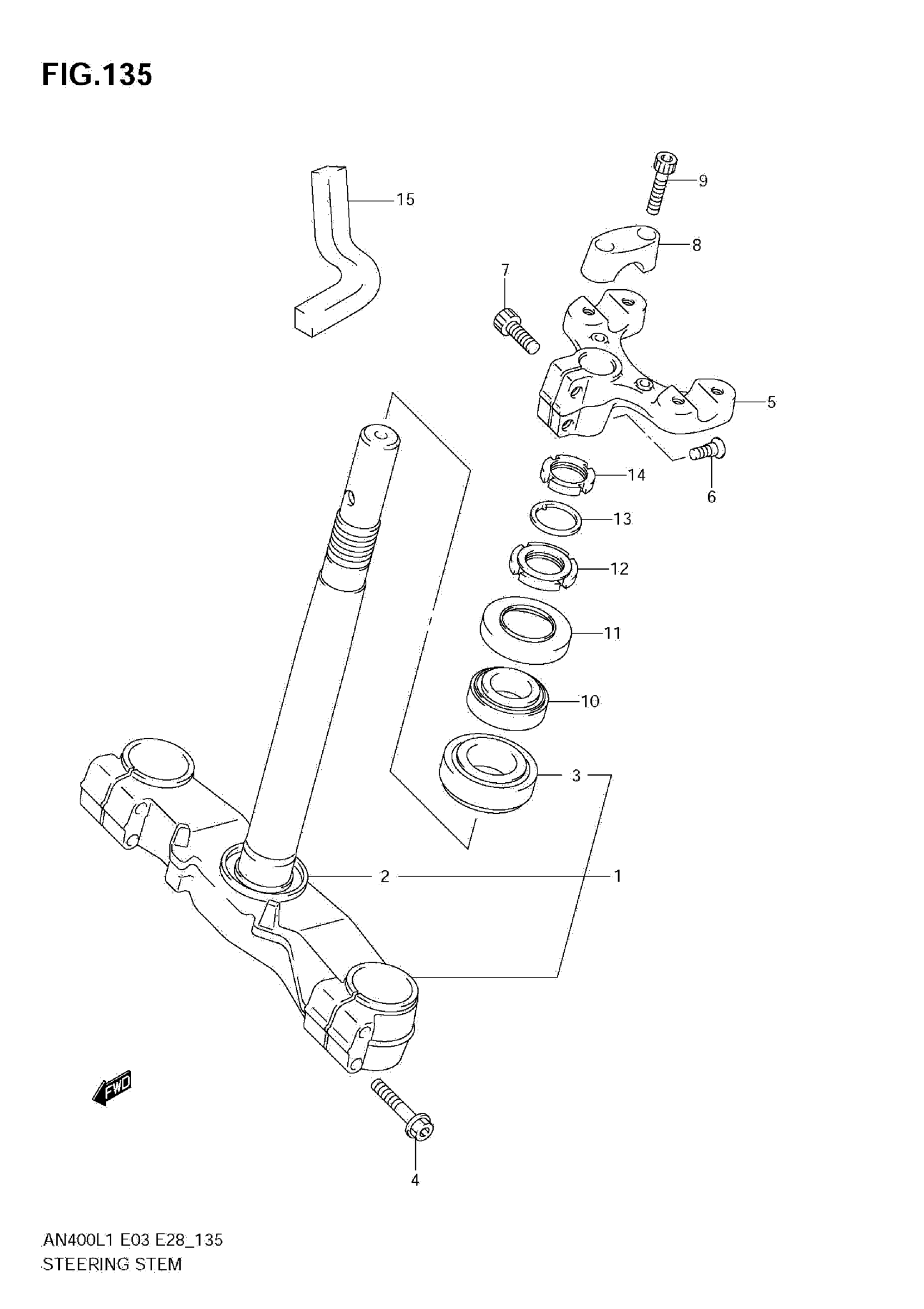

2011 Suzuki AN400AL1 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FORK UNDER

51410-05H00

1
Out of stock

2

SEAL, STEERING LOWER

51644-12C00

1
Out of stock

3

BEARING (30X55X17)

09265-30020

1
Out of stock

4

BOLT

51451-05H00

4
Out of stock

5

BRACKET, FRONT FORK UPPER

51311-14F10

1
Out of stock

6

SCREW, FRONT FORK UPPER

56123-14F10

1
Out of stock

7

BOLT (10X25)

09106-10067

2
Out of stock

8

HOLDER, HANDLE BAR (BLACK)

56211-09F00-291

2
Out of stock

9

BOLT (8X40)

09106-08122

4
Out of stock

10

BEARING (25X47X15)

09265-25038

1
Out of stock

11

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock

12

NUT, STEERING STEM

51631-28000

1
Out of stock

13

WASHER

09166-26001

1
Out of stock

14

NUT, STEERING STEM LOCK

51632-02400

1
Out of stock

15

CUSHION, STEERING LOCK

45289-05H00

1
Out of stock
