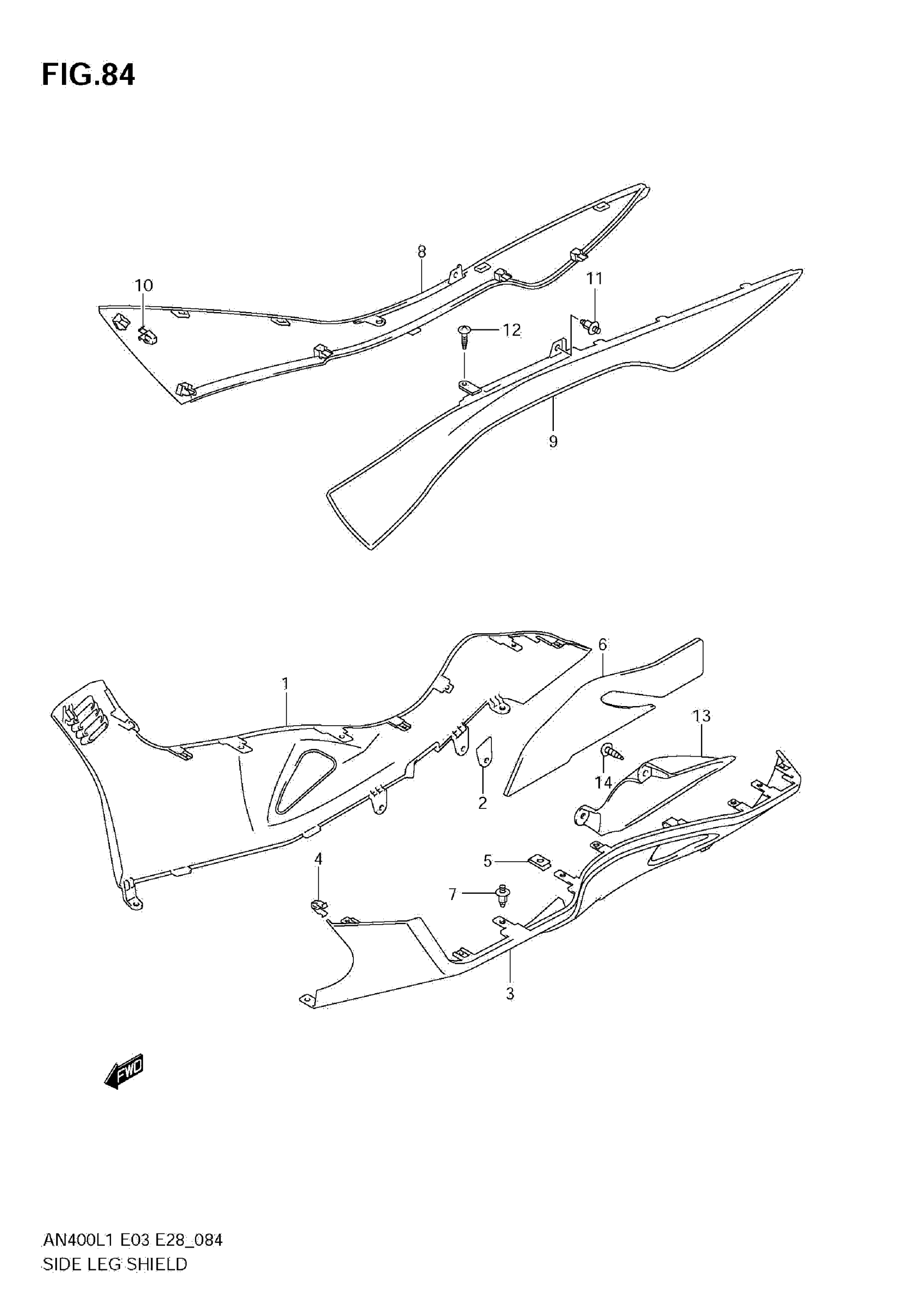

Suzuki AN400AL1 (2011) SIDE LEG SHIELD (AN400A L1 E33) Diagram

#

Description
Price

1

SHIELD, LEG SIDE RH (WHITE)

48171-05H00-YPA

$477.80

1

SHIELD, LEG SIDE RH (GRAY)

48171-05H00-YHG

$477.80

2

SHIELD, HEAT RH

48172-05H00

Unavailable

3

SHIELD, LEG SIDE LH (WHITE)

48181-05H01-YPA

$477.80

3

SHIELD, LEG SIDE LH (GRAY)

48181-05H01-YHG

$477.80

4

CLIP

09409-08326

$2.48

5

NUT

09148-05038

$1.97

6

CUSHION, LH

48182-05H01

Unavailable

7

CLIP (BLACK)

09409-08308-5ES

$1.97

8

COVER, LEG CENTER RH (BLACK)

48141-05H00-291

$133.65

9

COVER, LEG CENTER LH (BLACK)

48142-05H00-291

$133.65

10

CLIP

09409-08326

$2.48

11

CLIP (BLACK)

09409-08308-5ES

$1.97

12

SCREW

03541-0516A

$1.49

13

COVER, LEG SIDE & L

48185-05H00

Unavailable

14

SCREW

03541-0512A

$1.49
