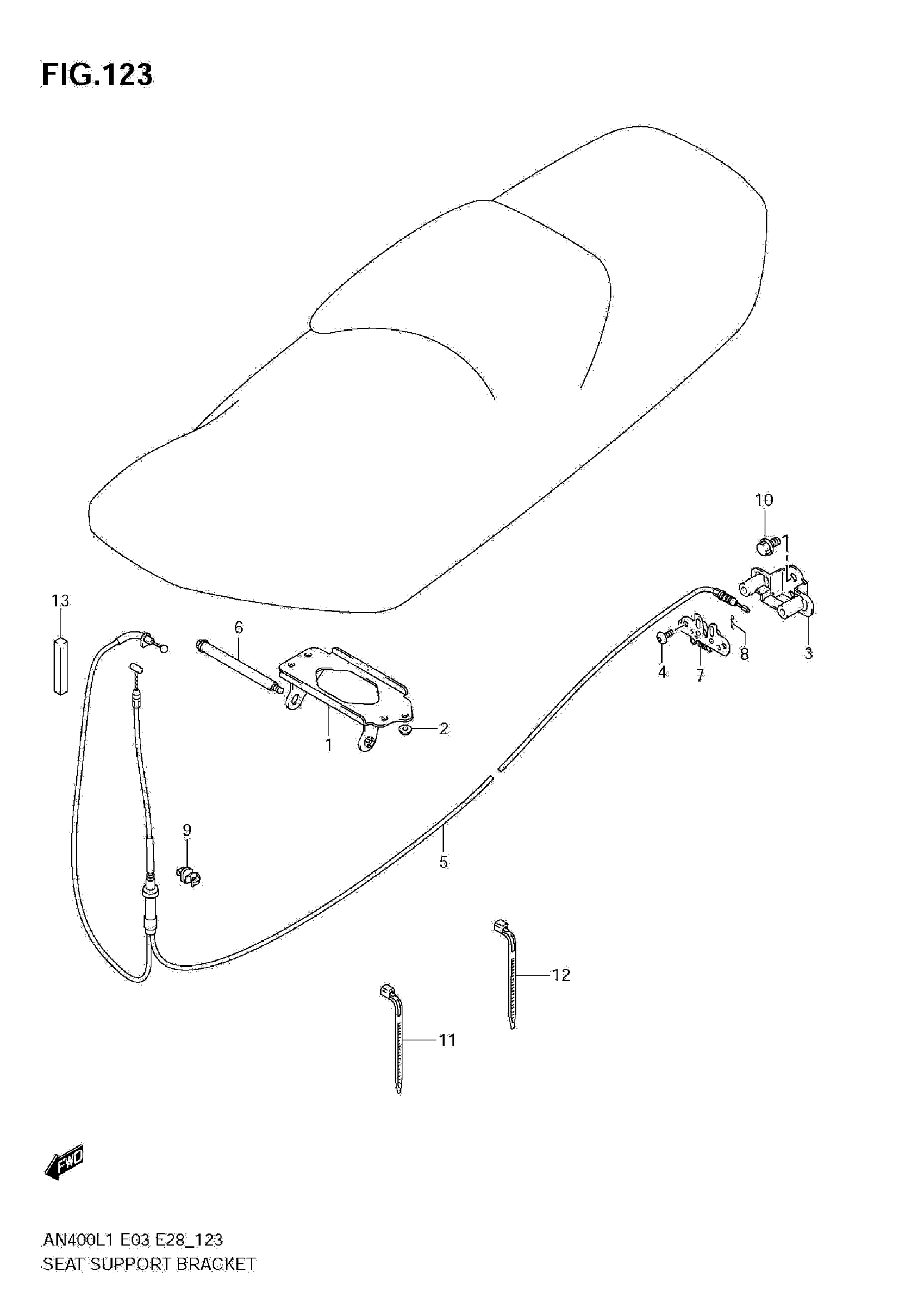

Suzuki AN400AL1 (2011) SEAT SUPPORT BRACKET Diagram

#

Description
Price

1

BRACKET, SEAT HINGE

45240-05H00

Unavailable

2

NUT

08316-1006A

$2.19

3

BRACKET, SEAT SUPPORT

45220-05H00

Unavailable

4

SCREW (6X16)

09139-06139

$3.23

5

CABLE, SEAT LOCK This part replaces 45280-05H01.

45280-05H02

$46.90

6

BOLT,SEAT HINGE BRKT

45215-05H00

Unavailable

7

LOCK ASSY, SEAT STRIKER

45700-14FD2

$75.03

8

CLIP

09385-05004

$1.55

9

CLAMP

09403-07331

$3.50

10

BOLT

01550-1016A

$3.10

11

CLAMP(L:190)

09407-19401

$3.05

12

CLAMP (L:125)

09407-14403

$2.26

13

CUSHION, STEERING LOCK

45289-05H00

$4.11
