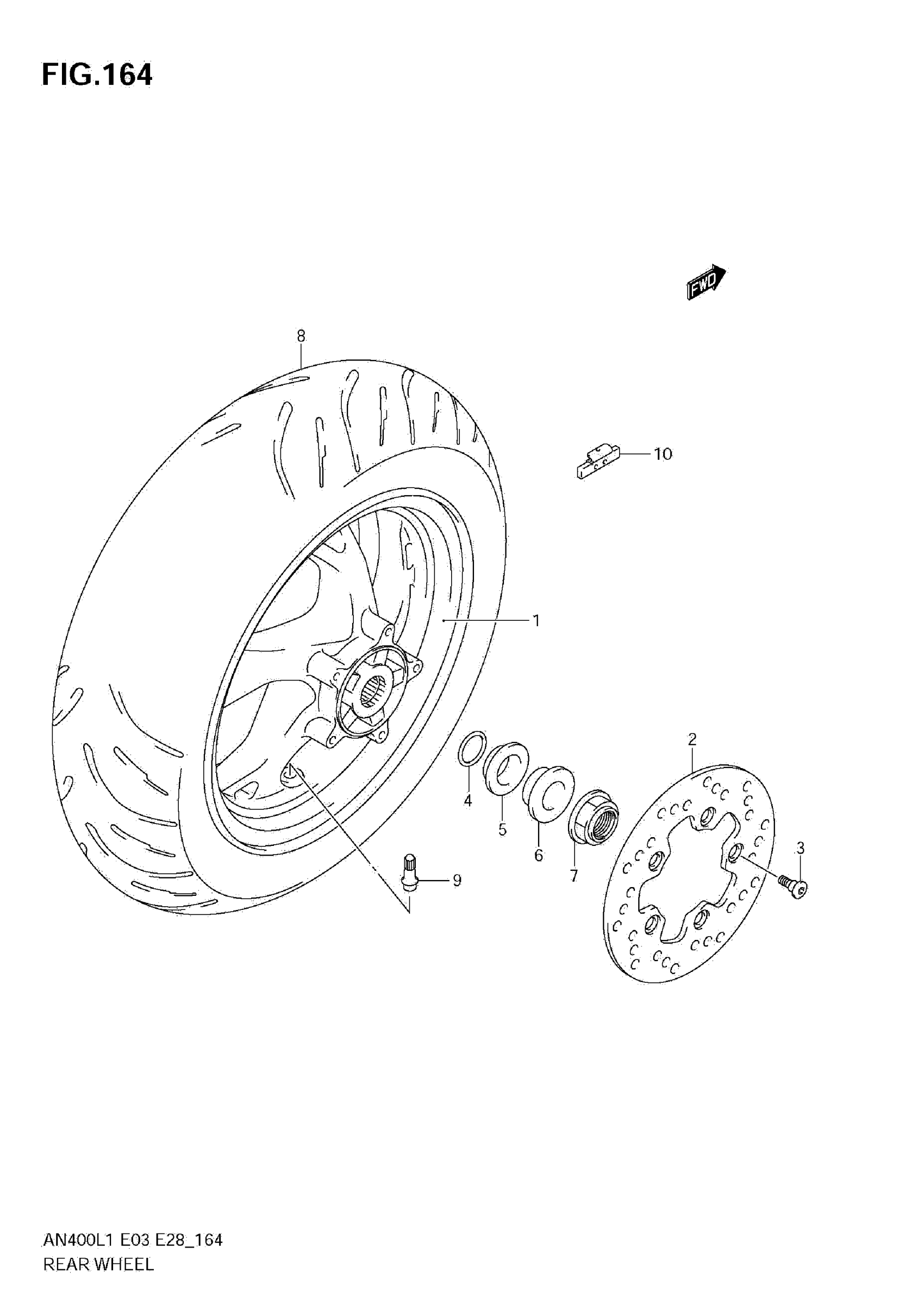

Suzuki AN400AL1 (2011) REAR WHEEL (AN400 L1 E3) Diagram

WHEEL, REAR (13M/CXMT4.00) (SILVER)

64110-05H00-YD8

Unavailable

DISC,REAR BRAKE

69211-05H00

$205.55

BOLT (8X21)

09106-08160

$3.57

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

SPACER,REAR AXLE INNER

64741-05H00

Unavailable

SPACER,REAR AXLE OUTER

64751-05H00

Unavailable

NUT

09159-20014

$37.47

TIRE, REAR (150/70-13M/C 64S)

65110-05H00

$307.90

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

BALANCER, WHEEL NO.1

43222-73H10

$5.82

BALANCER, WHEEL NO.2

43224-73H10

$5.50

BALANCER, WHEEL NO.3

43226-73H10

$6.42
