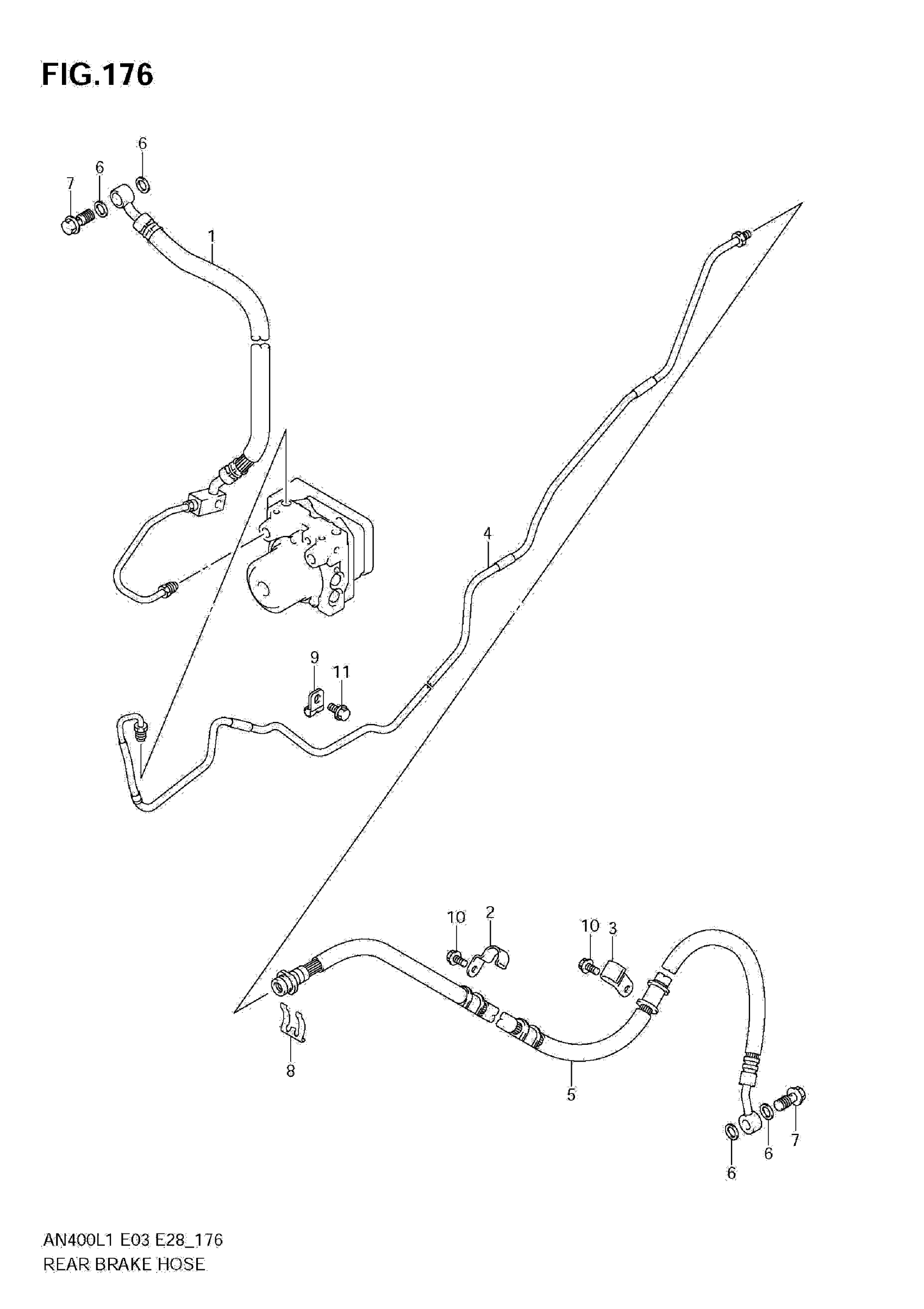

Suzuki AN400AL1 (2011) REAR BRAKE HOSE (AN400A L1 E33) Diagram

#

Description
Price

1

HOSE ASSY, RR BRAKE NO.1

69200-05H00

$100.25

2

CLAMP, RR BRAKE HOSE NO.1

69261-05H00

Unavailable

3

CLAMP, RR BRAKE HOSE NO.2

69266-05H00

Unavailable

4

PIPE, REAR BRAKE

69450-05H00

$73.92

5

HOSE This part replaces 69480-05H00.

69480-05H01

$85.38

6

WASHER (10X15X1.5)

09161-10009

$1.84

7

UNION

09360-10062

$6.43

8

E RING This part replaces 09383-13001.

09383-13003

$2.30

9

CLAMP

09403-07401

Unavailable

10

BOLT

01547-0612A

$2.03

11

BOLT

01547-0616A

$2.03
