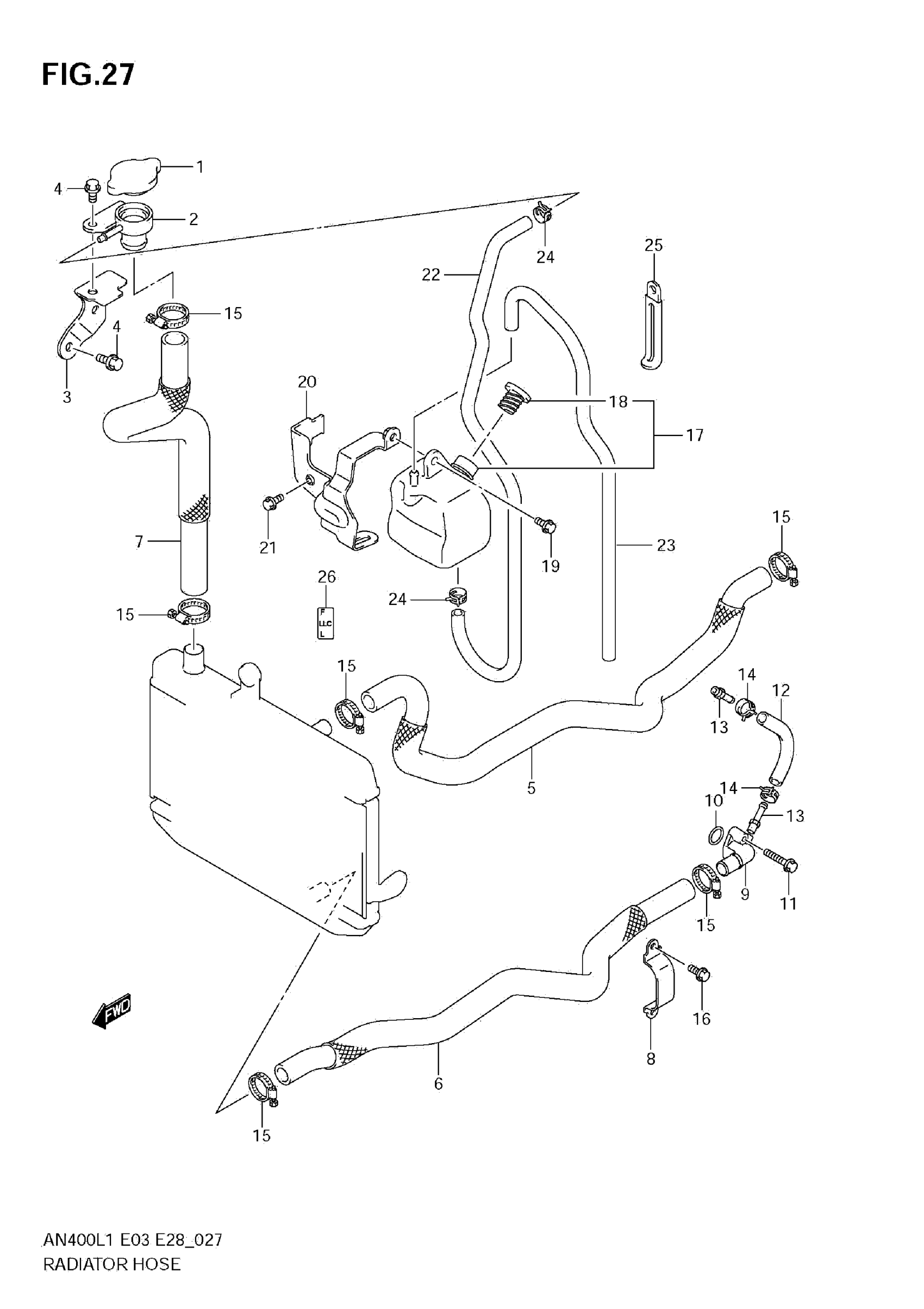

Suzuki AN400AL1 (2011) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR

17730-08J00

$42.50

2

CONDUCTION

17791-24D00

$61.15

3

BRACKET

17790-05H00

Unavailable

4

BOLT

01550-0610A

$1.97

5

HOSE, RADIATOR INLET This part replaces 17851-05H10.

17851-19K00

$68.73

6

HOSE, RADIATOR OUTLET This part replaces 17852-05H00.

17852-19K00

$57.25

7

HOSE, CONDUCTION This part replaces 17855-05H00.

17855-19K00

$46.08

8

PLATE,WATER HOSE CLAMP

17859-05H00

Unavailable

9

CONNECTOR, WATER INLET This part replaces 17861-05H00.

17861-05H01

$33.50

10

O RING (D:2.4,ID:17.8)

09280-18004

$5.18

11

BOLT

01547-0630A

$2.32

12

HOSE (7.5X14.5X600) | L:600->130

09356-75141-600

Unavailable

13

UNION

09362-09011

$8.28

14

CLIP This part replaces 09401-12409.

09401-12414

$3.26

15

CLAMP

09402-28513

$6.88

16

BOLT

01547-0616A

$2.03

17

TANK ASSY,RESERVOIR

17910-05H00

Unavailable

18

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

19

BOLT (6X12)

09111-06085

$4.54

20

BRACKET,RSVR TANK

17920-05H00

Unavailable

21

BOLT

01547-0616A

$2.03

22

HOSE,RESERVOIR TANK INLET This part replaces 17981-10G00.

17981-10G01

$12.67

23

HOSE, TANK OVERFLOW

17900-35810

$35.45

24

CLIP

09401-08411

$1.78

25

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

26

LABEL,RESERVOIR TANK LEVEL

17919-05H00

$3.28
