Partiron

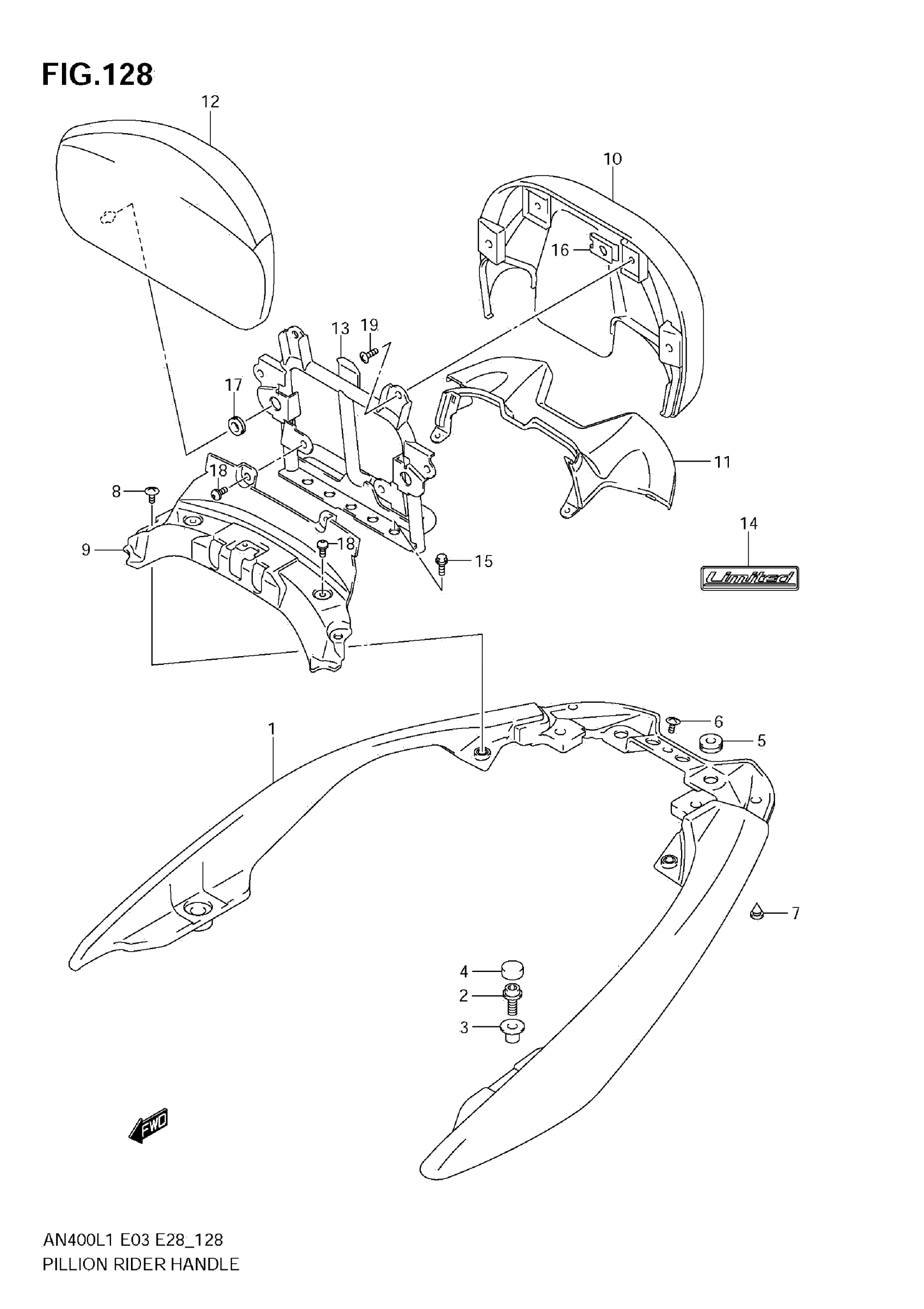

Suzuki AN400AL1 (2011) PILLION RIDER HANDLE (AN400ZA L1 E33) Diagram

#

Description
Price

1

HANDLE, PILLION RIDER (WHITE) This part replaces 46210-05H02-YPA.

46210-05H03-YPA

Unavailable

1

HANDLE, PILLION RIDER (BROWN)

46210-05H02-YWG

Unavailable

2

BOLT (8X25)

09106-08151

$3.70

3

WASHER

09169-08049

$4.11

4

CAP, FRONT

46271-14G00

$7.53

5

CUSHION

09320-08028

$3.04

6

SCREW (6X16)

09139-06168

$2.62

7

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

8

SCREW (6X16)

09139-06168

$2.62

9

COVER, BACKREST FRONT (BLACK)

46215-05H50-291

Unavailable

10

COVER, BACKREST REAR (BLACK)

46216-05H50-291

Unavailable

11

COVER, BACKREST REAR LOWER (WHITE)

46217-05H50-YPA

Unavailable

11

COVER, BACKREST REAR LOWER (BROWN)

46217-05H50-YWG

Unavailable

12

BRACKREST ASSY, PILLION RIDER (BROWN) | FOR YPA

46220-05H50-DZW

Unavailable

12

BRACKREST ASSY, PILLION RIDER (BLACK) | FOR YWG

46220-05H50-FC8

Unavailable

13

BACKET, PILLION BACKREST

46250-05H50

Unavailable

14

EMBLEM, "LIMITED" (SILVER)

68135-14FA0-YCR

Unavailable

15

BOLT (8X20)

09106-08161

$3.70

16

NUT

09148-06018

$3.16

17

CUSHION

09320-08049

$3.26

18

CLIP

09409-06314-5PK

$2.78

19

SCREW

02142-0612B

$2.05
