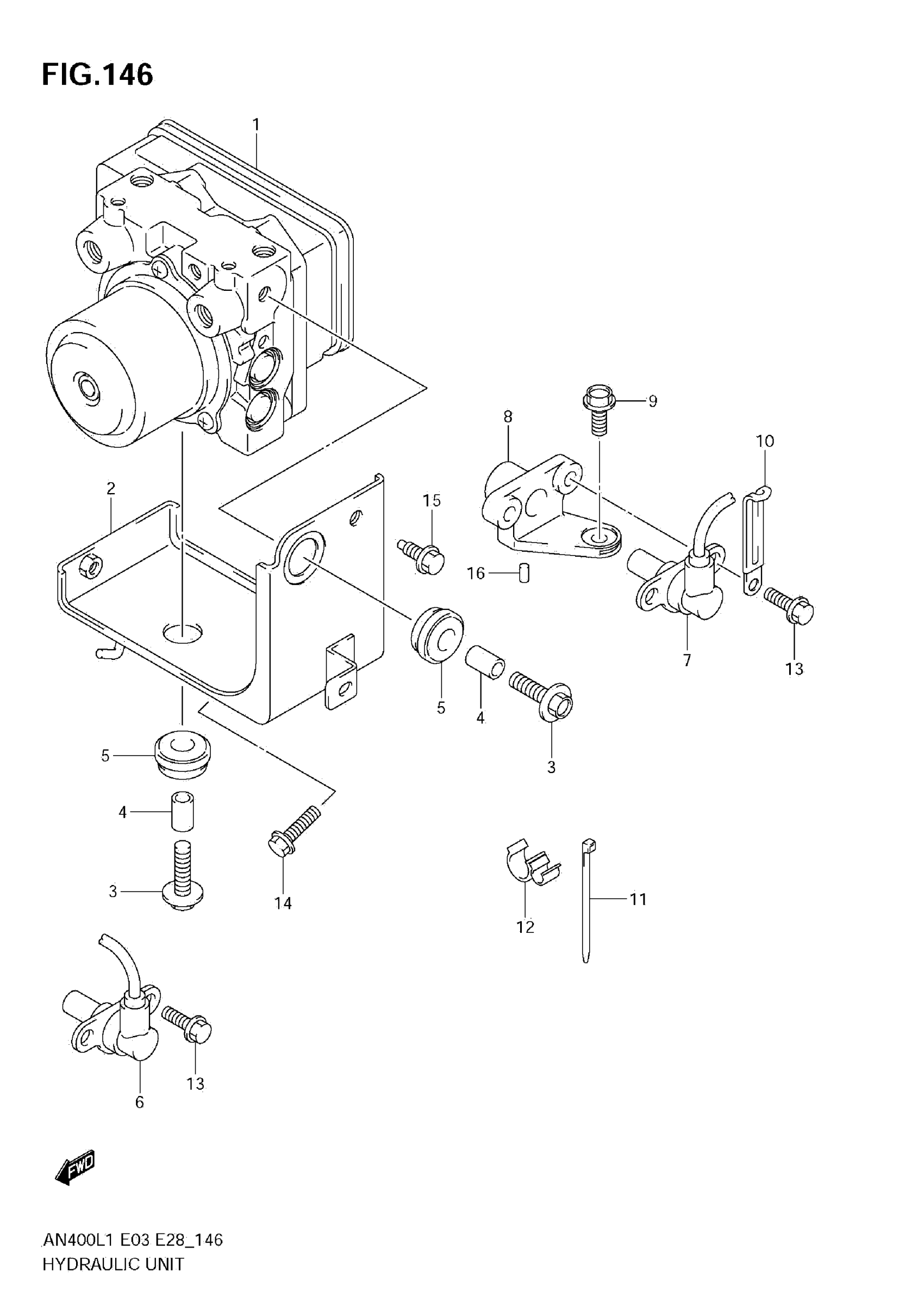

Suzuki AN400AL1 (2011) HYDRAULIC UNIT (AN400ZA L1 E33) Diagram

Description

Price

UNIT ASSY, HYDRAULIC ABS This part replaces 55610-05H00.

55610-05H01

$2,226.40

HOLDER, HYDR UNIT

55660-05H00

Unavailable

BOLT, HYDR UNIT MTG

55661-10G00

Unavailable

SPACER, HYDR UNIT MTG

55662-10G00

Unavailable

RUBBER, HYDR UNIT MTG

55663-10G00

Unavailable

SENSOR, FR WHEEL ABS

55710-05H00

$269.93

SENSOR, RR WHEEL ABS

65710-05H00

Unavailable

BRACKET, SPEED SENSOR RR

65721-05H00

Unavailable

BOLT (6X16)

09103-06240

$3.08

CLAMP (L:45)

09404-06429

$1.83

CLAMP (L:145)

09407-14407

$3.57

CLAMP

09408-00266

$2.51

BOLT

01547-0612A

$2.03

BOLT

01550-0610A

$1.97

BOLT (6X16)

09135-06027

$2.45

PIN (4X13.8)

04221-04089

$1.49
