2011 Suzuki AN400AL1 Hydraulic Unit Diagram

← All diagrams

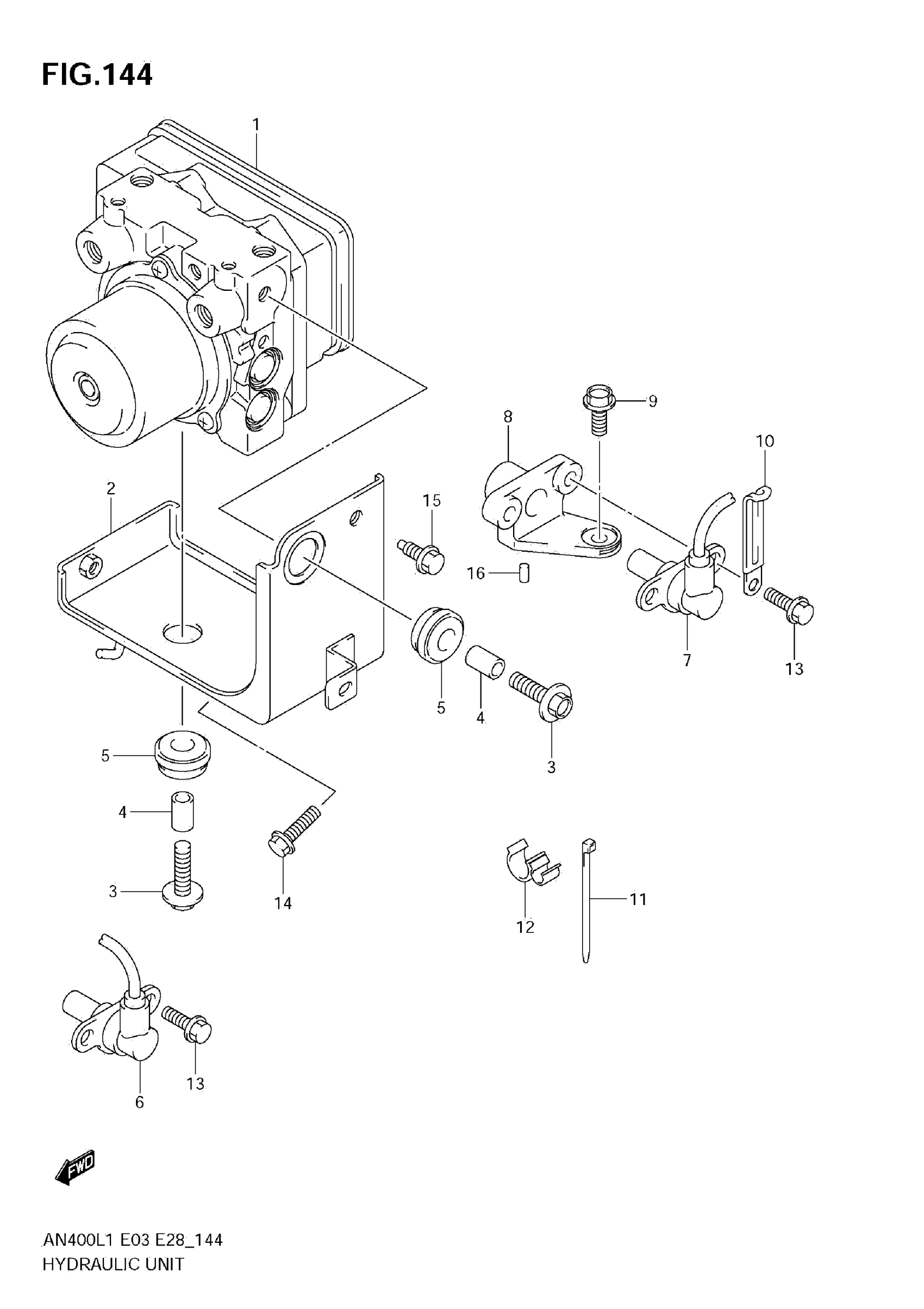

Find the part on the Hydraulic Unit diagram for your 2011 Suzuki AN400AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki AN400AL1 Hydraulic Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNIT ASSY, HYDRAULIC ABS This part replaces 55610-05H00.

55610-05H01

1
Out of stock

2

HOLDER, HYDR UNIT

55660-05H00

—
Out of stock

3

BOLT, HYDR UNIT MTG

55661-10G00

3
Out of stock

4

SPACER, HYDR UNIT MTG

55662-10G00

3
Out of stock

5

RUBBER, HYDR UNIT MTG

55663-10G00

3
Out of stock

6

SENSOR, FR WHEEL ABS

55710-05H00

1
Out of stock

7

SENSOR, RR WHEEL ABS

65710-05H00

1
Out of stock

8

BRACKET, SPEED SENSOR RR

65721-05H00

1
Out of stock

9

BOLT (6X16)

09103-06240

1
Out of stock

10

CLAMP (L:45)

09404-06429

1
Out of stock

11

CLAMP (L:145)

09407-14407

1
Out of stock

12

CLAMP

09408-00266

5
Out of stock

13

BOLT

01547-0612A

4
Out of stock

14

BOLT

01550-0610A

2
Out of stock

15

BOLT (6X16)

09135-06027

2
Out of stock

16

PIN (4X13.8)

04221-04089

1
Out of stock
← Front Master Cylinder Hydraulic Unit →

More Brakes diagrams
