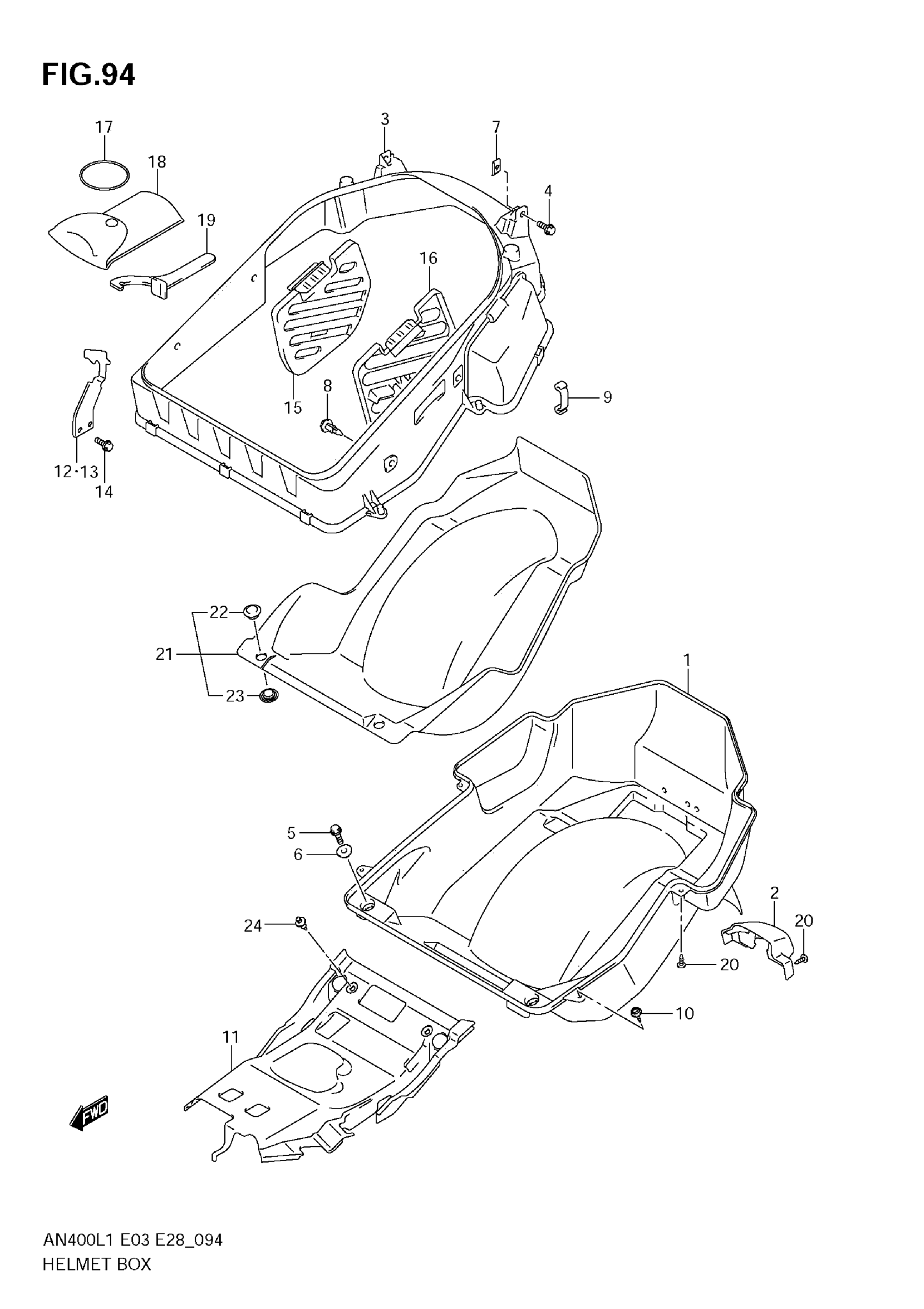

Suzuki AN400AL1 (2011) HELMET BOX Diagram

#

Description
Price

1

BOX, HELMET LOWER

92211-05H04

$397.67

2

COVER, HELMET BOX REAR

92215-05H00

Unavailable

3

BOX, HELMET UPPER

92221-05H03

$215.05

4

BOLT

01550-0616A

$1.97

5

BOLT (6X16)

09103-06240

$3.08

6

WASHER

09169-06076

$3.05

7

NUT, FR FENDER

53122-06G00

$5.18

8

CLIP

09409-07333

$2.31

9

CLAMP,HELMET BOX

92214-14G00

$4.18

10

CLAMP

09410-00073

$2.28

11

COVER, HELMET BOX FRONT

92212-05H00

Unavailable

12

HOLDER,HELMET RH

95720-05H00

Unavailable

13

HOLDER, HELMET LH

95730-05H00

Unavailable

14

BOLT

01550-0612A

$1.97

15

LID, BOX RH

41551-05H00

Unavailable

16

LID, BOX LH

41552-05H00

Unavailable

17

O RING (D:3.5,ID:85)

09280-85001

$3.58

18

TOOL ASSY This part replaces 09800-21047.

09800-21095

$58.18

19

CLAMP, WRENCH

09822-00005

$15.16

20

SCREW

03541-0516A

$1.49

21

MAT, HELMET BOX

92210-05H00

Unavailable

22

HOOK, MAT NO.1 (GRAY)

75115-80000-5RT

Unavailable

23

HOOK, MAT NO.2

75116-80000

$5.10

24

CLIP (BLACK)

09409-06322-5PK

$3.10
