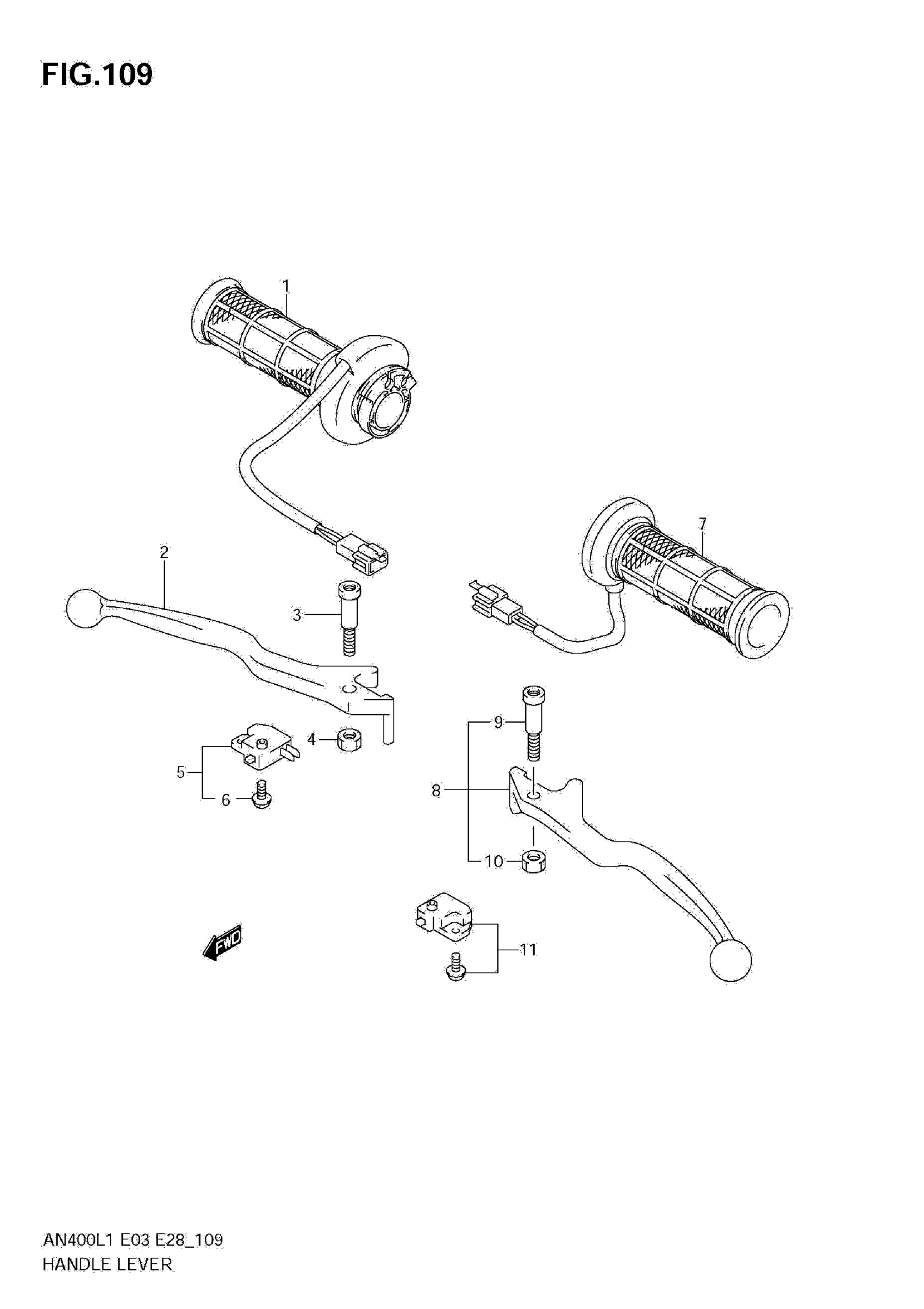

Suzuki AN400AL1 (2011) HANDLE LEVER (AN400ZA L1 E33) Diagram

#

Description

Price

1

HEATER ASSY, GRIP, THROTTLE

57110-05H10

Unavailable

2

LEVER, FRONT BRAKE

57421-14F00

$19.53

3

BOLT, PIVOT

57431-05D00

$13.20

4

NUT,LEVER PIVOT

57433-09F00

$3.56

5

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

HEATER ASSY, GRIP, LH

57210-05H10

$207.37

8

LEVER ASSY, REAR BRAKE

57500-14F10

Unavailable

9

BOLT, PIVOT

57431-05D00

$13.20

10

NUT,LEVER PIVOT

57433-09F00

$3.56

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14F11.

57560-14J02

$38.66
