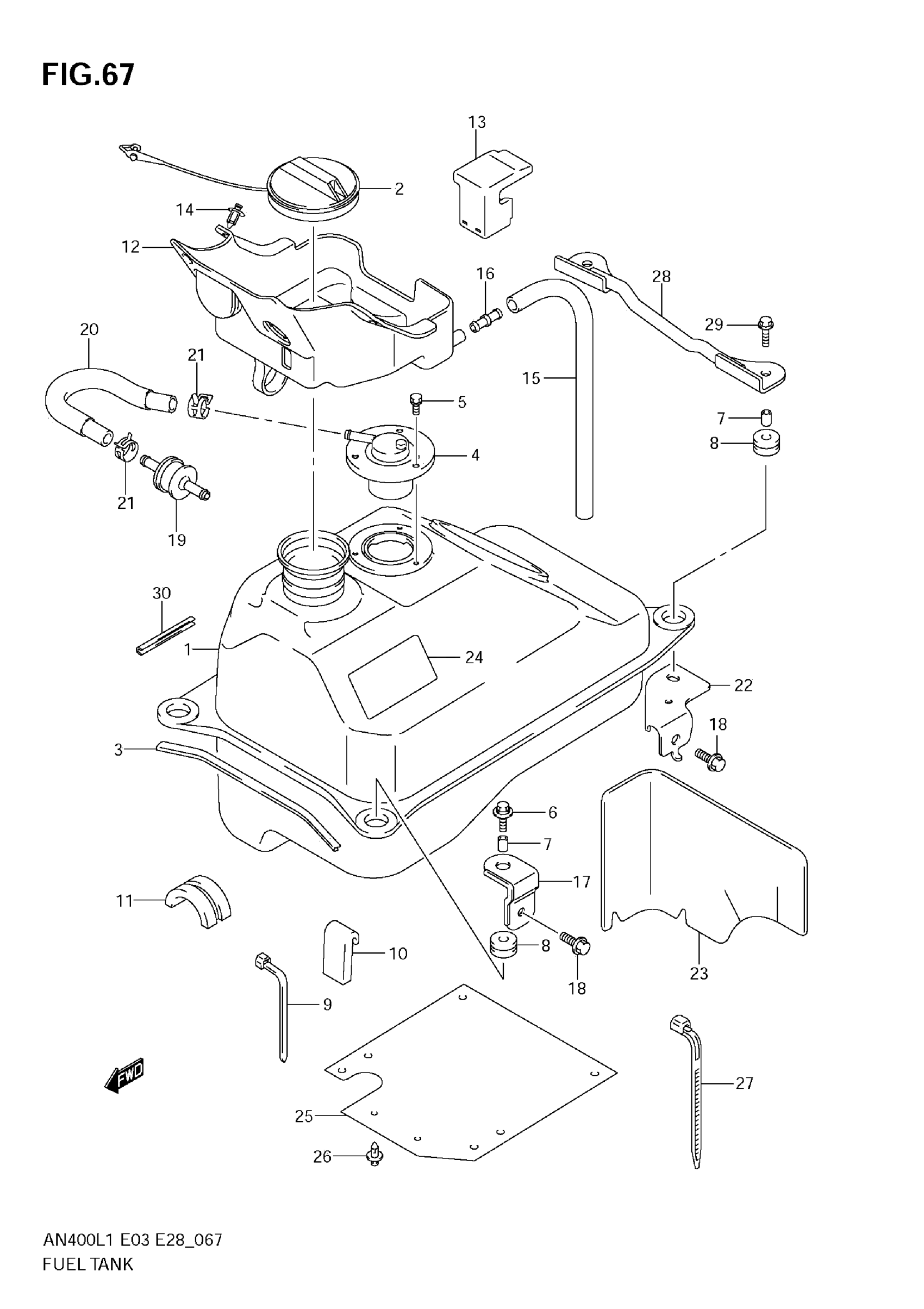

Suzuki AN400AL1 (2011) FUEL TANK (AN400ZA L1 E33) Diagram

#

Description
Price

1

TANK, FUEL This part replaces 44110-05H30.

44110-05H31

$531.33

2

CAP SET,FUEL TANK

44200-14840

$175.18

3

MOLDING, FUEL TANK FRONT | L:300->170

68241-04X50-00B

$27.30

4

VALVE,FUEL CUT

89480-52DA0

$63.60

5

BOLT

01570-0510B

$2.53

6

BOLT (6X25)

09116-06147

$3.20

7

SPACER (6.5X9X12.5)

09180-06267

$4.10

8

CUSHION,FUEL TANK SIDE This part replaces 44512-04F00.

44512-04F01

$3.86

9

CLAMP (L:248)

09407-25402

$4.64

10

CUSHION, TANK LOWER LH

44541-14F00

Unavailable

11

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

12

TRAY, TANK INLET

44260-05H00

Unavailable

13

CUSHION

44262-05H00

$15.97

14

CLIP

09409-07333

$2.31

15

HOSE(7X10.2X600 | L:600->540 This part replaces 09352-70103-600.

09352-70104-600

$5.63

16

JOINT

09367-08001

$4.17

17

BRACKET,FUEL TANK FRONT

44531-05H00

Unavailable

18

BOLT

01550-0612A

$1.97

19

VALVE,2 WAY CHECK

85451-75100

$46.78

20

HOSE, CHECK VALVE

44434-05H10

$38.37

21

CLIP (ID:10.5,H:8)

09401-10409

$2.26

22

BRACKET,FUEL TANK REAR LH

44560-05H10

$23.62

23

SHIELD,FUEL TANK HEAT

44191-05H00

Unavailable

24

TAPE,FUEL TANK SIDE

44192-05H00

$27.12

25

SHEET, FUEL TRAY

44193-05H01

Unavailable

26

CLIP (BLACK)

09409-06314-5PK

$2.78

27

CLAMP (L:165)

09407-18402

$2.19

28

BRACKET, FUEL TANK REAR

44500-05H00

Unavailable

29

BOLT

01550-0625A

$1.97

30

MOLDING,FUEL TANK SIDE | L:300->55

68241-04X50-300

$7.32
