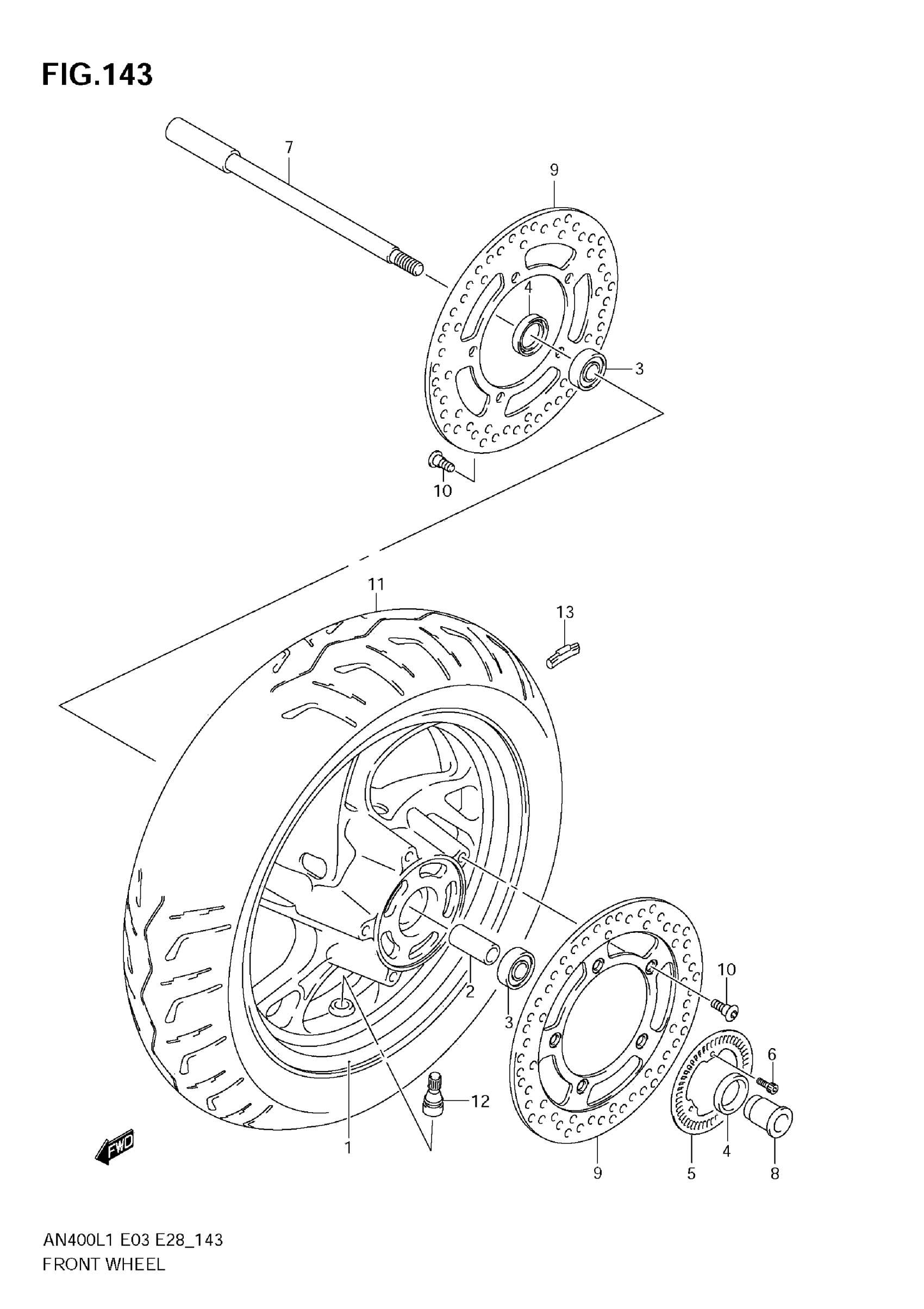

Suzuki AN400AL1 (2011) FRONT WHEEL (AN400ZA L1 E33) Diagram

WHEEL, FRONT (14M/CXMT3.00) (SILVER)

54111-05H10-YMY

Unavailable

SPACER (15.3X21.7X100)

09180-15070

$20.13

BEARING

08123-62027

$18.57

SEAL,OIL This part replaces 09285-22005.

09285-22007

$7.05

RING, SPEED SENSOR FR (50T)

54162-27G00

$140.15

BOLT

07130-0512A

$2.19

AXLE,FRONT

54711-05H00

Unavailable

SPACER, FRONT AXLE, LH

54751-14F00

$21.35

DISC, FRONT BRAKE

59221-14G20

Unavailable

BOLT (8X21)

09106-08160

$3.57

TIRE, FRONT (120/80-14M/C 58S)

55110-05H00

Unavailable

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

BALANCER, WHEEL NO.1

43222-73H10

$5.82

BALANCER, WHEEL NO.2

43224-73H10

$5.50

BALANCER, WHEEL NO.3

43226-73H10

$6.42
