2011 Suzuki AN400AL1 Front LEG Shield Diagram

← All diagrams

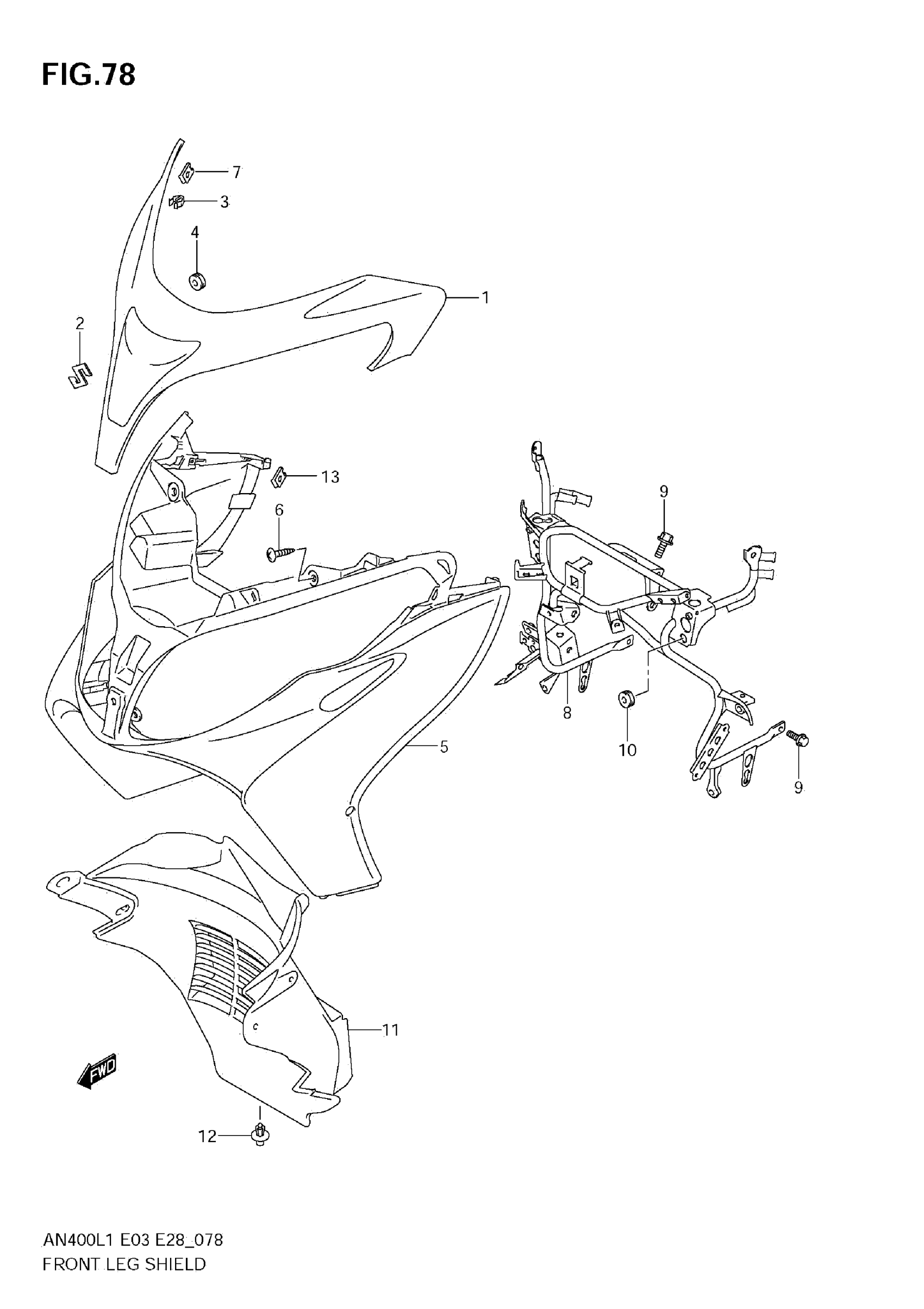

Find the part on the Front LEG Shield diagram for your 2011 Suzuki AN400AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki AN400AL1 Front LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRONT LEG (WHITE)

48130-05H00-YPA

1
Out of stock

1

COVER, FRONT LEG (GRAY)

48130-05H00-YHG

1
Out of stock

2

EMBLEM, "S"

68641-14G00

1
Out of stock

3

CLIP

09409-08326

2
Out of stock

4

CUSHION

09320-06026

1
Out of stock

5

SHIELD, LEG FRONT (WHITE)

48111-05H00-YPA

1
Out of stock

5

SHIELD, LEG FRONT (GRAY)

48111-05H00-YHG

1
Out of stock

6

SCREW (6X12)

09136-06004

4
Out of stock

7

NUT

09148-05038

2
Out of stock

8

BRACE, LEG SHIELD

48150-05H40

1
Out of stock

9

BOLT (8X12)

01550-0812A

4
Out of stock

10

CUSHION

09320-08018

2
Out of stock

11

SHIELD, LEG LOWER

48137-05H01

1
Out of stock

12

CLIP (BLACK)

09409-08308-5ES

6
Out of stock

13

NUT

09148-05038

6
Out of stock
