2011 Suzuki AN400AL1 Frame Diagram

← All diagrams

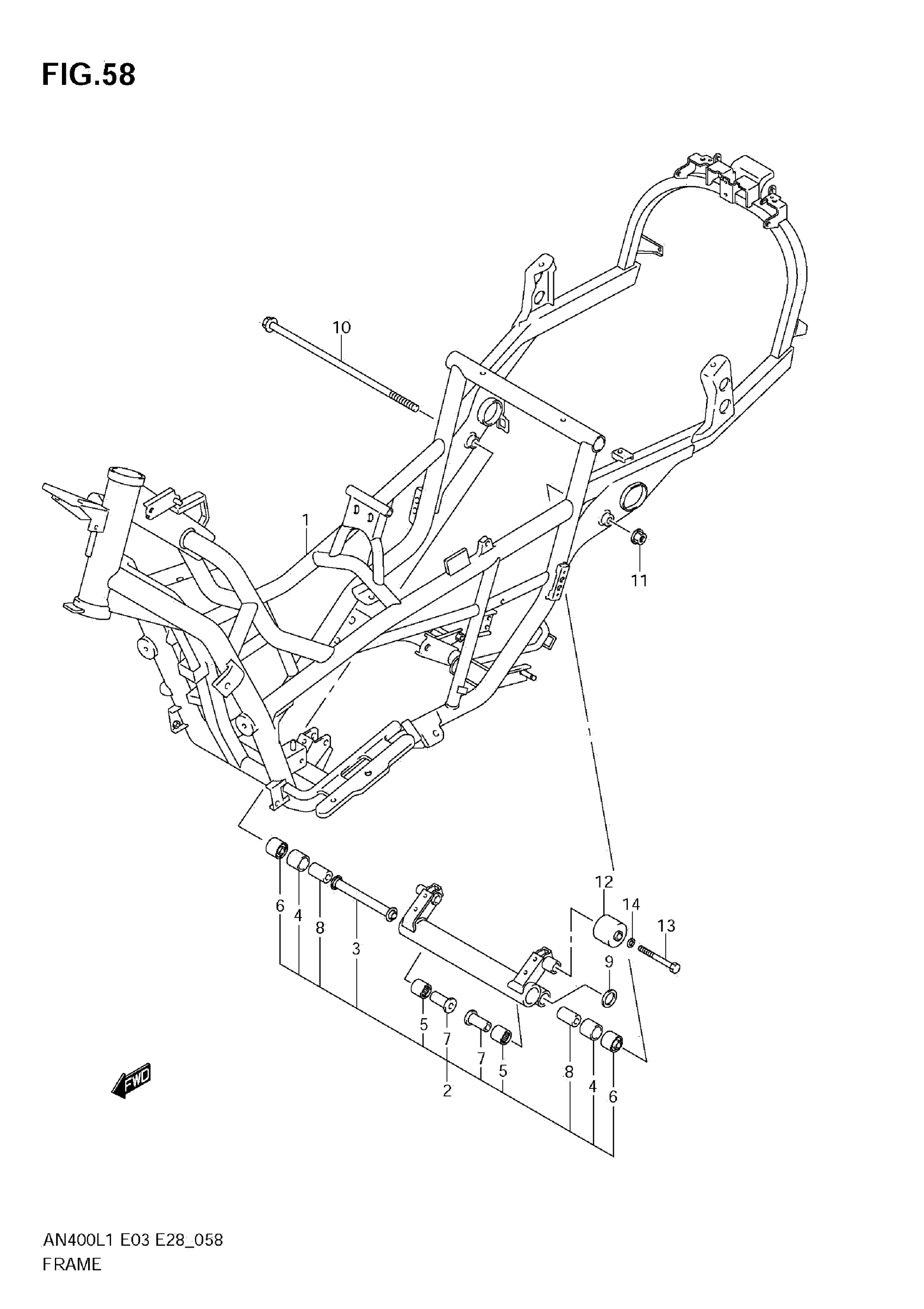

Find the part on the Frame diagram for your 2011 Suzuki AN400AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki AN400AL1 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

41100-05H30

1
Out of stock

2

BRACKET SET, CRANKCASE

41180-05860

1
Out of stock

3

SPACER, BRACKET

42610-05H00

1
Out of stock

4

BEARING (25X33X30)

09263-25063

2
Out of stock

5

.BEARING This part replaces 09263-20064.

09263-20120

2
Out of stock

6

BUSH

09319-12065

2
Out of stock

7

SPACER, ENGINE

41214-14F10

2
Out of stock

8

SPACER, BRACKET

41213-14F00

2
Out of stock

9

WASHER (12.5X35X3.2)

09160-12044

2
Out of stock

10

BOLT (12X440)

09103-12086

1
Out of stock

11

NUT

08319-3112A

1
Out of stock

12

CUSHION,SWING STOP

41185-14F00

2
Out of stock

13

BOLT (12X62)

09103-12065

—
Out of stock

14

WASHER

08322-0112B

2
Out of stock
← Frame Frame →
